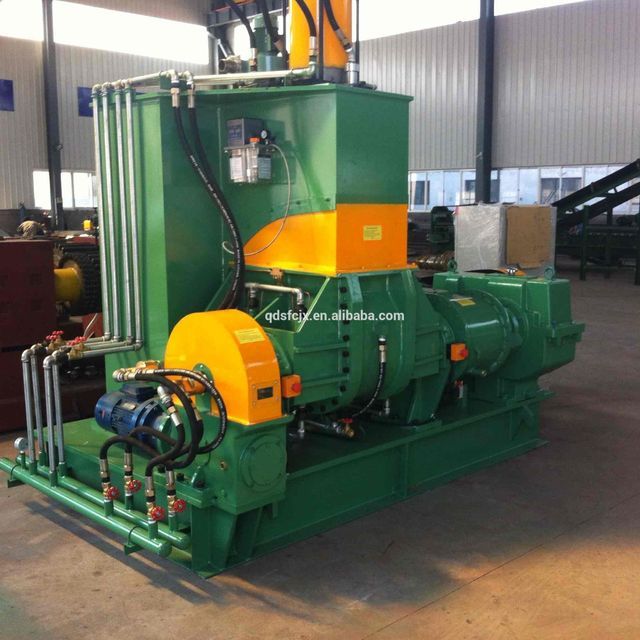

Fully automatic 55L rubber mixing Banbury machine

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

power supply:	electric	Mixing capacity (L):	55 liters
Showroom location:	not any	Compressed air pressure (MPa):	0.8MPa
strength:	75 kW	Video shipment inspection:	if
Voltage:	According to your requests	model:	X(S)N-55x30
Certification:	CE, SGS, ISO9001	Supply capacity:	50 sets per month
Core component warranty:	1 year	weight:	7.1 tons
Local service location:	not any	brand:	Securities Regulatory Commission
Packaging Details:	Plywood boxes or containers	payment terms:	L/C, T/T
Tilt motor power:	2.2kw	port:	Qingdao
Core components:	gearbox, motor	Applicable industries:	manufacturing plant
Warranty:	1 year	Year:	2019
Power (kW):	75 kW	Health status:	new
Main selling points:	automatic	Marketing Type:	normal product
Control type:	Programmable Controllers	Dimensions (LWH):	3230X1927X2958mm
After warranty service:	spare parts	color:	Customer demand
Mechanical test report:	if	Weight (kg):	7800 kg
Origin:	Shandong China	After-sales service provided:	Engineers can provide overseas service machinery, on-site installation, commissioning and training
capacity:	55L	Type of machine:	Rubber mixer

Fully automatic 55L rubber mixing Banbury machine

Product Description

application:

This second-hand rubber mixing Banbury machine It is mainly used for plasticizing and mixing natural rubber, synthetic rubber, recycled rubber and plastic, and foamed plastic, and for mixing materials of various degrees.

Construction Features:

1. The conditions are complete, the materials are mixed or plasticized under a certain pressure, the temperature is controllable, the production efficiency is high, and the quality is excellent

2. The design of the helix angle and lap length of the rotor blades is reasonable, so that the materials are evenly dispersed

3. Rubber mixing machineSecondSurfaces in contact with materials are hard chrome-plated and polished, corrosion-resistant and wear-resistant

4. The contact part between the rubber mixing machine and the material adopts a jacket structure, which has good effect of water cooling or steam heating, and meets the needs of plastic and rubber processing technology.

scope:

Model	X(S)N- 3x32	X(S)N- 5x32	X(S)N- 10x32	X(S)N- 20x32	X(S)N- 25x32	X(S)N- 35x30	X(S)N- 55x30	X(S)N- 75x30	X(S)N- 110x30	X(S)N- 150x30	X(S)N- 200x30
total capacity Mixing chamber (L)	8	15	25	45	55	75	125	170	250	325	440
Working volume Stirring chamber (L)	3	5	10	20	25	35	55	75	110	150	200
drive Motor power (KW)	5.5	11	twenty two	37	37	55	75	110	185	220	280
Tilt motor power(KW)	0.55	1.1	1.1	1.5	1.5	2.2	2.2	4	5.5	11	11
Tilt Angle (°)	140	140	140	140	140	140	140	140	140	135	135
Rotor speed (front/rear) (rev/min)	32/24.5	32/23.5	32/25	32/27	32/24.5	30/24.5	32/24.5	32/24.5	32/24.5	30/24.5	30/24.5
Cooling water pressure (MPA)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Dimensions(LxWxH)(mm)	2000x 1000x 2220	1850x 1200x 2280	2450x 1650x 2350	2675x 1650x 2560	2675x 1650x 2560	3200x 1900x 2950	3230x 1927x 2958	3325x 2615x 3105	4075x 2712x 3580	4250x 2750x 4106	4250x 3400x 4215
Gross weight (T)	~2	~2.1	~2.1	~4	~4.5	~6.3	~7.1	~9.5	~14.9	~19.5	~22.5

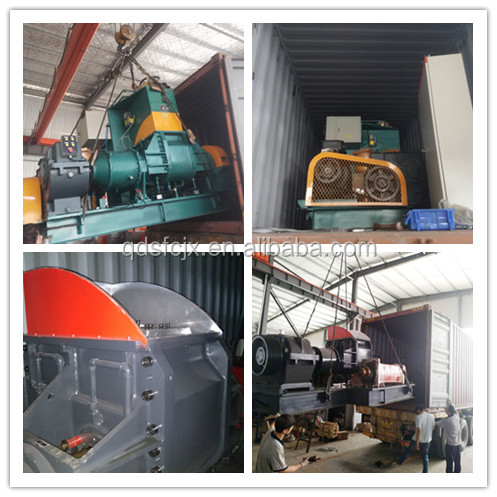

Packaging and Shipping

our service

1, Our engineers can design target machines for customers and send drawings to them for confirmation. We are always on the side of saving your cost.
2, During the production process, we will take pictures and send them to customers so that they can track the progress.
3. Packing list, commercial invoice, bill of lading and other documents will be sent after delivery.
4. We can provide English basic DWG, installation drawing, user guide, maintenance manual and parts drawing for free.

5, We provide overseas engineer service to help train your workers to operate the machine.
