Rubber Kneader (35L, 55L, 75L) / Banbury Internal Mixer
-
Supplier: Qingdao Toplit Industry Co., Ltd. -
Region: Shandong, China -
Contact: Mr Walley Wang -
Price: $11900.00 /set -
Min. Order: 1 set
| Video shipment inspection: | if | Total volume: | 175L |
| Mixing capacity (L): | 125 liters | model: | X(S)N-55*30 |
| Tilt Angle(°): | 140 | Core component warranty: | 1 year |
| weight: | 9200 kg | Health status: | new |
| Warranty: | one year | Voltage: | 380V, 415V or others, 380V, 415V or others |
| brand: | peak | Showroom location: | not any |
| Dimensions (L*W*H): | 3300*1900*2945mm | Wechat/whats app: | 0086-13963951313 |
| type: | Rubber kneader | Feeding method: | step back |
| Packaging Details: | Suitable for sea transportation, or according to your detailed requirements | Origin: | Shandong China |
| Power (kW): | 75 kW | Weight (kg): | 7800 kg |
| size: | 3300*1900*2945mm | strength: | 110KW |
| payment terms: | L/C, Western Union, T/T, Paypal | port: | FOB Qingdao, China |
| Core components: | PLC, motor | Package preview: | |
| usage: | Rubber/Plastic Hybrid | Applicable industries: | Manufacturing plant, rubber and plastic mixing |
| Compressed air pressure (MPa): | 0.8 MPa | Mechanical test report: | if |
| Main selling points: | competitive price | touch: | Judy at qdtoplit.com |
| Year: | 2023 | Model: | X(S)N-75*30 |
| Supply capacity: | 200 sets per year |

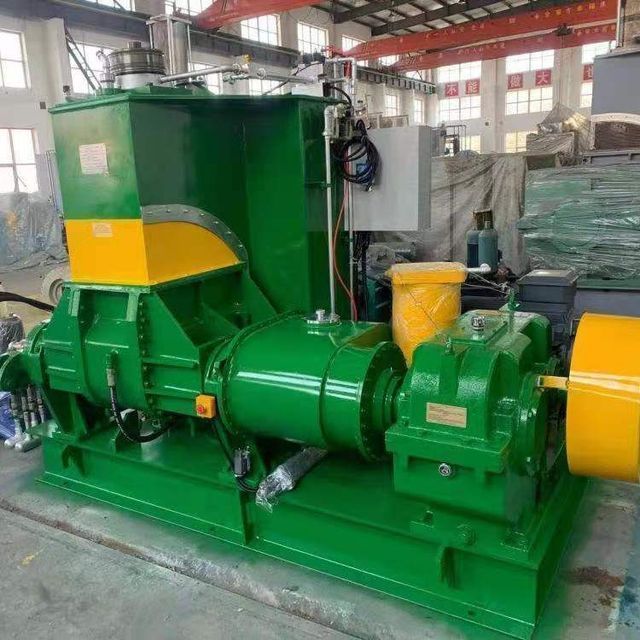

Rubber Kneader (35L, 55L, 75L) / Banbury Internal Mixer
WeChat/Whats App: 0086-13963951313
1. Technical specifications:
|
Model |
X(S)N- 35×30 |
X(S)N- 55×30 |
X(S)N- 75×30 |
X(S)N- 110×30 |
|
|
total volume mixing chamber |
large |
75 |
125 |
175 |
250 |
|
Working volume mixing chamber |
large |
35 |
55 |
75 |
110 |
|
main motor power |
kilowatt |
55 |
75 |
110 |
185 |
|
Tilt motor power |
kilowatt |
4.0 |
4.0 |
4.0 |
5.5 |
|
slope |
° |
140 |
140 |
140 |
140 |
|
spinning speed Rotor (Front/Rear) |
rpm |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
|
pressure compressed air |
MPa |
0.6-0.8 |
0.6~0.8 |
0.6~0.8 |
0.6~0.8 |
|
Cooling water pressure (compound rubber) |
MPa |
0.2-0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
|
Heating steam pressure (plastic mixing) |
MPa |
0.5-0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
|
total measurement |
mm |
3100x1300x2450 |
3300×1900×2900 |
3760×2143×3135 |
4075×2712×3580 |
2. Features:
1) Motor: Danbeilong brand
2) Reducer: Jiangsu Kaibo hard tooth surface reducer
3) Electrical components: Chint brand, Omron PLC
4) Hard chrome plating thickness of mixing chamber and rotor: 0.1mm
5) Mixing chamber: 16MN plate
6) Rotor: 2 fins, the corners and end faces are made of wear-resistant hard alloy surfacing, polished after grinding and hard chrome plating.
7) Sealing method: outer copper sealing, the most advanced sealing method.
8) Feeding method: rear feeding, front discharging
9) Hydraulic drive chamber tilting system
10) Feeding door: automatic
Available models: 10L, 20L, 35L, 55L, 75L, 110L, 150L, 200L can be produced on request.
1). Delivery time: within 20-30 days after receiving the order

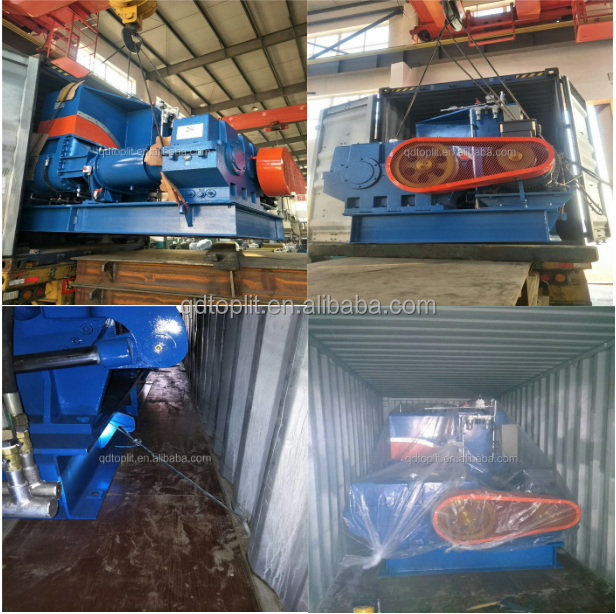

2). Packing: The host is without packing, it is fixed in the container, and the rest is packed in wooden boxes.
3). Warranty time: one year
4). Payment method: T/T + 30% prepayment of the balance before shipment.
-
