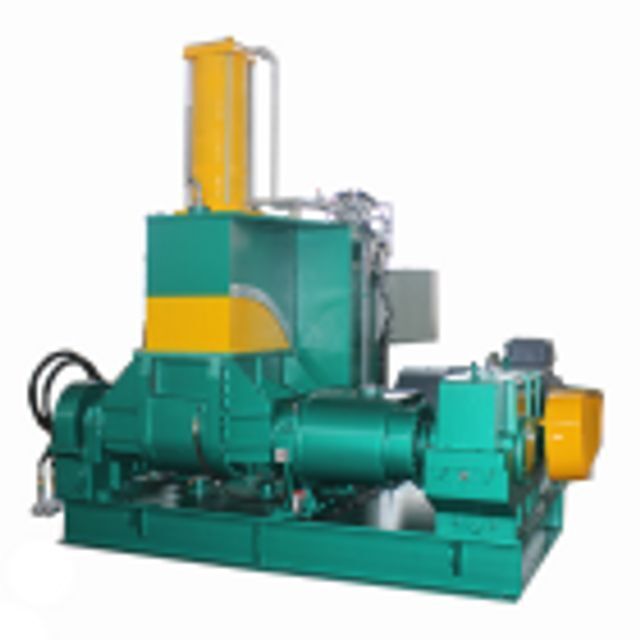

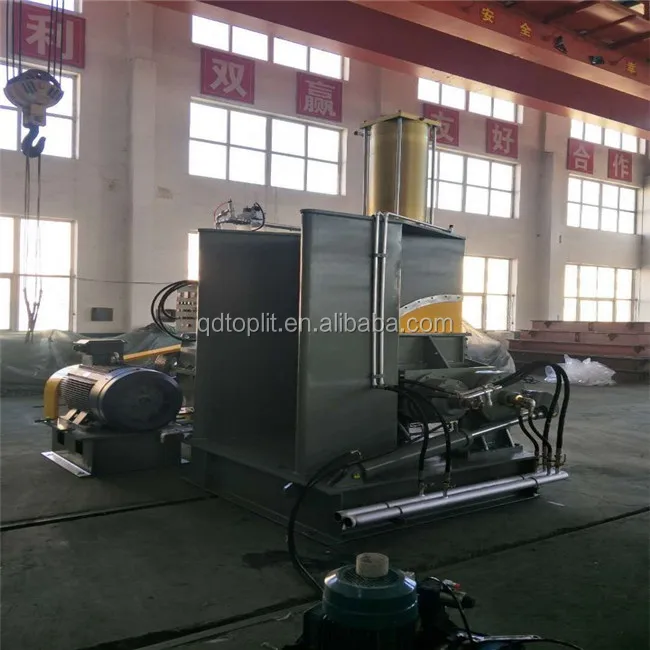

35L, 55L, 75L Rubber Kneader Machine For Sale

Supplier: Qingdao Toplit Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Walley Wang
Price: $16999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Year:	2021;	Condition:	new;
Compressed Air Pressure(MPa):	0.8 MPa;	Showroom Location:	None;
Port:	FOB Qingdao,China;	Place of Origin:	Shandong, China;
Size:	407527123580mm;	Warranty of core components:	1 Year;
Packaging Detail:	suitable for long-sea transportation,or according to your detailed requirements;	Certification:	CE;
Feeding Mode:	Back;	Video outgoing-inspection:	Provided;
Motor power:	110KW;	Local Service Location:	None;
Weight (KG):	9100 KG;	Key Selling Points:	Long Service Life;
Dimension(LWH):	407527123580mm;	Wechat(whats app):	0086-13963951313;
Tilting power:	4.0kw;	Voltage:	220V,380V,415V or others,380V,415V or others;
Machinery Test Report:	Provided;	Application:	rubber/plastic mixing;
Payment Terms:	L/C,Western Union,T/T,paypal;	E-mail:	Judy at qdtoplit dot com;
Type:	Rubber Kneader;	Core Components:	PLC,Motor;
Marketing Type:	New Product 2020;	Model Number:	XSN-75L;
Model:	XSN-75*30;	Warranty:	one year;
Tilting Angle(°):	140;	Supply Ability:	300 Sets per Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Motor grand:	Dangdong Beilong;
Brand Name:	TOPLIT;	Applicable Industries:	Manufacturing Plant,rubber & plastic factory;
Mixing Capacity(L):	175 L;	Package Preview:	;
Power (kW):	110 kW;

35L, 55L, 75L Rubber Kneader Machine For Sale

Wechat / Whats App:0086-13963951313

Product Description

Technical spec.:

Model		X(S)N- 35×30	X(S)N- 55×30	X(S)N- 75×30	X(S)N- 110×30
Total volume of mixing chamber	L	75	125	175	250
Working volume of mixing chamber	L	35	55	75	110
Main motor power	KW	55	75	110	185
Tilting motor power	KW	4.0	4.0	4.0	5.5
Tilting angle	°	140	140	140	140
Rotation speed of rotor(front/rear)	r/min	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water(rubber mixing)	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor(plastic mixing)	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size	mm	3200×1900×2945	3300×1900×2900	3760×2143×3135	4075×2712×3580

Main Features:

1) Motor:Dandong Beilong brand

2) Speed reducer: hard-teeth reducer from Jiangsu Kaibo

3) The electric elements: CHINT brand, OMRON PLC

4) The thickness of hard chrome plated for mixing chamber & rotors: 0.1mm

5) Mixing chamber: 16MN plate

6) Rotor: 2 wings, the comers ridges and end surface are bead welded with abrasion resistant hard alloy to be polished after being ground and plated with hard chromium.

7) Sealing type: outside copper seal , the most advanced seal method.

8) Feeding type: rear feed, front discharge

9) Hydraulic driven chamber tilt system

10) Feeding gate: automatic

Structures:
Consists of main machine, loading materials device, unloading materials device, oil storage tank, electromagnetic heating cabinet, electric control cabinet, and so on

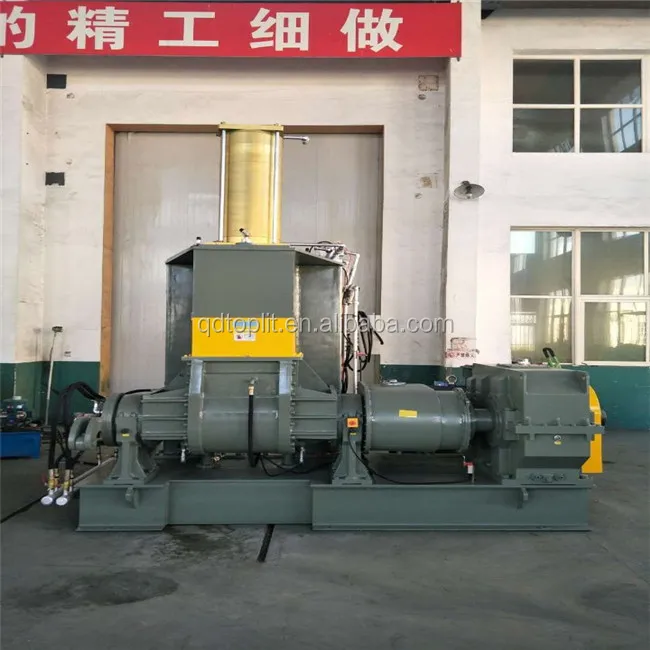

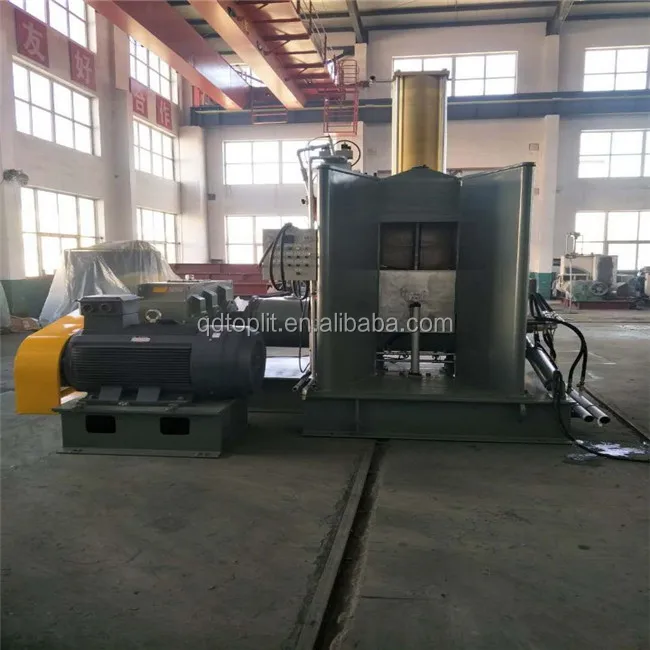

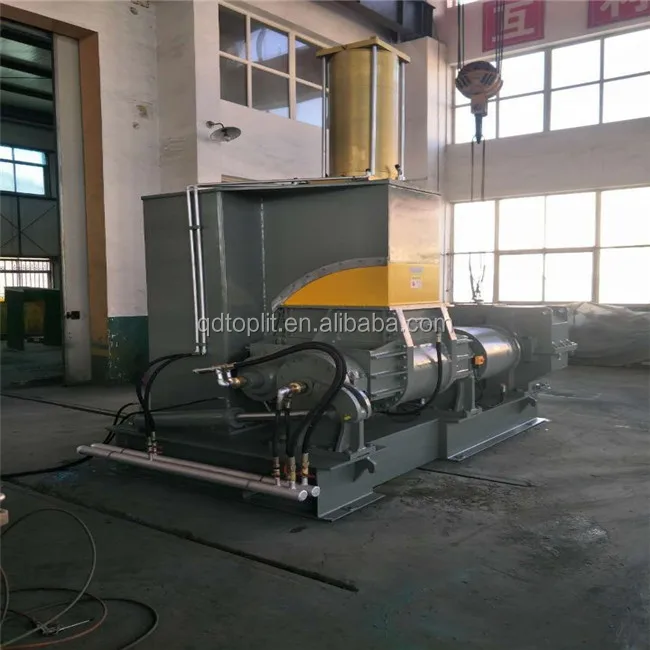

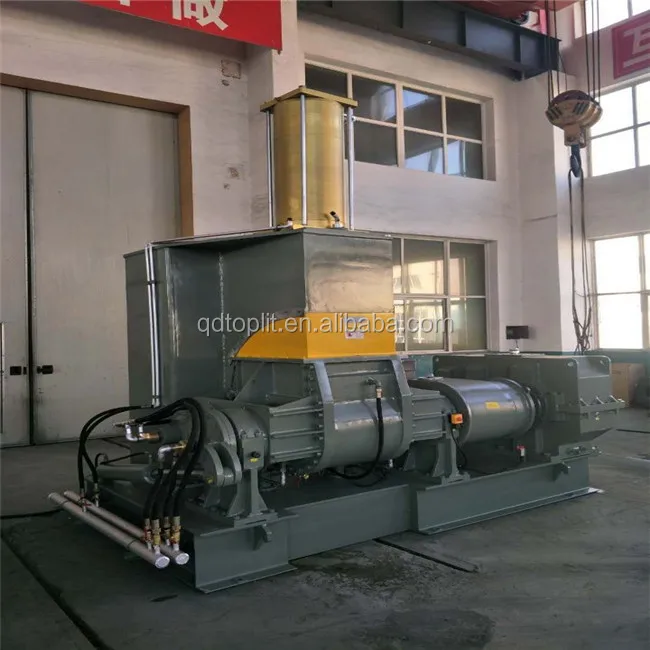

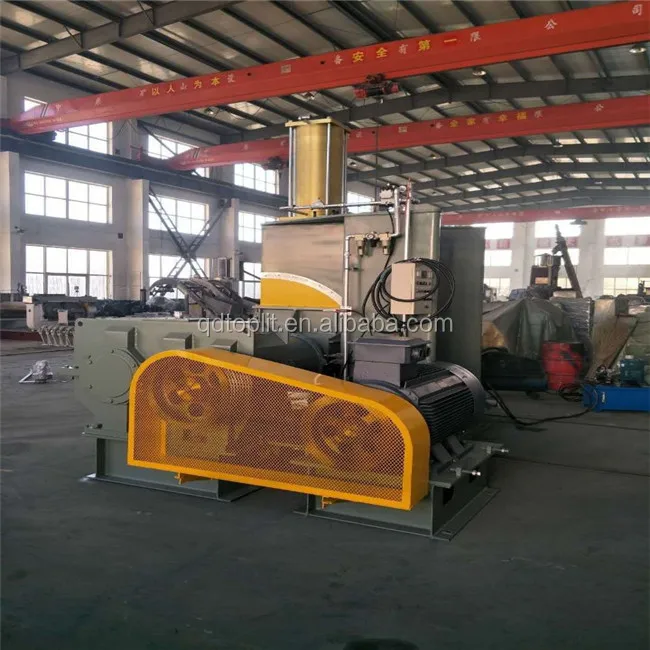

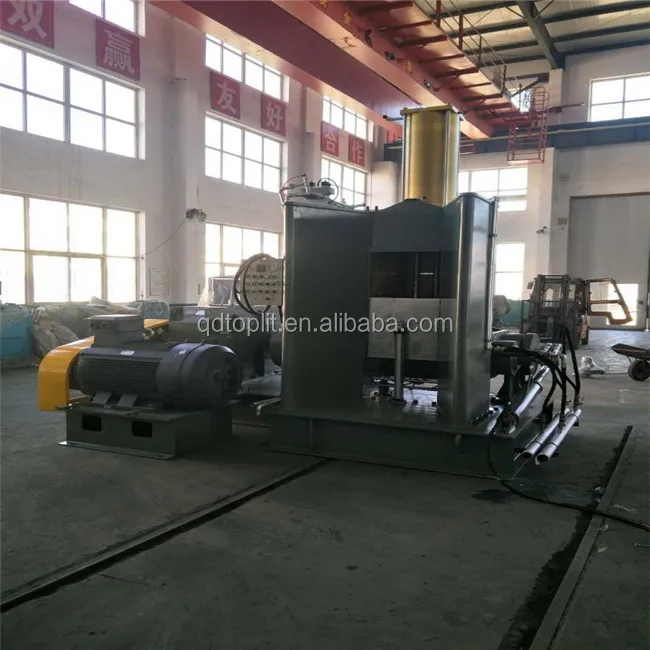

Detailed Images

1.Pneumatic Control System

Controlled by PLC instruction, a bi-directional air cylinder make the ram up or down.In case that overload occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.

2.Electric Control System

Adopt imported PLC device and electric control components or imported technology products are adopted in the electric control system as to raise control reliability.

3.Tilting Mechanism

It consists of a rotor with brake,cycloidal gear reducer,TP type worm and worm gear,etc.it is able to actuated the mixing chamber tilting by 140 around the front rotors.

4.Mixing Chamber

It consists of a " W" shape body and two side boards made of high quality steel plates by means of extrustion forming and welding,which are jacked to take the flow of cooling water or steam.it is plated with hard chrome on its internal walls.

Packaging & Shipping
