Mini Rubber Sheet Rolling Machine, Rubber Silicone Mixing Machine, Rubber Rolling Machine

Supplier: Dongguan Right Instrument Co., Ltd.
Region: Guangdong, China
Contact: Mr Forrest Young
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Mini rubber sheet rolling machine, rubber silicone mixing machine, rubber rolling machine are packed in poly bags, and then packed as export safe wooden boxes	Core components:	PLC, motor
Roller width:	200mm	port:	Shenzhen
Package preview:		Roll ratio (front/rear):	1:1.13
Stirring capacity:	1 kg	Video shipment inspection:	if
Health status:	new	Roller Hardness:	50~60HRC
Origin:	Guangdong, China	Marketing Type:	New Products 2021
Drum Diameter:	65,120,160,200,250mm	Core component warranty:	2 years
Warranty:	24 months	Year:	2020
Roller spacing:	0.1~8mm adjustable	Power (kW):	1.5KW
Temperature Accuracy:	±3℃	brand:	correct
Supply capacity:	300 laboratory small rubber hot rolling mills per month	cooling method:	air cooled
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Voltage:	220V/380V
Showroom location:	not any	Front roller speed (rpm):	1 - 20 rpm
Weight (kg):	80 kg	Picking device:	SUS304 stainless steel hopper
Reel Diameter(mm):	65mm	Coil Length(mm):	200mm
Mechanical test report:	if	type:	Open mill
Drum temperature:	Room temperature~250℃	heating method:	Electric heating
Main selling points:	automatic	Dimensions (LWH):	650370570mm
Applicable industries:	Rubber and plastic mixture

Product Description

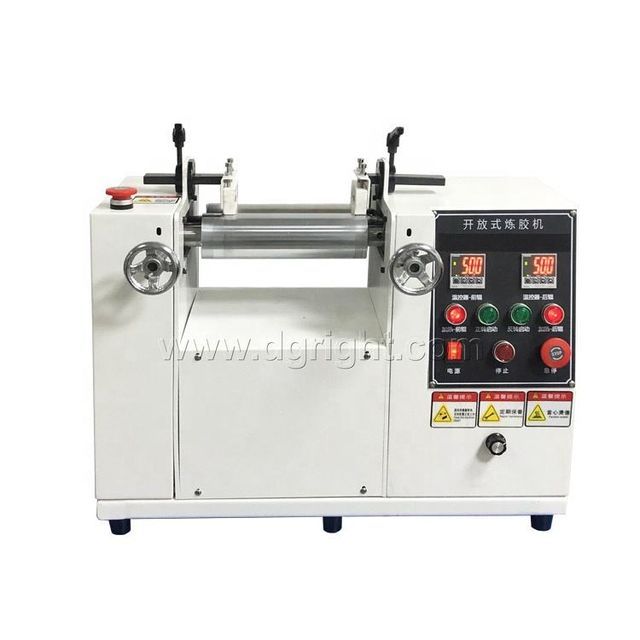

RT-110D Small Rubber Silicone Two Roller Mill

Specification

sample project	RT-110D
Roller Diameter (metric/inch)	65mm (can be customized)
Roll width	200mm (can be customized)
Stirring capacity	1kg (or as required);
drum temperature	Room temperature~250℃
heating method	Electric heating
temperature accuracy	±3℃
Temperature Controller	PID control
Drum speed	frequency control
Roller ratio Adjust as required	1:1.13
Roller hardness	50~60HRC
Roll processing	mirror polished chrome
Roller pitch	0.1~8mm adjustable
spacing display method	Calibration/Digital Display
safety devices	crash stop
Safety Device Number	2
special function	emergency stop reverse
Motor Power	1.5KW
voltage	φ3 AC380V
aspect	650mm x 370mm x 570mm(LWH)
weight	80 kg

Guideline:

GB 6038-2006 Rubber composition testing, mixing and vulcanization equipment and operating procedures. GBT 13577-1992 Rubber and plastic mills HGT 2149-2004 Test methods for mills and plastic mixers JBT 53113-1999 Quality classification of mill products

Our advantage

feature:

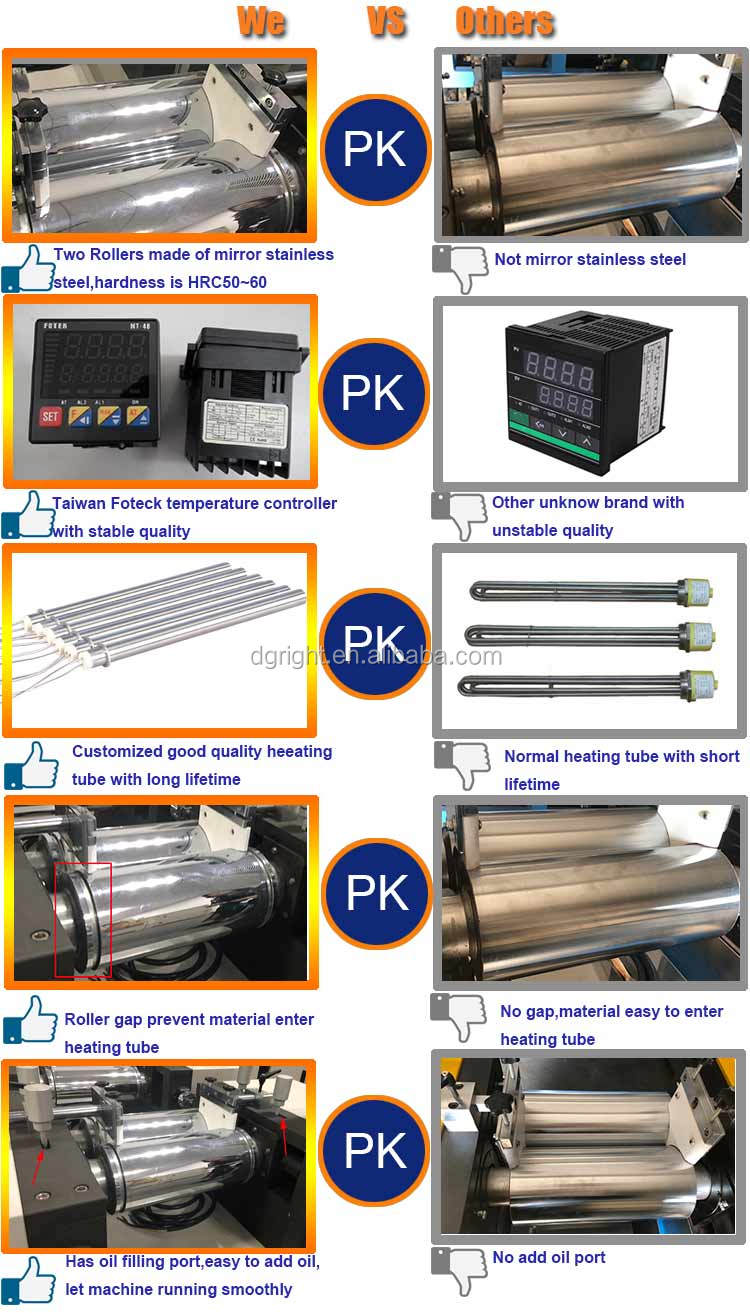

1.The core technology comes from Taiwan, and the main components are from French Schneider.

2.Full floor, easy to install, the drive mode is single-axis output, which ensures high torque, imported bearings reduce friction, ensure power saving, low noise, and the rubber thickness is uniform and parallel and controllable.3.The roll is made of vanadium-titanium alloy chilled cast iron, the roll hardness (HRC) is 50-60, the surface is hard and wear-resistant, and durable. The inner cavity of the roller is finished to ensure rapid and uniform cooling of the roller body.

4.This machine adopts manual adjustment mode, with precise thickness control, convenient operation and high safety factor.

5.The machine is equipped with emergency brakes, when an emergency occurs, there are emergency switches at the four corners, and multiple brake systems, which are convenient for quick parking.

6.The transmission device adopts a hard tooth surface reducer with compact structure, high transmission efficiency and low noise.

7.The automatic oil injection device ensures the long-term oil supply of the transmission part and makes up for the serious consequences of the pump forgetting to supply oil to the damaged part.8.Driven by two motors, it realizes any speed ratio of the front and rear rollers and is easy to operate;9.One-piece disc, easy to install. The drive mode is single-axis output, ensuring high torque, imported bearings reduce friction, save electricity, reduce noise, and the rubber thickness is even and parallel and controllable.10.The transmission device adopts double-connected double-frequency conversion control, which has low noise and long service life.

A variety of styles are available, and the size of the coil can be customized to meet the different needs of customers.
