Sigma Mixer for Butyl Rubber/ Kneader Exruder/Sigma Mixer extruder

Supplier: Nanjing Mixer Rubber And Plastic Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jackie Ji
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Mixer;	Power (kW):	37 kW;
Certification:	CE ISO EAC;	Mixing Capacity(L):	500 L;
Voltage:	380V 220V;	Port:	Shanghai;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	10 Set/Sets per Month;
After-sales Service Provided:	Engineers available to service machinery overseas;	After-sales Service Provided:	Field installation, commissioning and training;
Condition:	New;	Packaging Detail:	Plastic film packed in container or wooden case;
Applicable Industries:	Manufacturing Plant;	Compressed Air Pressure(MPa):	0 MPa;
Place of Origin:	Jiangsu China;	Weight (KG):	5000 KG;
Warranty:	1 year;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Showroom Location:	Turkey;	Key Selling Points:	Multifunctional;
Model Number:	NH-500;	Local Service Location:	Turkey;

Product Description

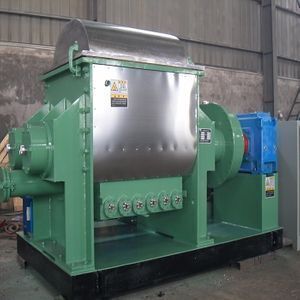

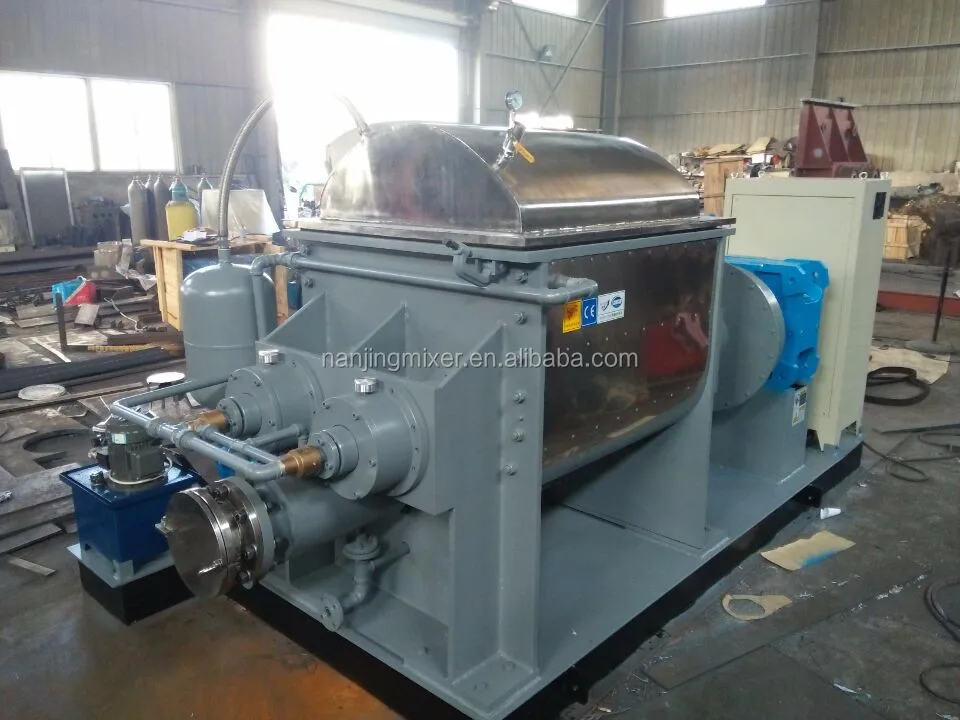

Vacuum Sigma Kneader for Silicone/Z Blade Sigma Mixer for BMC/Sigma Mixer for Butyl Rubber:

All the Sigma Kneader / Mixer& Z Blade Kneader / Z Blade Mixer we make are heavy duty structure.

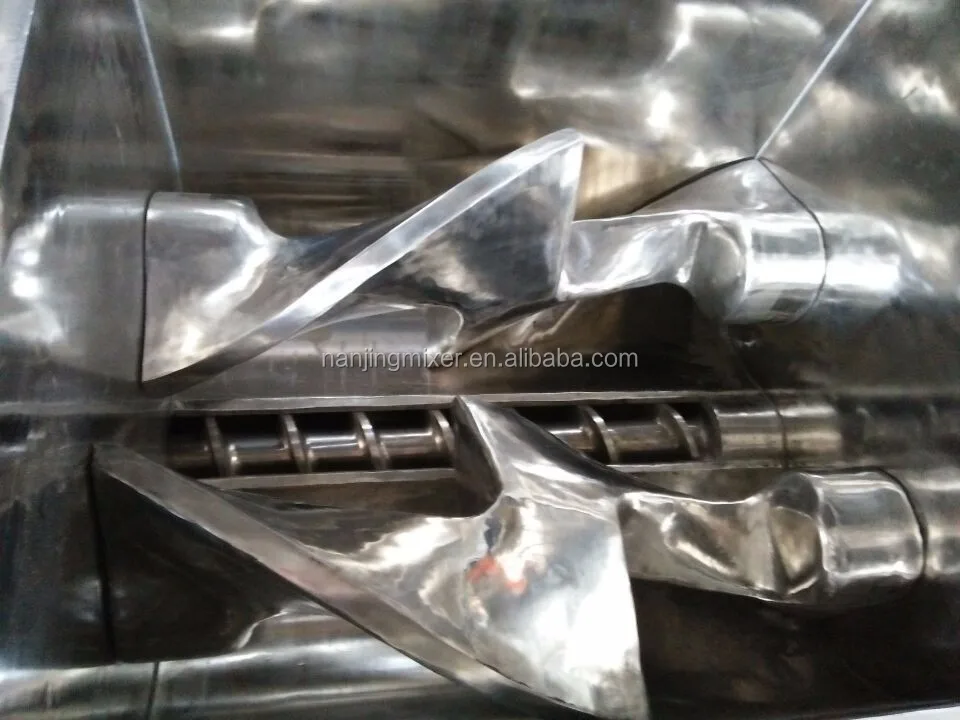

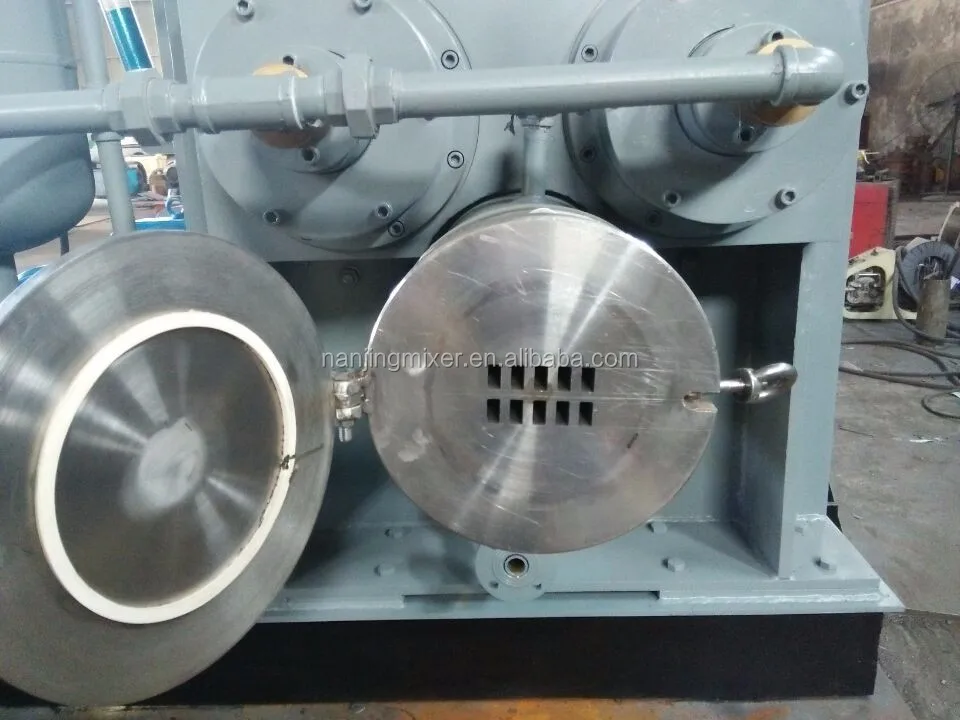

The machines are widely used for mixing in the fields of: chemical, rubber, plastic,silicon, gum,tooth paste,dough,hot melt adhesive,soap,paint, printing ink, carbon, food stuff, medicine,BMC,CMC,ceramic paste,starch,etc, Mixing room and agitating blades are all made by stainless steel, the jacket of mixing room can be designed for electric oil heating,steam heating or water cooling. Discharge ways include hydraulic tilt, screw extruder and bottom valve discharge etc.

Specification

Sigma Kneader:

Model	Total Volume(L)	Working Volume(L)	Motor Power (KW)	Discharge way	Cooling/heating
NH - 50	50	30	2.2 ~7.5	Hydraulic tilt	Steam/hot water /oil
NH - 100	100	60	3 ~ 11	Hydraulic tilt	Steam/hot water /oil
NH - 200	200	120	5.5 ~15	Hydraulic tilt	Steam/hot water /oil
NH - 300	300	180	7.5 ~ 22	Hydraulic tilt/bottom drop	Steam/hot water /oil
NH - 500	500	300	11 ~37	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 1000	1000	600	18.5 ~75	Hydraulic tilt/bottom drop	Steam/hot water /oil
NH - 1500	1500	900	22~132	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 2000	2000	1200	37~160	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 3000	3000	1800	55~185	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 4000	4000	2400	75~220	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 5000	5000	3000	90~250	Hydraulic tilt/bottom drop	Steam/hot water/oil
NH - 6000	6000	3600	132~250	Hydraulic tilt/bottom drop	Steam/hot water/oil
