410*1350 PVC hard film rolling machine extrusion calendering mixing whole production line
- 480000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| PVC Calender: | Whole production line | Weight (kg): | 13000kg |
| payment terms: | L/C,Western Union,T/T | Applicable industries: | factory, other |
| Number of rollers: | 5 volumes | product name: | Extrusion Calendering Mixing PVC Rigid Film Rolling Machine |
| Packaging Preview: | Health status: | new | |
| Core Components Warranty: | 1 year | Key words: | Extrusion Calendering Mixing PVC Rigid Film Rolling Machine |
| Supply capacity: | 5 sets per quarter | Function: | for Christmas or other plastic industries |
| Warranty: | 1 year | Marketing Type: | New Products 2021 |
| brand: | long star | Showroom location: | not any |
| Voltage: | 380 volts | Main selling point: | Automatic professional whole production line |
| Core components: | PLC, engine, motor | Control System: | programmable logic controller |
| application: | PVC film/PVC sheet | place of origin; place of origin: | China Shanghai |
| port: | Yantian, Shenzhen, China | Mechanical test report: | if |
| Packaging Details: | Export standard wooden box | strength: | 295kW |
| year: | 2021 | Dimensions (L*W*H): | 2700*2300*2800 |
| style: | 400*1350 Five rolls | color: | customer request |
| Video external inspection: | if | Power (kW): | 295kW |
410*1350 PVC hard film rolling machine extrusion calendering mixing whole production line
Product Description
Product parameters
Longstar 5 Roll Rigid PVC Film Calender | ||
5 rolls of rigid PVC film size | φ400×1350mm | |
Arrangement pattern | L shape | |
Roller line speed | 7-30m/min | |
Roller distance range | 0 ~ 30 mm | |
Thickness of rolled products | 0.10 ~ 0.80 mm | |
Maximum width of rolling stock | ≤1000mm | |
main motor power | 15KW (1#, 5#)/18.5KW (2#, 4#)/22KW (3#) drum | |
size | 2700*2300*2800 mm | |

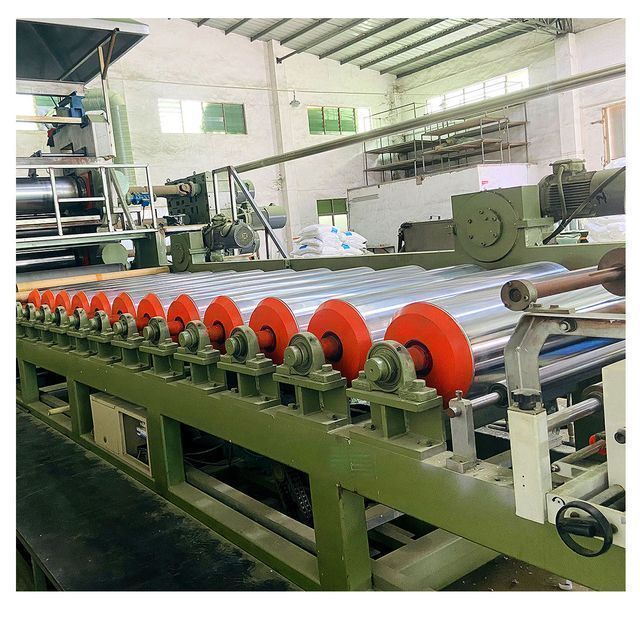

Product display
