High efficient mineral tailing mining thickener for metal industry

Product details
Life:More than 35 years;Payment Terms:T/T;
Certification:CE, ISO 9001, IS0 14001;Place of Origin:Shandong China;
Packaging Detail:Export package;Material:Customized;
Dimension(L*W*H):Customized;Application:Solid-liquid separation;
Warranty:2 years;Certification:CE, ISO 9001, IS0 14001;
Power(W):2000w;Production Capacity:Customized;
Place of Origin:Shandong, China (Mainland);Payment:L/C or T/T;
Application:Solid-liquid separation;Motor Type:AC Motor;
Condition:New;After-sales Service Provided:Overseas service center available;
Supply Ability:200 Set/Sets per Year;Product name:High efficient mineral tailing mining thickener for metal industry;
Port:QINGDAO;Control:Automatic;
Type:Mining Thickener;Capacity:customized;
Packing:Seaworthy package;Brand Name:Toncin;

High efficient mineral tailing mining thickener for metal industry



our products





Product Description

Our company take the thick technology of the British sunny corporation as the main body, introducing and digesting foreign advanced thickener technology on the basis of conventional general thickener. New type high rate thickener introduces the function of flocculant assisted dehydration, at the same time, according to the requirements of the application in different industries, by optimizing the structure of the equipment and flocculant assisted dehydration, newly developed new type thickener has the advantages of concentrating efficiency greatly accelerated, Throughput enlarged and high underflow concentration; It has been widely used in the dewatering of various metal and non-metallic ores, and the slurry solid-liquid separation in Introduction.



Model

Concentration tank

Sediment area
(m2)

The lifting height of rake(mm)

Rake rotating speed(r/min)

Motor Power
(KW)

Diameter(m)

Depth(m)

GNZ-3

3

2.5

10

300

0.1-0.2

3+1.1

GNZ-6

6

3.0

28

300

0.1-0.2

4+1.5

GNZ-9

9

3.2

63

300

0.1-0.2

4+1.5

GNZ-12

12

3.5

110

300

0.1-0.2

4+1.5

GNZ-18

18

4.4

254

600

0.1-0.2

7.5+2.2

GNZ-20

20

4.4

310

600

0.1-0.2

7.5+2.2

GNZ-24

24

5.2

452

600

0.05-0.2

7.5+2.2

GNZ-30

30

5.2

707

600

0.05-0.2

11+3

GNZ-38

38

5.5

1134

600

0.05-0.2

15+4

GNZ-45

45

5.5

1590

600

0.05-0.1

37+4

GNZ-53

53

6.0

2206

600

0.05-0.1

37+4

GNZ-60

60

6.0

2826

600

0.03-0.1

45+5.5

GNZ-70

70

6.8

3846

600

0.02-0.05

45+5.5

GNZ-85

85

7.8

5671

600

0.02-0.05

45+5.5



Note:

1. The above parameters are only for reference. As the settlement performance of materials is relatively large, the specific parameters are subject to the design drawings provided by our company.

2. Our company can design thickener with different models according to the requirements of users.



Our Advantages



Main Features



This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized.  Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

1. High efficiency of concentration and  scraping , which is three to five times than common thickener.

2.Excellent  feed system——high-rate feed well:

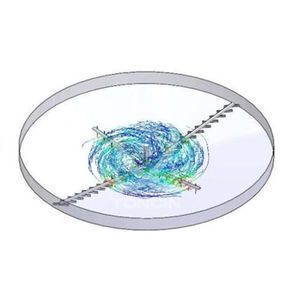

a. The feed well  makes the feed degas and have the energy dissipation, and it has tangential feeding.
b.Add the flocculant reasonably, and improve the efficiency .
c.It is equipped with distribution plate, which can take advantage of the effective area of the tank reasonably.

3. Driven lifting system with overweight design and large torque design can ensure the normal operation of the device. The thickener can not shut down in the extreme conditions, improving the efficiency of the device.

4.It adopts spiral design of rake teeth logarithm, and we can design rake teeth density according to material performance, which can improve the efficiency of scraping.

5.It has advanced thickener control system , automatically lifting rake, flocculant feeding, and automatically controlled underflow discharging pump





product details



1.Design of main driving and rake lifting gear
1)Driving framework and chassis are made according to heavy type transmission device,
running is stable and reliable.

2)full automatic rake lifting.

3)Star transmission,the max running torque is 5000,000Nm.The designed torque of driving
transmission Is designed according to following standards.
a.Running torque value: 33% of the designed torque.
b.High torque alarm: 50% of the designed torque.
c.Rake rising; 60% of the designed torque.
d.Rake decreasing: 40% of the designed torque.
e.The designed torque value of mechanical device: 150% of the designed torque.

2 Control system
Site control and remote control are combined,DCS control points are supplied.
1,PLC control,overloading protection.
2,Material discharging terminal is set up with mud layer pressure sensor to control rotation

 and mud discharging by pump.



Product Application

 GNZ thickener is a new High-rate thickener with central-drive, automatic lifting rake that we have developed based on foreign technology .It is widely applicable to treatment of various industrial feed pulp, like coals, metal ore dressing water, metallurgy, chemical, tailings treatment, environmental protection etc.



Packaging & Shipping

 Export package:We use standard export package or as you required.

Shipping:We will send our products within 2 months.

Transport way :By sea or by air.



Company Information



Nuclear Industry Yantai Toncin Group Co.,Ltd. completed the restructuring and reorganization in June 2016, integrated 13 enterprises of filter industry, advanced manufacturing industry and new materials industry, set up the group company, formed the industrial pattern of common development of filtration separation machinery, new material industry and high-end equipment industry. Toncin group's enterprises mainly include Yantai Hejing Ceramic New Materials Co., Ltd., Yantai Sunny Rubber Co., Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., etc, and Nuclear Industry Yantai Toncin Group Co. Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., Yantai Xinghe Filtration Technology Co. Ltd. are belong to the solid-liquid separation equipment and technology filed, and their main products are solid-liquid separation products; Yantai Hejing Ceramic New Materials Co., Ltd. is an important crucible R & D and production enterprise in china; Yantai Sunny Rubber Co., Ltd. independently research and developed rubber dam, gas shield dam and other products, which are widely used in urban water conservancy construction, the technology level has reached the international advanced level. Toncin group currently own 5 state-level high-tech enterprises, 3 provincial-level enterprise technology centers, 1 provincial-level industrial design center, maintain 177 valid patents, including 38 invention patents, presided and participated in the formulation of more than 10 national standards and industry standards of the Horizontal Belt Type Vacuum Filter, Vertical Automatic Diaphragm Filter Press, Joint Resistance to Static Cutting Performance Test Methods of Rubber or Plastic Coated Fabrics and so on. The group has won the "China Patent Excellence Award", "National Key New Products", "Shandong Province Significant Energy-saving Achievement Award", "Shandong Province Technical Invention Award", "Shandong Province Science and Technology Progress Award" and a number of national and provincial science and technology award, undertaken a number of provincial science and technology, technical transformation special project of Shandong independent innovation achievements transformation major project and special funds project of Shandong industrial upgrading and synergism. The company has received the International Quality Control System Certification, Intellectual Property Management System Certification, Occupational Health Management System Certification and Environmental Management System Certification. The company has received the "Shandong Energy-saving Environmental Protection Demonstration Enterprise", "Shandong Intellectual Property Advantage Enterprise", " Observes Contracts and Keep Promises Enterprise", "China Patent Shandong Star Enterprise", " Shandong Management Innovation Excellent Enterprise ", "Advanced Enterprise of Excellent Performance " and other honorary successively.



FAQ

1.Q:Are you a manufacturer or trading company?

A: We are a manufacturer, we have rich experience in solid liquid industry for more than 20 years.We are the Horizontal belt vacuum filter and TC ceramic disc vacuum filter,HVPF tower press filter leader of China.



2.Q:Do you have minimum order quantity request?

A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.



3.Q:Do you have certificates?

A: Yes, we have CE, ISO,SGS.etc. certificates.



4.Q:Can you meet my special requirements for my products?

A: Yes, we have rich experience and we have a professional design team. We can provide different drawings according to your requirements.



5.Q:How to pay?

A:T/T is acceptable.



6.Q:What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 2 months.



7.Q:How to pack the products?

A: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.



8.Q:How to install after the equipment arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.



9.Q:How long is the validity?

A:The validity is 12 months after installation.
