China industrial high filtration accuracy PP PET filter cloth size customized

Product details
After Warranty Service:Field maintenance and repair service;Feature:High Filtration Accuracy;
Condition:New;Applicable Industries:Energy & Mining;
Place of Origin:Shandong China;Type:Woven Filter;
Function:solid-liquid separation;Thickness:Customized Size;
Color:White,yellow,blue and other;Brand Name:Toncin;
Application:Industry;Port:Qingdao or as your requirements;
Packaging Detail:seaworthy package or customer required special package;Local Service Location:South Africa;
Material:polypropylene;Supply Ability:500000 Square Meter/Square Meters per Year;
Micron:Customized;Package Preview:;
Production phase:10 days;Warranty:3 months;
Certificate:ISO9001;Service Life:6 months;
Usage:solid-liquid separation;Showroom Location:Russia,South Africa;
Product name:filter cloth;Payment Terms:L/C,T/T;

Nylon polypropylene filter mesh micro filter cloth

Our Products



Product Description



  • 1-PET monofilament-multifilament filter cloth; 2- PP monofilament-double filter cloth;
  • 3- PP monofilament-multifilament filter cloth; 4- monofilament filter cloth;

Double-layer filter cloth is made of doublelayer filament material (upper layer for filtration,lower is

 for support),and is widely applied in belt vacuum filter,disc filter,centrifuge etc.

Single-layer filter cloth is made of filament material under 2 layers,and it is widely applied in belt

vacuum filter belt press filter,plate press filter.disc filter.centrifuge etc. Multifilament filter cloth is made of long fiber or short fiber and is widely applied in belt vacuum filter, belt press filter, plate press filter,disc filter,centrifuge etc.





Name

Polyester

Polypropylene(PP)

Polyamide(PA)

Polyvinyl Alcohol

Acid Resistance

Good

Fair

Weak

Not Acid Resistance

Alkaline Resistance

Weak Alkaline resistance

Good

Fair

Strong alkaline resistance

Breaking Extension(%)

20-50

PET

20-40

12-26

Breaking Strength(g/d)

4.3-9

4.5-9

4.5-9.5

4-10

Soften Point(℃)

238-240

140-160

180-235

220-230

Melt Point(℃)

255-260

165-173

215-260

220

Specific Gravity

1.38

0.91

1.14

1.26-1.30

Heat Resistance

120℃

90℃ Shrink a little

130℃Shrink a little

100℃Shrink

Detailed Images

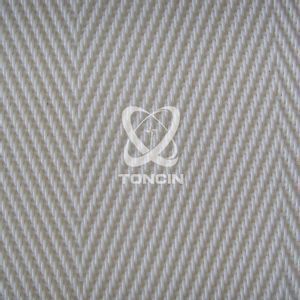

Polypropylene filter cloth is weaved by monofilament or multifilament, which has good air and water permeability.They have good ability to prevent the granules from blocking in the fabrics and the filter cakes can be peeled off easily, therefore, they can be used time after time.

Products Advantages



1. good resistance to both acid and alkali

2. good retaining capacity, easy to peel off cake

3. good regeneration capacity

4. excellent dimensional stability and high using efficiency

5. filter cake has low moisture

6. filter cloth has long lifetime

Product Application
You need to tell us what you want to filtrate; what kind of equipment you are using;  the filter result you are expecting;we are able to provide you the right fabrics for you accordingly or design the right fabrics for you. The cloth is widely applied in the horizontal vacuum belt filter, rubber vacuum belt filter, belt drier, belt filter press, press filter, HVPF Vertical automatic filter press and used in the industry of power plant, petroleum, chemical industry, smelting, mineral separation, environment protection, foods, and pharmacy.

Packaging & Shipping



 Export package:We use standard export package or as you required.

Shipping:We will send our products within 2 months.

Transport way :By sea or by air.





Company Information



Nuclear Industry Yantai Toncin Group Co.,Ltd. completed the restructuring and reorganization in June 2016, integrated 13 enterprises of filter industry, advanced manufacturing industry and new materials industry, set up the group company, formed the industrial pattern of common development of filtration separation machinery, new material industry and high-end equipment industry. Toncin group's enterprises mainly include Yantai Hejing Ceramic New Materials Co., Ltd., Yantai Sunny Rubber Co., Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., etc, and Nuclear Industry Yantai Toncin Group Co. Ltd., Yantai Sunny Hexing Environment Protection Equipment Co., Ltd., Huzhou Hehui Machinery Co., Ltd., Yantai Xinghe Filtration Technology Co. Ltd. are belong to the solid-liquid separation equipment and technology filed, and their main products are solid-liquid separation products; Yantai Hejing Ceramic New Materials Co., Ltd. is an important crucible R & D and production enterprise in china; Yantai Sunny Rubber Co., Ltd. independently research and developed rubber dam, gas shield dam and other products, which are widely used in urban water conservancy construction, the technology level has reached the international advanced level. Toncin group currently own 5 state-level high-tech enterprises, 3 provincial-level enterprise technology centers, 1 provincial-level industrial design center, maintain 177 valid patents, including 38 invention patents, presided and participated in the formulation of more than 10 national standards and industry standards of the Horizontal Belt Type Vacuum Filter, Vertical Automatic Diaphragm Filter Press, Joint Resistance to Static Cutting Performance Test Methods of Rubber or Plastic Coated Fabrics and so on. The group has won the "China Patent Excellence Award", "National Key New Products", "Shandong Province Significant Energy-saving Achievement Award", "Shandong Province Technical Invention Award", "Shandong Province Science and Technology Progress Award" and a number of national and provincial science and technology award, undertaken a number of provincial science and technology, technical transformation special project of Shandong independent innovation achievements transformation major project and special funds project of Shandong industrial upgrading and synergism. The company has received the International Quality Control System Certification, Intellectual Property Management System Certification, Occupational Health Management System Certification and Environmental Management System Certification. The company has received the "Shandong Energy-saving Environmental Protection Demonstration Enterprise", "Shandong Intellectual Property Advantage Enterprise", " Observes Contracts and Keep Promises Enterprise", "China Patent Shandong Star Enterprise", " Shandong Management Innovation Excellent Enterprise ", "Advanced Enterprise of Excellent Performance " and other honorary successively.

FAQ



1.Q:Are you a manufacturer or trading company?

A: We are a manufacturer, we have rich experience in solid liquid industry for more than 20 years.We are the Horizontal belt vacuum filter and TC ceramic disc vacuum filter,HVPF tower press filter leader of China.



2.Q:Do you have minimum order quantity request?

A: for spare parts we have no MOQ,but for whole set equipment of course 1 set is the minimum.



3.Q:Do you have certificates?

A: Yes, we have CE, ISO,SGS.etc. certificates.



4.Q:Can you meet my special requirements for my products?

A: Yes, we have rich experience and we have a professional design team. We can provide different drawings according to your requirements.



5.Q:How to pay?

A:T/T is acceptable.



6.Q:What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 2 months.



7.Q:How to pack the products?

A: We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.



8.Q:How to install after the equipment arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.



9.Q:How long is the validity?

A:The validity is 12 months after installation.
