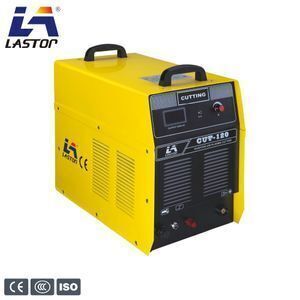

CUT-120 High speed China Portable air plasma steel sheet cutting machine

Supplier: Zhejiang Laoshidun Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Wynn Wang
Price: $330.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Delivery Detail:	30-45Days;	Packaging Detail:	Carton Box:645370540MM 20GP:1500CTNS; 40HQ:3000CTNS;
Name:	Air IGBT Plasma Cutting Machine;	Usage:	Cutting;
Brand Name:	LASTON;	Condition:	New;
Port:	NINGBO;	Color:	Customized;
Model Number:	CUT-120;	Input Voltage:	380V;
Power(W):	20KVA;	Supply Ability:	20000 Carton/Cartons per Month;
Weight:	30KG;	Rated Current:	20-120A;
Duty cycle:	60%;	Type:	IGBT;
Place of Origin:	Zhejiang China;	Function:	Inverter Plasma Cutting Machine;
After-sales Service Provided:	No overseas service provided;	No-Load Voltage:	270V;
Dimensions:	645370540mm;	Payment Terms:	T/T;
Certification:	CE Certification;	Product name:	CUT-120;

Product Description

Feature

.Cutting current can be adjusted continously for different work piece different thickness and different cutting speed.

.High frequency shift arc starting, easy arc starting.
.Igbt inverter technology，with high efficiency of power
and reliable.
.Overvlotage，undervoltage ,overheart, overcurrent
protections，and set a pressure switch to protect the
cuttting gun.
.Apply to cut kinds of steel material，such as carbon
steel，stainless steel，alloy steel，copper，alloy ect.
.Smooth incisions.

ITEM	CUT-120
Power voltage(V)	380V
Rated iutput capacity(KVA)	20
Rated output voltage(V)	128
Rated output(A)	20-120
No-load voltage(V)	270
Duty cycle(%)	60
Efficiency(%)	85
Power factor	0.93
Air pressure(Mpa)	0.7
Insulation class	F
Protect class	IP21
Max cutting thickness(mm)	35
Dimension(mm)	*645370540*
Weight(kg)	30

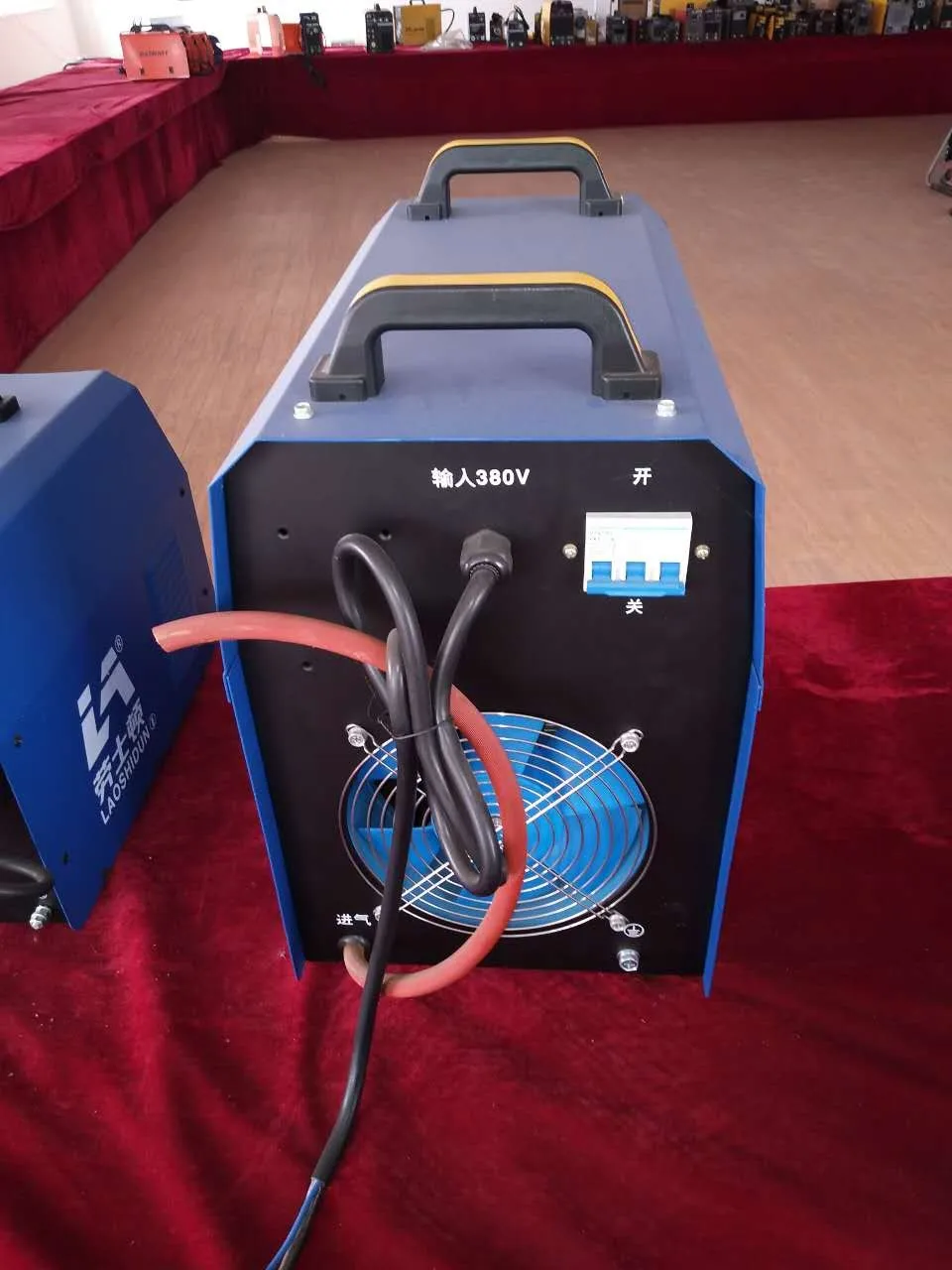

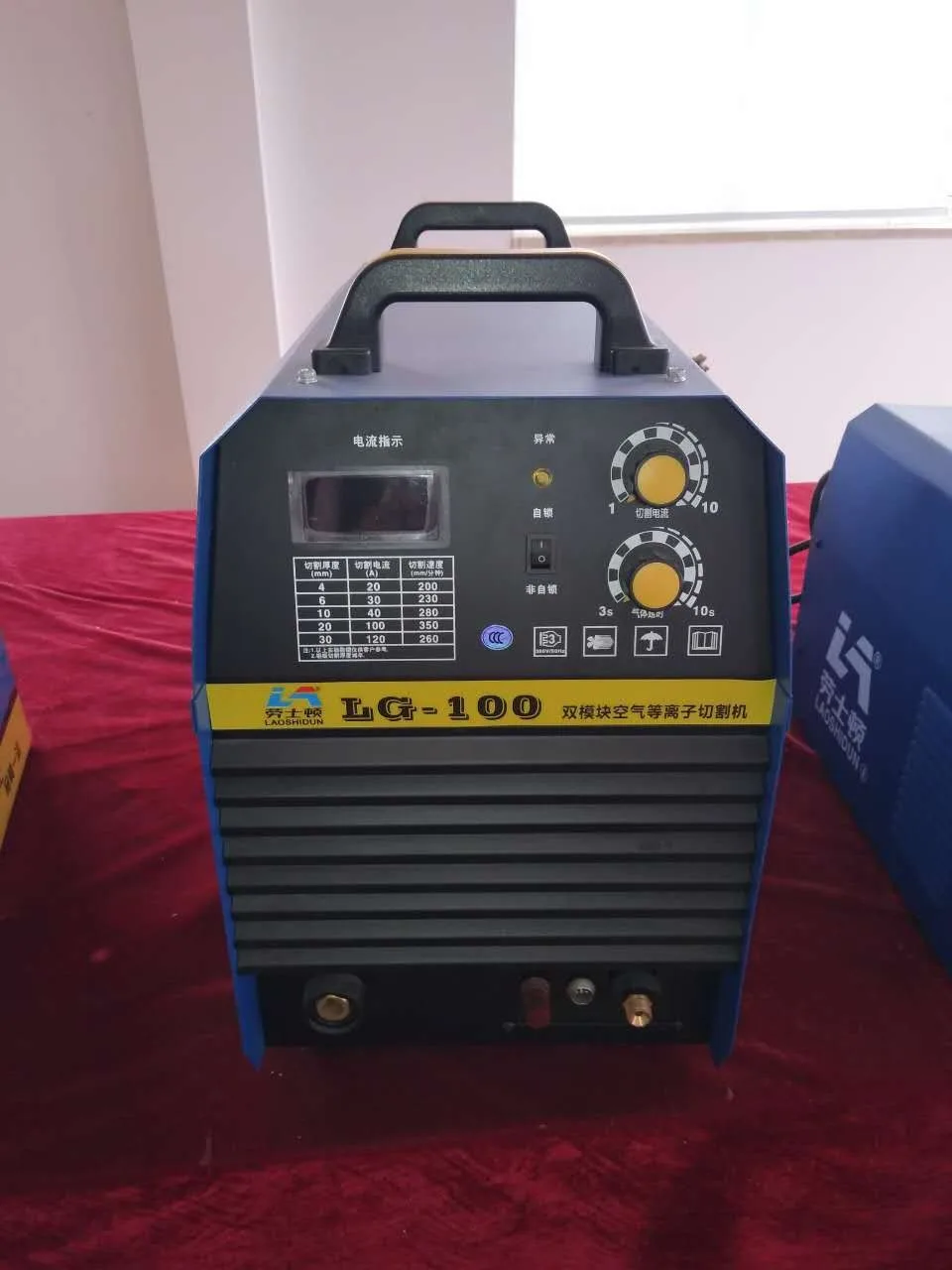

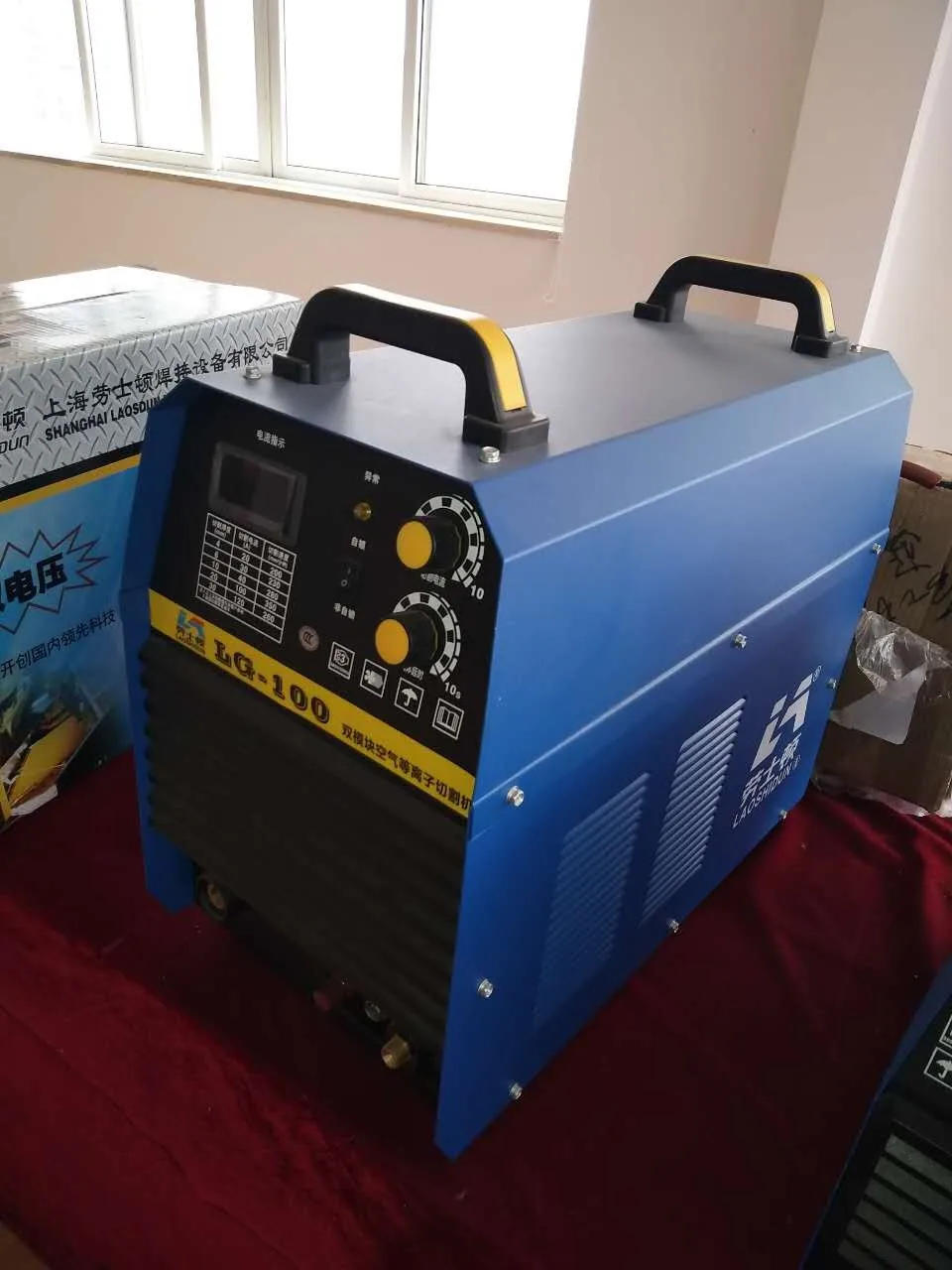

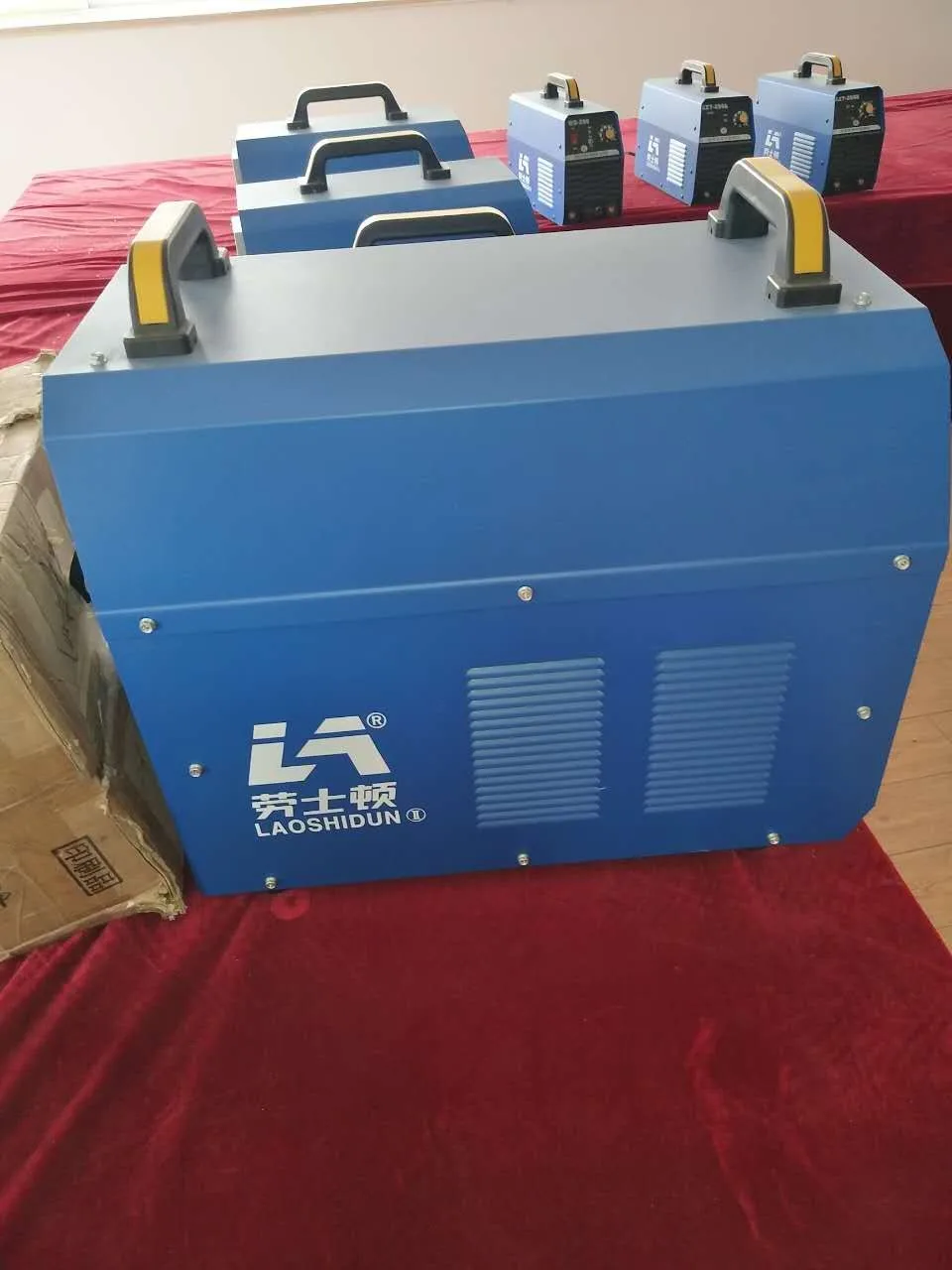

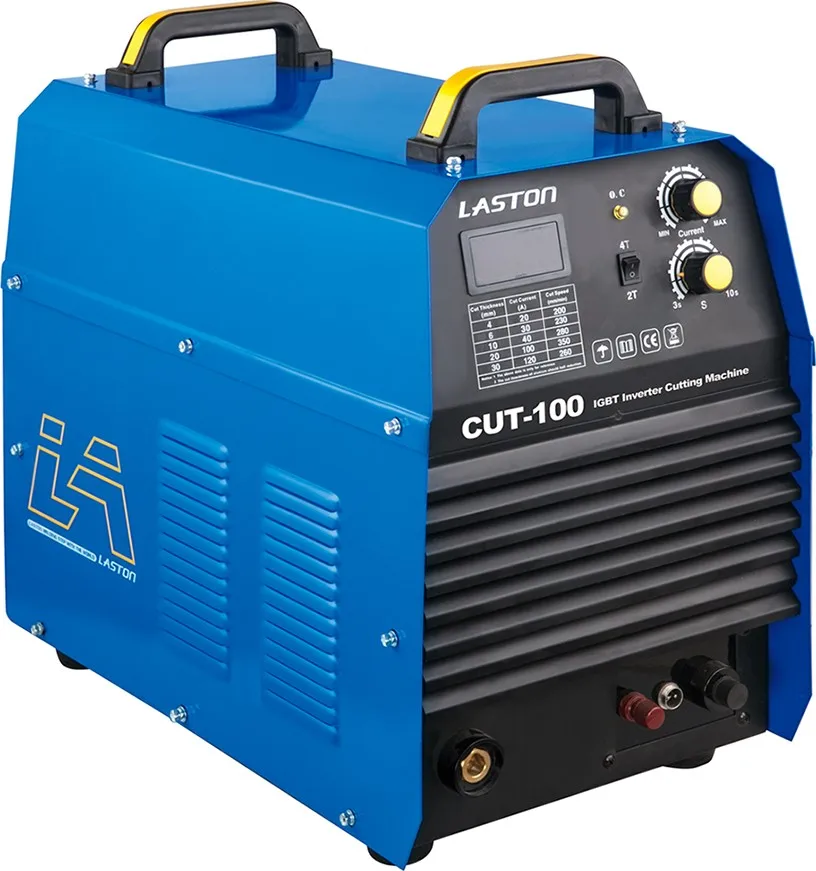

Products Show

Accessories

Company Info

Packing & Delivery

Packaging:
.Normal Carton Box
.Color Box
.Plastic box
Delivery &Payment:
. Lead time:30-45day
.T/T 30%in advance ,70% after got the copy of the BL or LC at sight
