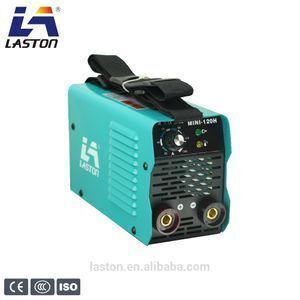

Portable single phase mma spot arc inverter 100a welder

Supplier: Zhejiang Laoshidun Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Wynn Wang
Price: $23.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated Duty Cycle:	60%;	Power(W):	5kva;
Accessories:	1.6m welding torch and 1.4m earth clamp ,brush mask;	Certification:	CE CCC TUE EMC ISO9001:2000;
Protection Class:	1P21S;	Warranty:	1 Year;
Brand Name:	LASTON/OEM;	Pilot Arc Current:	20-100A;
Dimensions:	22898150mm;	Supply Ability:	40000 Set/Sets per Month;
After-sales Service Provided:	Engineers available to service machinery overseas;	Power Factor:	0.73;
Technology:	IGBT Inverter;	Usage:	Decorations,Welding,DIY;
Rated Duty Cycle:	60%;	Port:	ningbo or shanghai;
Product name:	Portable single phase mma spot arc inverter 100a welder;	Pulse Frequency:	50HZ/60HZ;
After-sales Service Provided:	Free spare parts;	Motor Type:	DC MOTOR;
Arc Current:	20-100A;	Packaging Detail:	1. Standard exported carton 2. Protected Foam 3. Packing Belt helpful;
Place of Origin:	Zhejiang China (Mainland);	Condition:	New;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Voltage:	AC220V 15%±50HZ 60hz;
Efficiency:	80% Inverter Welders;	Type:	IGBT;
Color:	Customer Requirement;

Product Description

Portable single phase mma spot arc inverter 100a welder

Feature：

1.Advanced (IGBT) inverter technology
2.Compact ,portable,high efficiency,low consumption ,energy saving ,Anti-stick,thermostatic cntrol ,fan cooled carring strap and handle
3.Hot start ,arc force ,overload protection
4.Supplied complete with electrode holder and earth clamp ,face mask and welding brush
5.Applicable for welding of all kinds of ferrous metals such as low carbon steel,medium carbon steel and alloy steel ,etc..

OTHER SIMILAR PRODUCTS

ITEM	mini-100h	MINI-125	MINI-140	MINI-160	MINI-180	MINI-200
POWER VOLTAGE	AC220V±15%50HZ	AC220V±15%50HZ	AC220V±15%50HZ	AC220V±15%50HZ	AC220V±15%50HZ	AC220V±15%50HZ
RATED INPUT CAPACITY (KVA)	2.0	5.3	6.1	7.2	8.3	9.6
RATED INPUT CURRENT(A)	21A	24	27.8	32.8	38.1	43.5
RATED OUTPUT(A)	100A/24V	125A/25V	140A/25.6V	160A/26.4V	180A/27.2V	200A/28V
OUTPUT CURRENT RANGE(A)	20-100A	30-125	30-140	30-160	30-180	30-200
NO-LOAD VOLTAGE(V)	56V	56	56	56	56	56
DUTY CYCLE(%)	60	60	60	60	60	40
EFFICIENCY(%)	80	80	80	80	80	80
POWER FACTOR	0.73	0.73	0.73	0.73	0.73	0.73
INSULATION CLASS	F	F	F	F	F	F
PROTECT CLASS		IP21S	IP21S	IP21S	IP21S	IP21S
USABLE ELECTRODE(mm)		1.6-2.5	1.6-3.2	1.6-4.0	1.6-4.0	1.6-5.0
DIMENSION(mm)		22898150	22898150	22898150	240110185	240110185
WEIGHT(KG)		3	3	3	3.6	3.6

APPLICATION

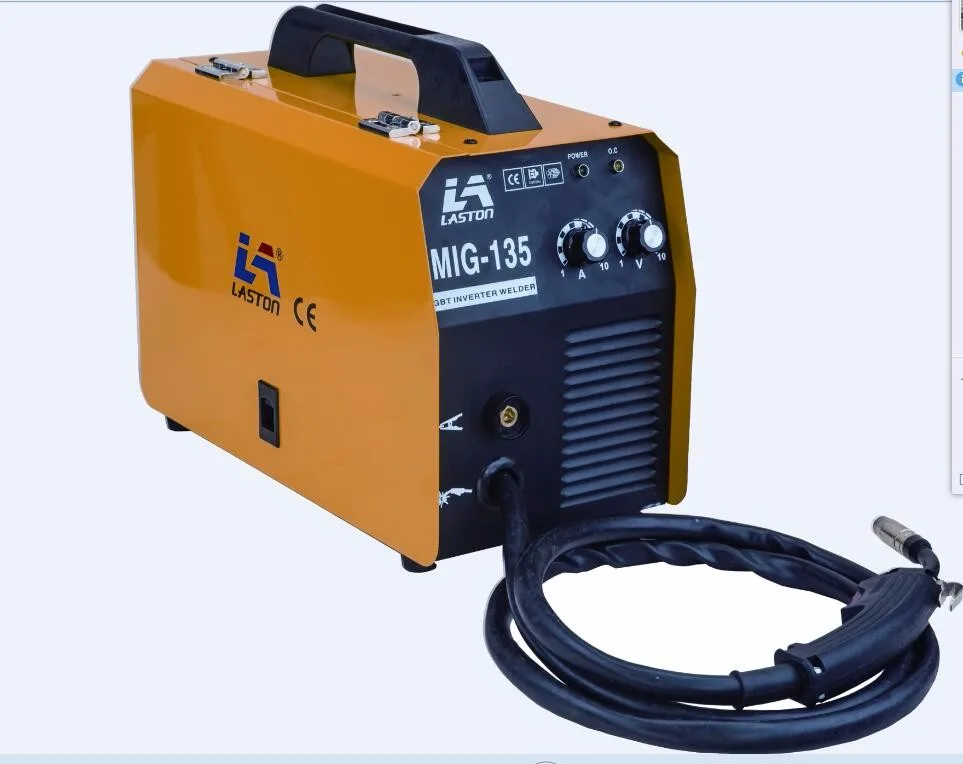

Other Products

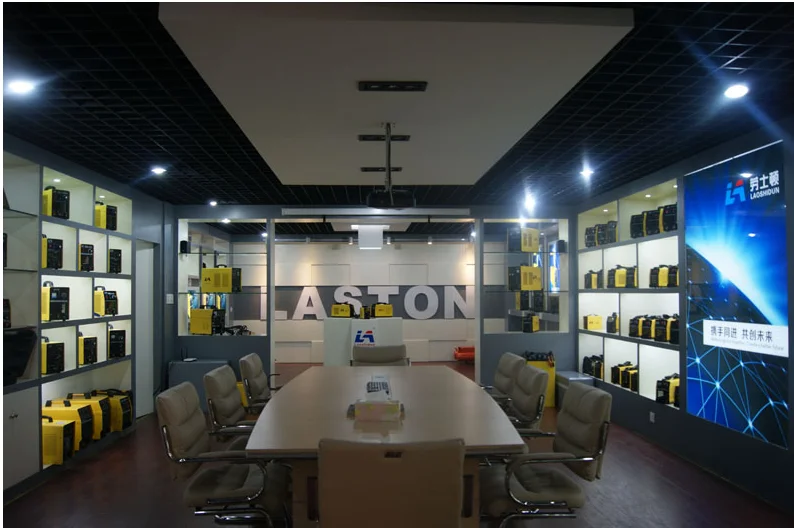

OUR COMPANY

Established in 2001,Zhejiang laoshidun welding equipment Co.Ltd specialized in Welding Machine, is one of the largest professional manufacturers and exporters of Welding Machine, Air Compressor and etc. Our factory covers an area of 60.000 square meters with 500 staffs and 4 assembling lines. The annual volume reaches 400000pcs.

We have well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee all customers’ satisfaction. All of our products comply with international quality standards ,such as CE ,TUV and ISO9001:2000 quality system. With the excellent products and great reputation, we have gained a global sales network of our main market as Europe,South America,Southeast Asia and Middle East.

We will always maintain a close contact with customers, commit to developing high quality products to provide optimized service, realizing the harmonious development between Laston and the customers.

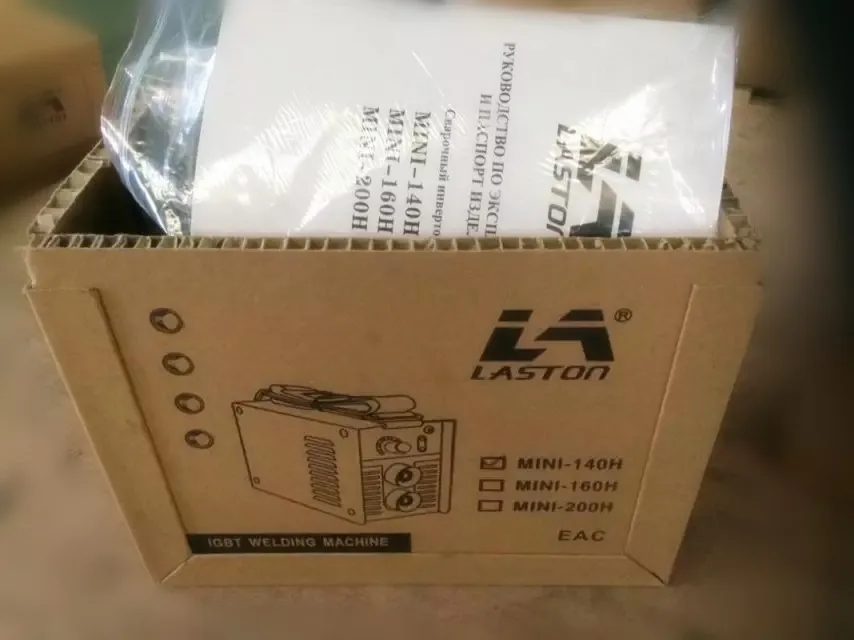

Packing & Delivery

Exhibition show

Payment

LEAD TIME :25-35DAYS

DELIVERY WAY :BY SEA

SHIPPING PORE: NINGBO OR SHANGHAI

TRADE TERM : FOB ,CIF AND CFR

PAYMENT:TT/LC/western union
