MIG-135 INVERTER MIG/MMA WELDING MACHINE

Supplier: Zhejiang Laoshidun Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Wynn Wang
Price: $81.50 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Rated Input Voltage:	230;	Weight:	10KG;
Rated Duty cycle (%):	60%;	Dimensions:	480220340MM;
Wire Melting Type:	Spray Transfer;	Year:	2019;
Port:	NINGBO;	Brand Name:	OEM;
Product name:	MIG-135;	Voltage:	220V;
Rated Duty Cycle @40°C (MIG):	40;	Place of Origin:	Zhejiang China;
Material / Metal Processed:	Carbon Steel;	Certification:	CE Certification;
Name:	Welder Machine;	Efficiency:	80%;
After-sales Service Provided:	No overseas service provided;	Packaging Detail:	Honeycomb box :(480220340mm); 20GP:700CTNS; 40HQ:1650CTNS;
Max. Load Power Capacity:	5;	Technology:	IGBT Chip;
After-sales Service Provided:	Free spare parts;	Warranty:	1 Year;
Power(W):	4.1KVA;	No-load Voltage:	44V;
Color:	Customized;	Type:	MIG Torch/MMA;
Supply Ability:	5000 Carton/Cartons per Month;	Usage:	Welding;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Farms,Home Use;	Function:	MIG MMA ARC Welding;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Condition:	New;
Wire Feeding Speed:	0-10m/min;

Product Introduction

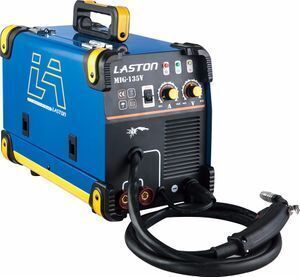

GOOD QUALITY INVERTER MIG/MMA WELDING

MACHINE MIG-135

IGBT inverter technoloy,energy saving.
PWM pulse width control technology,special performance,accurate current control,stable arc passing.
Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post
flow functions:well spatter control,good depth of fusion,good welding effect.
Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,
porable.Suitable for welding mild steel,low alloy steel metal sheet.

Product Parameters

MODEL	MIG-135	MIG-175	MIG-195
Power voltage (V)	AC220V	AC220V	AC220V
Rated input capacity(KVA)	4.1	6.8	7.6
Rated intput current(A)	18.7	31	35
Actual output current(A)	120	170	190
no-load voltage (V)	44	55	55
Duty cycle(%)	60	30	30
Efficiency(%)	80	80	80
power factor	0.73	0.73	0.73
Insolation class	F	F	F
Protect class	IP21S	IP21S	IP21S
Usable wire(mm)	0.6-0.8	0.6-1.0	0.6-1.0
N.W.(KG)	10	11.4	11.5
Dimension(mm)	*480220340*	480240370	480240370

Product Details Show

Product Packing

you can choice the kraft box,the kraft box will be with the left and right foams.

you can choice the colour box,and also this box will with the left and right foams.

you can choice the honeycomb,this package is very strong so this honeycomb without the foams.

Payment&Deilvery

Payment

1.Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
2.LC AT SIGHT

Delivery time
Generally it is 25-30days after confirm the design and deposit.and also it's according to the quantity.

About LASTON

Main Products

MINI-120HA

LASTON WELDER MINI-120HR WELDING INSPECTION EQUIPMENT

TIG-200V

ARGON DC INVERTER TIG MMA WELDER

MIG-175V

MIG WELDING MACHINE 175A CO2 WELDER

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q:How many people in your factory?
A:About 300 people.

Q:Where is your factory located?
A: Our factory is located in Xiacheng Mechaical Industrial Area,Wugen Town,Wenling City, Zhejiang Province, China.

Q: How can i visit your company?
A:You can fly to Taizhou airport, Ningbo airport or Shanghai air port. Or you can take train to Wenling Station. Then inform us, we'll come to pick you up!

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:How do you control the quality?
A:Before we produce the machine,we have the IQC to check the materials first and when we produce,the QC will check the machine which in the product line,and when we finished the QC will check it again and also before we send the goods to you,you can come to our factory checking.
