ZH-600 Fully automatic cardboard box folder gluer machine

Product details
Production Capacity:220m/min;Name:ZH-800 Fully automatic corrugated box making machine;
line speed:0-220m/min;Binder:Dissolve the type;
Packaging Detail:wooden case each ZH-600 Fully automatic cardboard box folder gluer machine;Applicable Industries:Printing Shops;
Payment Terms:L/C,T/T,Western Union;The counting range:0~999999(full-automatic);
Dimension(L*W*H):5800*900*1300(mm);paper board:210-600gsm;
Processing Type:folder gluer machine;After-sales Service Provided:Engineers available to service machinery overseas;
Warranty:1 year;Voltage:220V/50Hz;
Place of Origin:Zhejiang China;Weight:1800kg;
Certification:CE;Product Type:folder gluer machine;
After-sales Service Provided:Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;Supply Ability:10 Set/Sets per Month;
Paper feeding:Automatic feeding;Brand Name:Printyoung;
Port:Shanghai;Power(W):2.2kw;
Condition:New;



Product Description

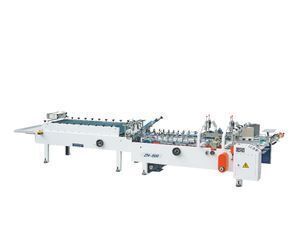

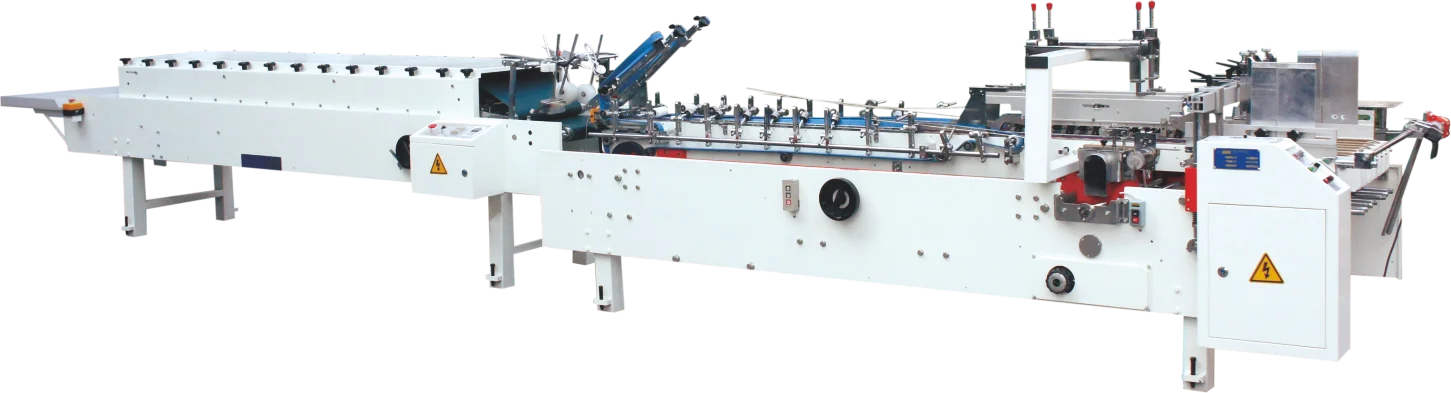

ZH-600 Fully automatic cardboard box folder gluer machine





ZH-600 Fully automatic cardboard box folder gluer machine is the company’s main push ordinary type folder gluer, its stability, versatility and flexibility are use’s praise. Small to large box can paste. For small boxes, it can make 40,000 to 50,000 pieces per hour. It is an Ideal equipment for printing industry.





Technical parameters



1.

Line speed:0~220m/min continuous adjustment.

2.

Usage paper:210~600gsm, Paperboard

3.

The box forming: Either side’s folds, the both sides pre-fold and either side glue.

4.

Paper feeding: Automatic feeding

5.

Binder: Dissolve the type.

6.

Electric: Single-phase AC220V 2.2KW

7.

Weight:1200kg

8.

Dimension:6000×1300×1300(mm)

9.

The counting range:0~999999(full-automatic)

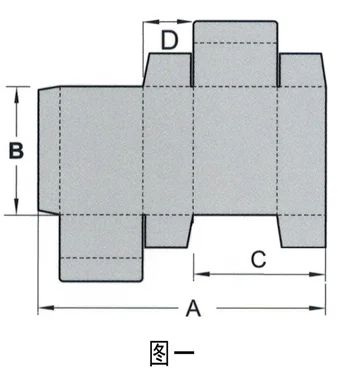

Box specification:



Main Technical Data    Unit: mm



Model

Box type

A (size range)

B (size range)

C (min)

D (min)

ZH-600

Side-glue box(Ⅰ)

110-600

60-500

50

8



















Packaging & Shipping

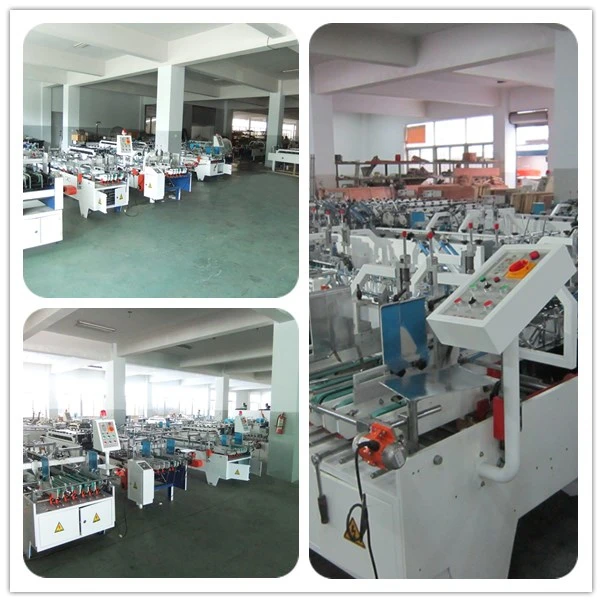

Company Information
