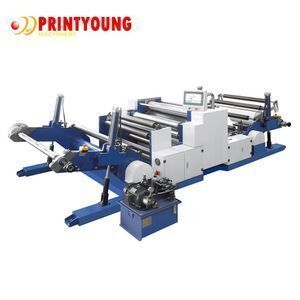

YW-1150 Automatic Roll Paper Embossing Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Applicable Industries:	Printing Shops;
Product name:	Paper Embossing Machine;	Max embossing width:	1100mm;
Warranty of core components:	1 Year;	Paper weight(g/m):	30-400g/m;
Payment Terms:	L/C,T/T;	Supply Ability:	100 Set/Sets per Month;
Automatic Grade:	Automatic;	Video outgoing-inspection:	Provided;
Warranty:	1 Year;	Voltage:	380V;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Key Selling Points:	Easy to Operate;

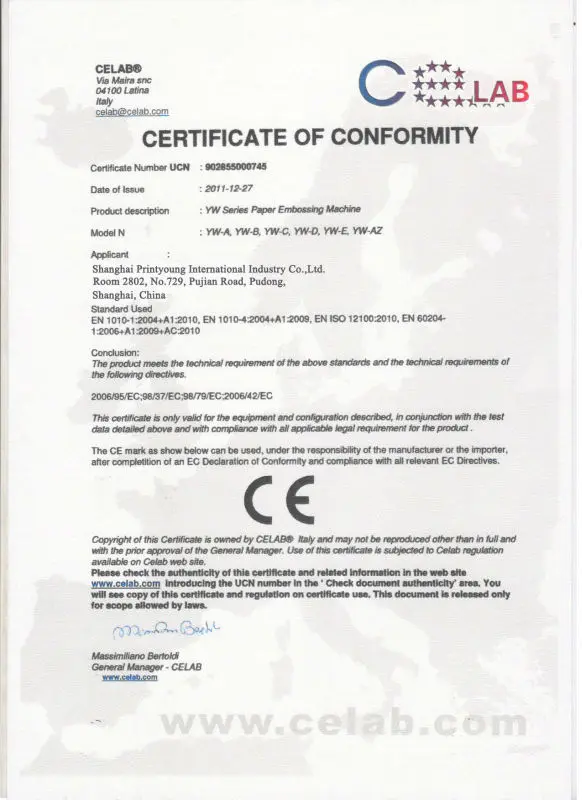

Weight:	6200Kg;	Certification:	CE;
Packaging Material:	wood;	Application:	Automatic Roll Paper embossing machine;
Air supply pressure(Mpa):	0.8-1.0;	Working pressure(Mpa):	2-10Mpa;
Packaging Detail:	Wooden case;	Brand Name:	Printyoung;
Marketing Type:	Hot Product 2019;	Place of Origin:	Shanghai China;
Core Components:	Engine,Motor;	Machinery Test Report:	Provided;
Driven Type:	Electric;	Condition:	New;
Type:	Embossing Machine;	Packaging Type:	case;
Port:	Ningbo;	Local Service Location:	Egypt,Italy,Morocco,Algeria,South Africa;
Max Embossing speed:	80(m/min);	Dimension(LWH):	480030001450;
Package Preview:	;	Showroom Location:	Egypt,Italy,Morocco,Algeria,South Africa;

Detailed Product Description:

YW Type Automatic roll to roll embossing machine is automatic embossing equipment with mechanical and hydraulic system, It is suitable for embossing all kinds of paper and plastic film rolls into equisite design, It adopts automatic hydraulic lifting system, automatic heating and cooling system, frequency converter to control speed, automatic tension control and automatic hydraulic system etc.

It is used to punch slots on the connection place of the cutting rules and creasing rules.The depth of punching slot is adjustable from 0 mm to 25 mm. Movement is rational, and rounded edge will not deform after punching. The width of punching slot is 10mm.

Technical data:

Model	YW-920AZ	YW-1150AZ	YW-1300AZ
Max embossing speed(m/min)	80	80	80
Max Width(mm)	920	1100	1300
Material available	Paper, plastic	Paper, plastic	Paper, plastic
Paper weight(g/m)	30-400	30-400	30-500
Working pressure(Mpa)	2-10	2-10	2-12
Main motor power(kw)	4.0	4.0	5.0
Machine power(kw)	32	34	36
Air supply pressure(Mpa)	0.8-1.0	0.8-1.0	0.8-1.0
Machine dimension(L×W×H)	4800×2800×1450	4800×3000×1450	4800×3200×1450
Machine weight(kg)	5200	6200	7000
