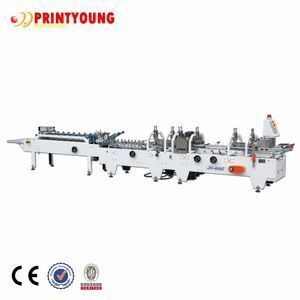

Automatic cardboard boxing machine

Product details
Packaging Detail:Wood box with iron frame packing;Box forming:pre fold and crash lock.;
Feeding:Automatic;Place of Origin:Zhejiang China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;After-sales Service Provided:Engineers available to service machinery overseas;
Gluing:four stations, 2 upper stations, 2 lower stations.;ProductName:Automatic cardboard boxing machine;
Port:Shanghai, Ningbo;Voltage:220V;
Min. Paper width:106mm;Weight:2000kg;
Line Speed:220m/min;Model Number:ZH800D;
Application:Food;Power:3.7kw;
Grinding:Grinding wheel for cleaning UV varnish and ink off the flap.;Certification:CE;
Delivery Detail:20days;Automatic Grade:Automatic;
Type:Boxing Machine;Supply Ability:30 Set/Sets per Month;
Driven Type:Electric;Max. Paper width:560mm;
Paperboard:210-600gsm;Brand Name:PRINTYOUNG;
Dimension(L*W*H):8500*900*1300mm;Packaging Material:wood;
Packaging Type:case;Condition:New;



Product Description

  Automatic cardboard boxing machine

  Introduction:

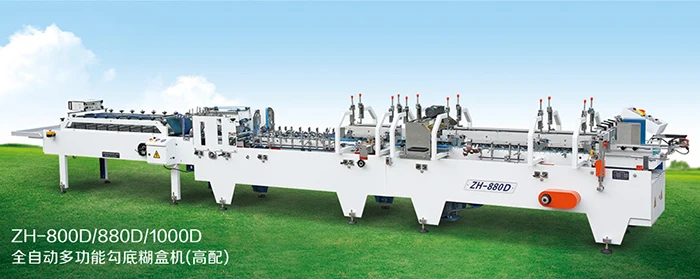

ZH800D Automatic cardboard boxing machine  have the same structure with ZH800G. Based on G-series, D-series has the following improvements:



1, ZH800D Automatic cardboard boxing machine  adds the upper belt on the folding unit to improve  the stability of the box moving.

2, The upper belt equipped with lifting devices, more convenient to operate.
3, Main engine power has been increased and the speed is faster.
4, Pressing unit has separate motor to control speed, only when there comes the box, the pressing section works..

5, The machine outlook is more beautiful.





 Technical parameters:

Line speed: 0—220m/min adjustable

Paperboard: 210-600gsm paperboard

Box forming:pre fold and crash lock.
Gluing: four stations, 2 upper stations, 2 lower stations. Each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing.
Auto Feeding
Power:3 .7Kw AC220V
Weight: 2000KG
Dimension: 8500*900*1300(mm)
Auto Counting Range: 0-999999 number with batching facility


Technical Data

Model

Box type

(A Max)

(A Min)

(B Max)

(B Min)

(C Max)

(C Min)

(D Max)

(E Min)

ZH-800G(D)

Straight line box(I)

560

106

500

65

270

50

7

6

Pre-fold box(I)

560

180

500

65

270

90

10

6

Crash lock bottom box(II)

560

160

500

65

270

80

40

6

ZH-880G(D)

Straight line box(I)

660

110

500

65

320

50

7

6

Pre-fold box(I)

660

180

500

65

320

90

10

6

Crash lock bottom box(II)

660

160

500

65

320

80

50

6

ZH-1000G(D)

Straight line box(I)

760

130

600

80

370

60

10

8

Pre-fold box(I)

760

180

600

80

370

90

15

8

Crash lock bottom box (II)

760

180

600

80

370

90

60

8

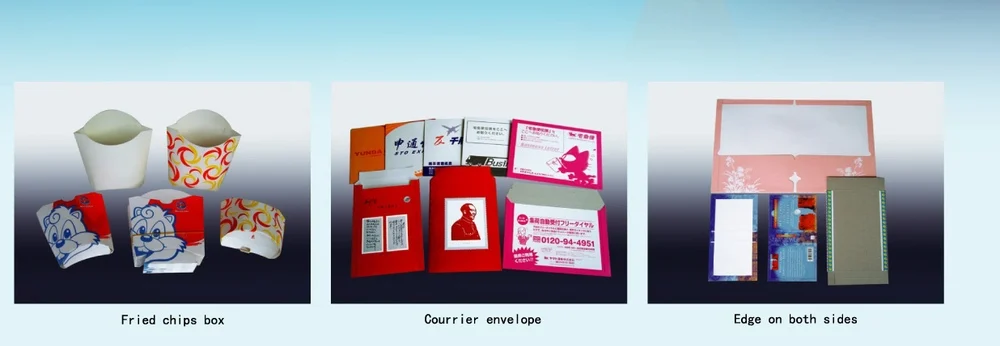

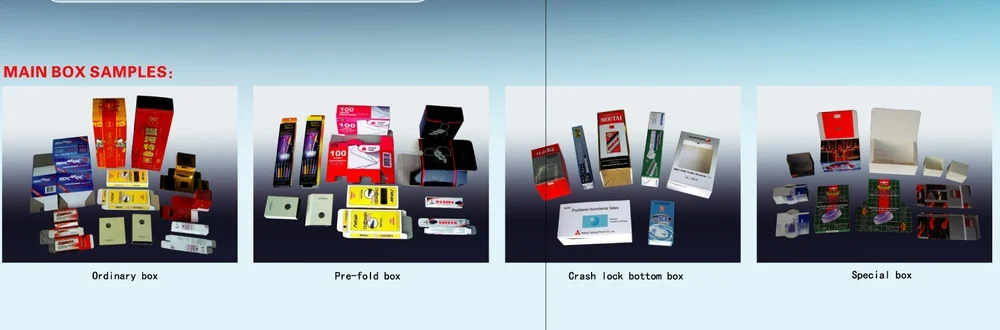

Box Samples:

Optional:







Packaging & Shipping

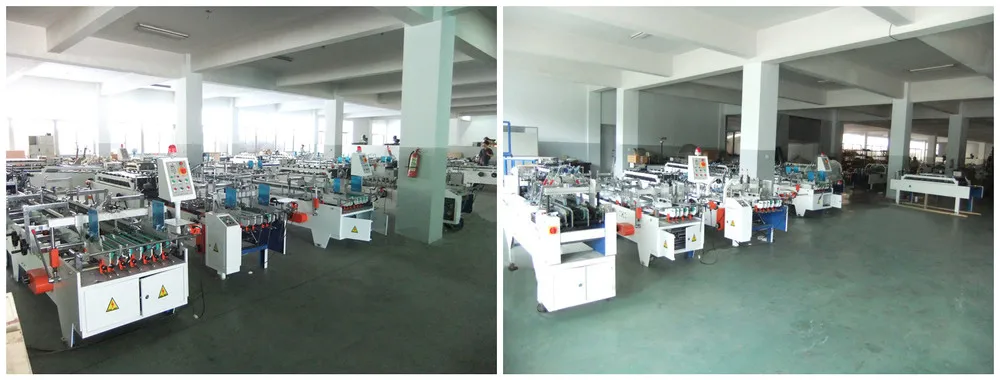

Company Information



Shanghai Printyoung International Industry Co., Ltd. is a professional printing and packaging equipment manufacturer and supplier. Our company is located in Shanghai, China. And we have factories in Zhejiang, Shandong and Guangdong province. Our people have more than 10 year experience in printing field. Our company has passed the Factory Audit by Intertek company, as well as SGS Inspection.

We specialize in printing equipment, post-printing equipment as well as printing materials. Among them, our folder gluer and die cutting machine are the best selling ones. We have large scale production and many in stock. For the regular model, it can be delivered within 15days. We also offer the clients competitive price with complete service. Our products have been sold all around the world, such as the Middle East, South Africa, Europe, Latin America and Asia total 55countries.

We have joined many professional exhibitions in different countries, such as Drupa in Germany, Ipex in Britian, Printing fair in U.S.A, Polygraphinter in Russia, Expogrfia in Mexico, Printing fair in Brazil, Gulf Pack & Print in Dubai, All print in Indonesia, etc.

"Profession, Responsibility, Solutions" are the essence of our business. We guarantee our clients with good quality and the best service. The cornerstone of our business is to have mutual benefits with our clients. Our clients are our partners.

Printyoung is young and full of energy. We are seeking the highest achievements and providing you with the best satisfaction.
