SADF-540B Fully Automatic Double Side Laminating Machine Electric Wood Printyoung 100-500g/m2 290290mm 540780mm 1800kg CN;ZHE

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang, China;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Warranty:	1 Year;	Brand Name:	Printyoung;
Showroom Location:	Egypt,Italy,Morocco,Algeria,South Africa;	Type:	Laminating Machine;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Product name:	SADF-540B Fully automatic double side laminating machine;
Application:	Food,Beverage,Commodity;	Automatic Grade:	Automatic;
Packaging Material:	Paper;	Driven Type:	Electric;
Packaging Type:	Cartons,CANS;	Port:	ningbo or shanghai;
Min. Paper:	290*290mm;	Supply Ability:	30 Sets per Month;
Max Paper Size:	540*780mm;	Machinery Test Report:	Provided;
Certification:	CE;	Payment Terms:	L/C,Western Union,T/T;
Marketing Type:	New Product 2020;	Local Service Location:	Egypt,Italy,Morocco,Algeria,South Africa;
Dimension(LWH):	320012501500mm;	Key Selling Points:	Easy to Operate;
Laminating Speed:	0-30m/min(single side) ;0-25m/min(double side);	Paper Thickness:	100-500g/m2;
Warranty of core components:	1 Year;	Packaging Detail:	wooden case each SADF-540B Fully automatic double side laminating machine;
Video outgoing-inspection:	Provided;	Condition:	New;
Weight:	1800 KG;	Voltage:	380V;
Core Components:	Engine,Motor;	Applicable Industries:	Hotels,Garment Shops,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Other,Advertising Company;

Product Description

SADF-540B Fully automatic double side laminating machine

SADF-540B Fully automatic double side laminating machine is one of our fully automatic double side laminators newly developed upon market needs. It is a processing technology which targets in laminating small size paper with pre-glued film after heated,pressured finally realize the paper and film laminated together .The most attractive features of the machine are compact structure and humanized design. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. The machine realizes automated operation, and suits pre-glued film single side and double side paper lamination.

APPLICATIONS:To suit glueless film and pre-glued film
To suit both single side and double side paper lamination

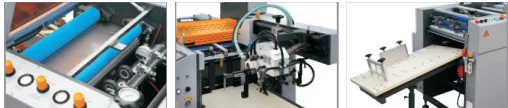

1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector,
which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs the machine will stop automatically for self-protection.
3. Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
4. Upper and down heating roller are equipped with cast aluminum heater for raising temperature, separating temperature control perfected the temperature keep steady, ensure the precision of double film lamination temperature.
5. Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
6. Anti-curvature device adopts turbine gearbox to adjust: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
7. Pneumatic cutting system realizes automatic paper cut.
8. After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order.

Technical Parameters

Model	SADF540B
Max Paper Size	540*780mm
Min Paper Size	290*440mm
Laminating Speed	0-30m/min(single side) 0-25m/min(double side)
Paper Thickness	100-500gsm
Gross Power	18kw
Overall Dimensions	320012501500mm
Weight	1800kg
