High quality RFID chip card making machine

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal	Pressure control accuracy:	+/-0.5Mpa
application:	card making	type:	Laminating machine
Main selling points:	long lasting	Warranty:	1 year
port:	Wuhan/Guangzhou/Shanghai/Shenzhen/Yiwu	Package preview:
product name:	High quality RFID chip card making machine	Laminate template dimensions:	210297mm / 230315mm
Applicable industries:	card making	Dimensions (lengthwidthheight):	8006001600mm
Core component warranty:	/	Video outbound inspection:	/
weight:	Kilogram	Materials used for packaging:	wood
Supply capacity:	20 sets per month	Showroom location:	not any
Heating temperature:	≤200℃	aspect:	About 8006001600mm
Packaging details:	ID card laminator in standard export cartons.	power supply:	AC380V 50/60HZ three-phase 4 wires
Work pressure:	0-16Mpa (adjustable)	PVC sheet layout:	25, 38, 3*7
Mechanical test report:	/	type of packaging:	case
Number of sunshine/distance:	1 tower, 3 hot daylights, 3 cold daylights, 40mm	gross weight:	About 600kg
Health status:	new	Place of origin:	Hubei, China
Core components:	/	Driver type:	Hydraulic
Automatic level:	automatic	brand:	Jackie
Voltage:	AC 380V

Product Description

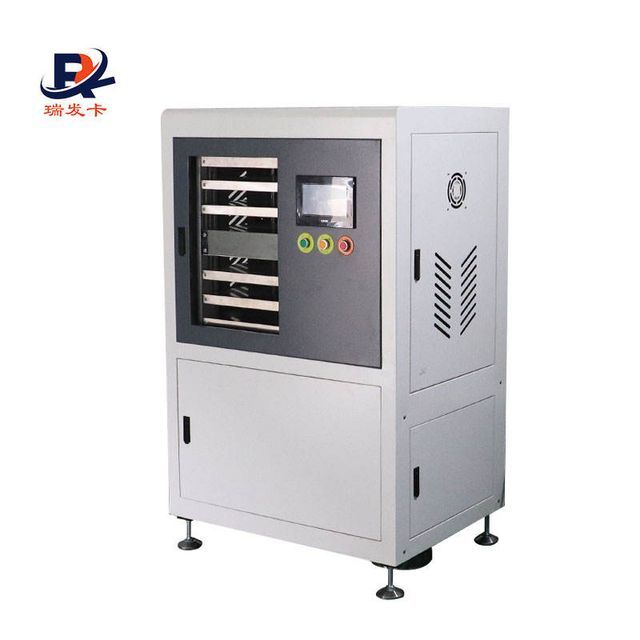

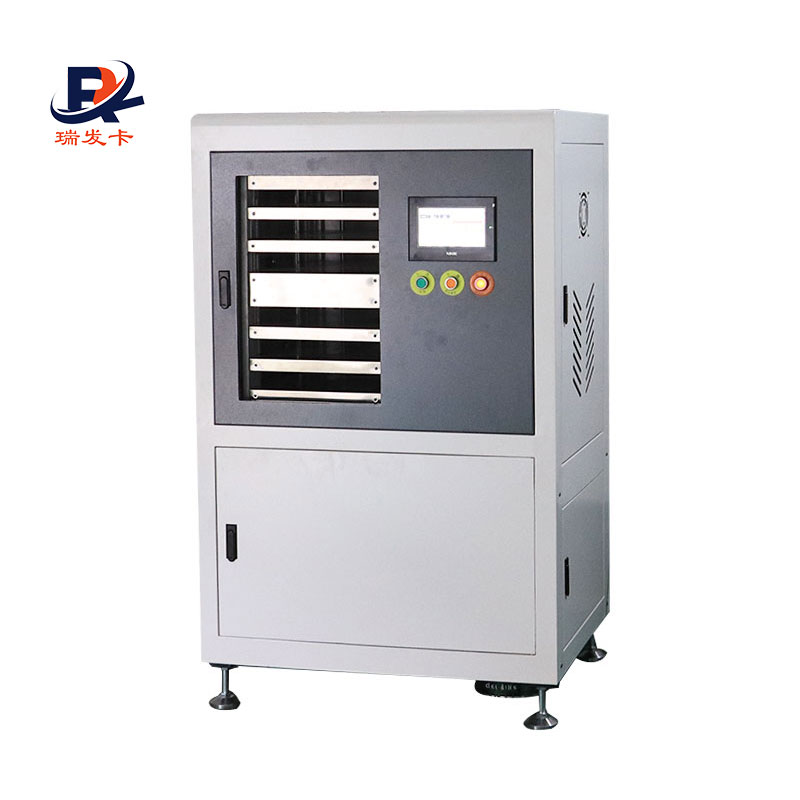

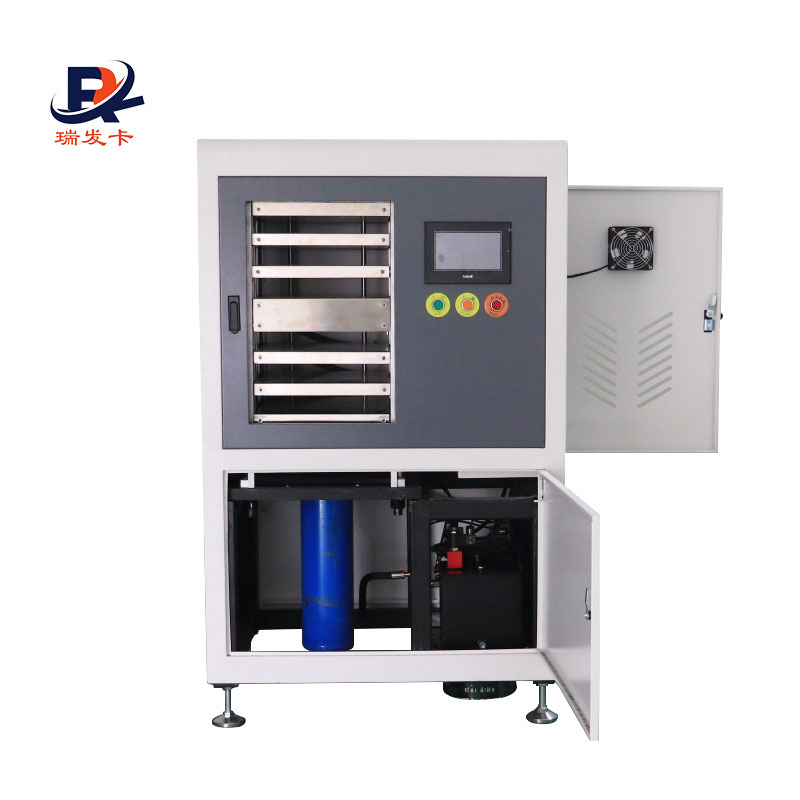

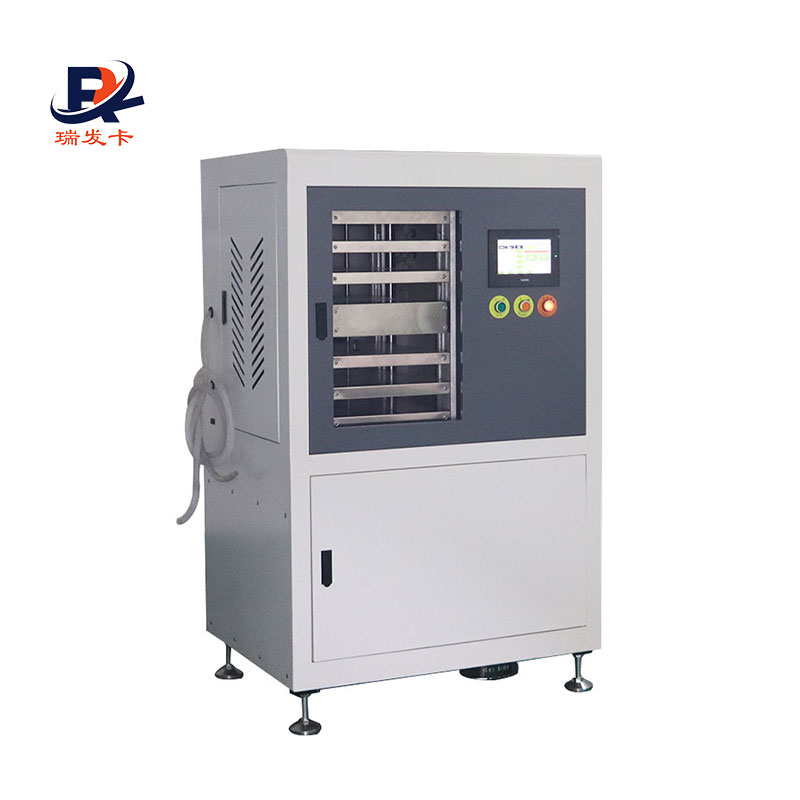

ID card laminating machine

Feature description:

Using PLC system control to ensure more precise control and more reliable performance at each lamination stage.

This model is designed for high-quality lamination of a variety of cards, including RFID chip cards.

Specially designed large-size cooling parallel circuit ensures better cooling effect.

Technical Parameters:

PVC sheet layout	2×5, 3*8
Laminate template size	230×315mm
Number of sunshine/distance	1 tower, 3 hot daylights, 3 cold daylights, 40mm
Pressure control accuracy	+/-0.5Mpa
work pressure	0-16Mpa (adjustable).
Temperature control accuracy	+/-1℃
Heating temperature	≤200℃
strength	7.5 kW (maximum)
power supply	AC380V 50/60HZ three-phase 4 wires
aspect	About 800×600×1600mm
gross weight	About 600 kg.
