Hangzhou Befitter HT-650 650mm 25" Automatic Hot Foil Transfer Laminator

Product details
payment terms:L/C, D/A, T/T, Western Union, MoneyGramApplicable industries:home use, print shop, advertising agency
Dimensions (L*W*H):1500*1000*1200Driver type:pneumatic
Warranty:1 yearSupply capacity:50pcs automatic hot foil transfer laminator per month
Lamination Type:Aluminum foil compound machineAutomatic level:semi-automatic
weight:300KGMaximum Lamination Width:650 mm 25"
Packaging Details:1pc/wooden boxspeed:0-5m/min
After-sales service provided:Free spare parts, online support, overseas third-party supporttype:Laminating machine
Materials used for packaging:glass, paper, plasticVoltage:380V
port:ShanghaiHealth status:new
Origin:Zhejiang, Chinaapplication:daily necessities, food
type of packaging:Stand-up pouch, film, aluminum foil, pouchbrand:Byzantium
Product Description

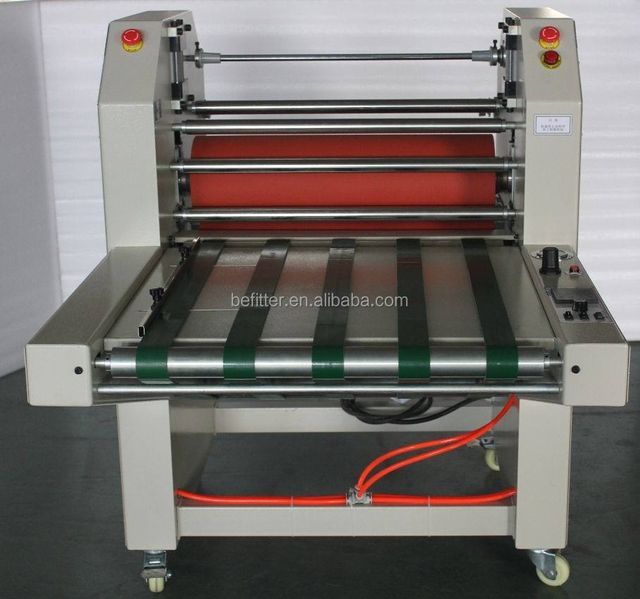

HT-650 650mm 25" Automatic Hot Stamping Transfer Laminating Machine

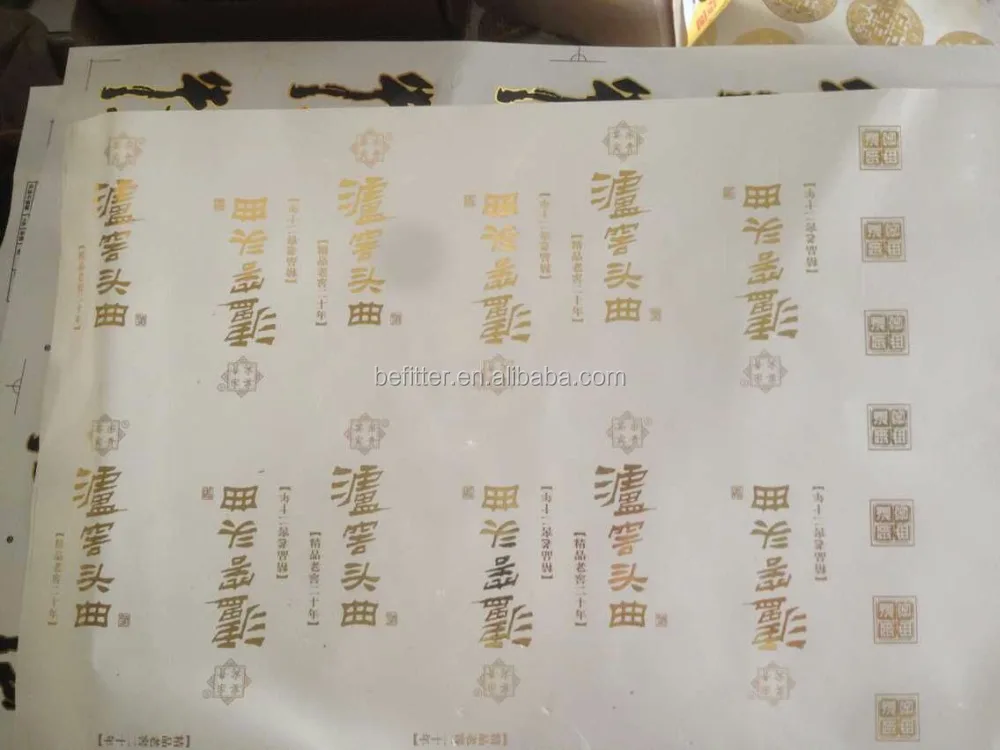

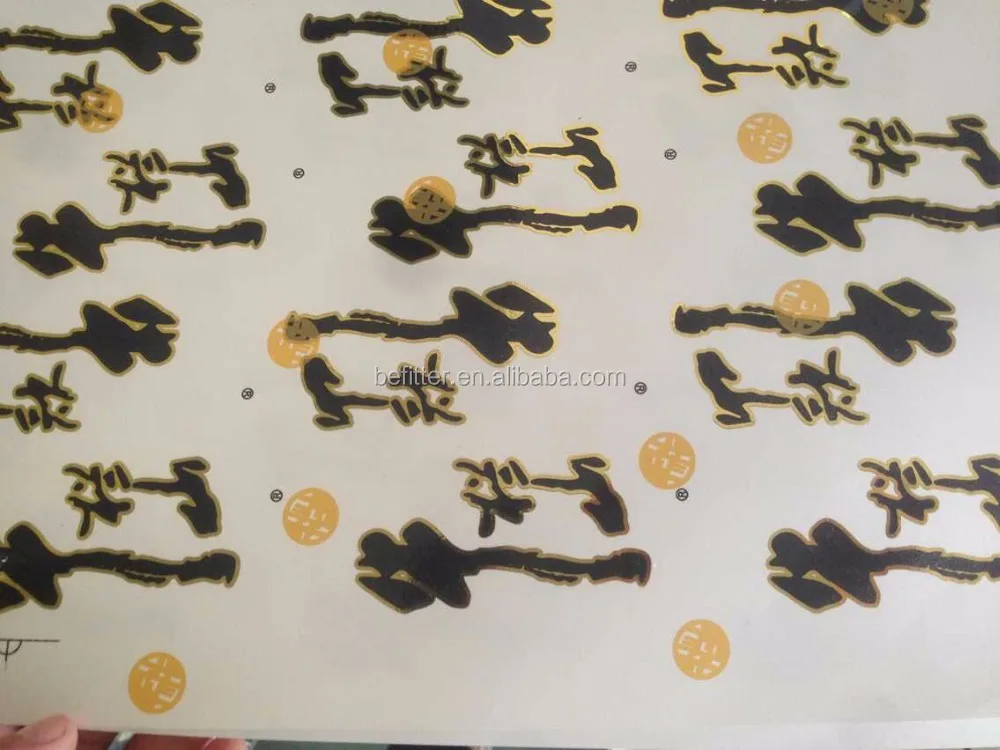

application: hot stamping on paper, aluminum foil transfer on paper, patterned paper hot stamping or other laminations that require more power, such as aluminum sheet lamination; PET film lamination




Specificationchange:



lamination width650mm, 25"
speed0-5m/min adjustable
temperature0-200 degrees
Drum diameter200mm
engine180W AC motor, 1:60 gearbox
strength3KW
aspect1500*1000*1200mm
weight300KGS
pressure0-4Mpa
Voltage380V
chip adapter1"/2.25"/3" optional





Advantage:

1. Temperature: 0-200 degrees, precise two independent temperature control systems for upper and lower rolls;

Roller diameter: 200mm, high-quality silicone rubber imported from the United States, high temperature resistance, spring, long service life;



2. Heating method: two silicone rollers heated by internal oil to ensure consistent temperature of the roller surface;

3. Motor: 180W AC motor, 1:60 gear box, high power to ensure non-stop lamination, more stable;

4.0-4Mpa pneumatic pressure adjustment,

5. Automatic paper feeding.

6.4 pcs cooling fan will increase the speed of spera foil/design paper.







our service

We are partners, we are family

Befitter people pay great attention to quality control from the beginning to the end.

each piecemachine Strictly tested one by one before packaging.
