FM-520D semi- automatic single sided laminator 20" / automatic lamination machine
- 2800.00 piece
| feeding: | manual; | Voltage: | 220V/50hz; |
| Supply Ability: | 500 Piece/Pieces per Month; | Dimension(L*W*H): | 850*1200**1200; |
| max laminating thickness: | 6mm; | After-sales Service Provided: | Overseas third-party support available; |
| Packaging Material: | Wood; | Weight: | 240kg; |
| Driven Type: | Electric; | weight: | 240kg; |
| Packaging Type: | Case; | Max laminating width: | 490MM; |
| Automatic Grade: | Semi-Automatic; | warm up time: | 160 degree; |
| laminating speed: | 0-10m/min; | Type: | Laminating Machine; |
| Place of Origin: | Zhejiang China (Mainland); | After-sales Service Provided: | Video technical support; |
| Name: | Semi-automatic single laminator; | Application: | Machinery & Hardware; |
| Warranty: | 1 Year; | Packaging Detail: | semi-automatic single sided laminator :1pcs/wooden case; |
| Port: | shanghai; | Brand Name: | Befitter; |
| power: | 4000w; | Condition: | New; |
| Payment Terms: | L/C,T/T,Western Union; | Certification: | CE Certification; |
FM-520D semi- automatic single sided laminator 20"

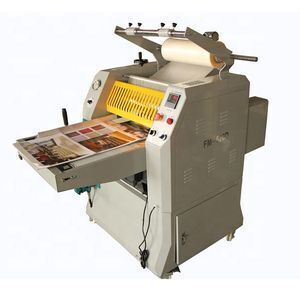

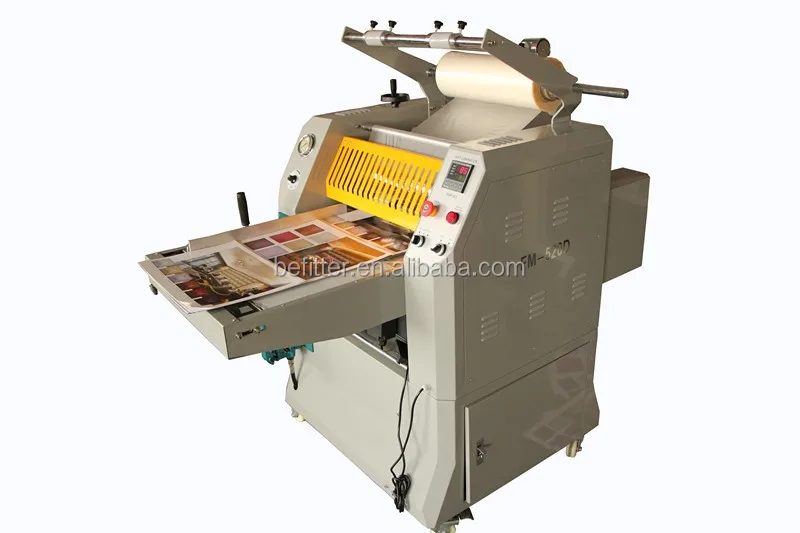

The laminator machine picture
Specification
| Model | FM-520D(Hydraulic) |
| Max lamination width | 490mm |
| Max lamination thickness | 6mm |
| Lamination Speed | 0-10m/min |
| Max lamination Temp | 160℃ |
| Display system | LED |
| Motor Power | AC 400W |
| Power supply | 220V/50Hz |
| Power | 4000W |
Packing dimension (L*W*h) | 850*1200*1200mm |
Weight | 240kg |
| Diameter of steel roller | 200mm |
| Core adaptor | 3'' |
Detail Description
1.Our FM-520D use foreign motor, Korea converter,electrical and hydraulic originals have adopted domestic famous brands,easy to replace,durable.
2.It is very convenient to use,hydraulic lifting roller pressure adjustable can meet multiple needs.
3.Anti-curl function,suitable for all kinds of paper.The machine equips a cutting blade and perforating knife which make the separation of laminated paper easily.
4.Use 3 inch core adaptor (7.6cm),can fix big roll film,reducing replacement time.
5.Upper steel roller is made of hard chrom,mirror polishing for high demanding of lamination.
6.All parts of the equipment are guaranteed for one year,the whole machine:1year warranty(except man-made).
