MachineryOffers

ZH-800G High Quality Automatic Multi-functional Folder Gluer with Crash Lock Bottom

Product details
Type:Gluing Machine;Voltage:220V;
Core Components:Engine,Motor;Certification:CE,CE;
Paper board feeding:Austomatic;Automatic Grade:Automatic;
Warranty of core components:1 Year;Port:Shanghai;
Video outgoing-inspection:Provided;Weight:1300KG;
Glue:Water solvable;Marketing Type:Hot Product 2019;
Line Speed:0~280m/min adjustable;Condition:New;
Local Service Location:Egypt,Italy,Morocco,Algeria,South Africa;Packaging Material:Paper;
Applicable Industries:Hotels,Garment Shops,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Printing Shops,Food & Beverage Shops,Other,Advertising Company;Packaging Detail:Wooden Case;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Machinery Test Report:Provided;
Application:Apparel, Beverage, Food, Machinery & Hardware, Textiles and etc.,Food,Beverage,Commodity;Brand Name:PRINTYOUNG,PRINTYOUNG;
Driven Type:Electric;Dimension(L*W*H):8000*900*1300(mm);
Packaging Type:Cartons,Cartons;Warranty:1 Year;
Payment Terms:T/T;Showroom Location:Egypt,Italy,Morocco,Algeria,South Africa;
Dimension:8000*900*1300(mm);Key Selling Points:Easy to Operate;
Paperboard:200~600 gsm;Place of Origin:China;
After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Supply Ability:10 Set/Sets per Month;

2016 ZH-800G High Quality Automatic Multi-functional Folder Gluer With Crash Lock Bottom





Product Description

Introduction

   ZH-800G is the latest multi-functional crash lock folder gluer; it made indelible contributions to the firld of folder gluer. It comblnes a variety of folder gluer features, the general-paste, pre-folded edges with crash lock bottom. It's powerful, widely usage, easy operating and adjusting boxes. Especially for the current packaging and printing industry-competitive business, the delivery of the tight schedule offers great convinience, so the packaging equipment is ideal for the printing industry. It is widely used in processing medecine box, wine box, cosmetics box, electric appliances, packing box, etc. ZH-G was awarded two patents.



Parameters

Product name Automatic Folder Gluer Machine
Model number 800G
Application Box
Packaging type Cartons
Certification CE
Box forming Both sides pre-fold, fold from either side, rither side glue, bottom glue
Paper board feeding Automatic
Glue type Water solvable
Auto counting range

0-999999 No. with batching facility

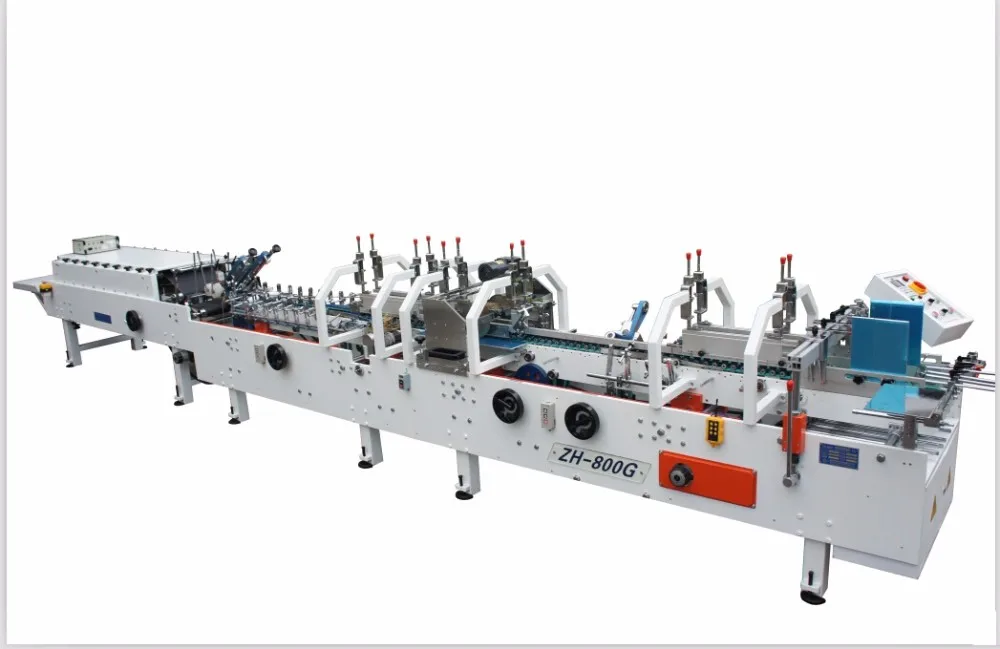

Product Show



Main Technical Datas

Model Box type (A Max) (A Min) (B Max) (B Min) (C Max) (C Min) (D Max) (E Min)
ZH-800G Straight line box(I) 560 106 50 65 270 50 7 6
Pre-fold box(I) 560 180 500 65 270 90 10 6
Crash lock bottom box(I) 560 160 500 65 270 80 40 6
ZH-880G Straight line box(I) 660 110 500 65 320 50 7 6
Pre-fold box(I) 660 180 500 65 320 50 7 6
Crash lock bottom box(I) 660 160 500 65 320 80 50 6
ZH-1000G Straight line box(I) 760 130 600 80 370 60 10 8
Pre-fold box(I) 760 180 600 80 370 90 15 8
Crash lock bottom box(I) 760 180 600 80 370 90 60 8

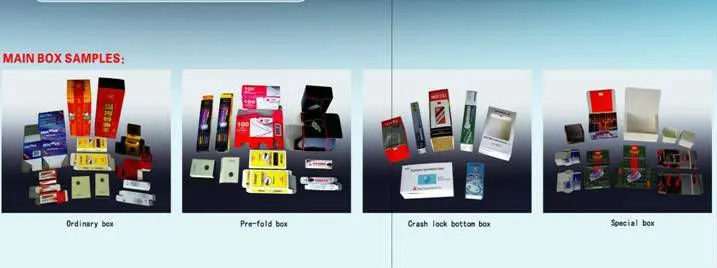

Main Box Samples

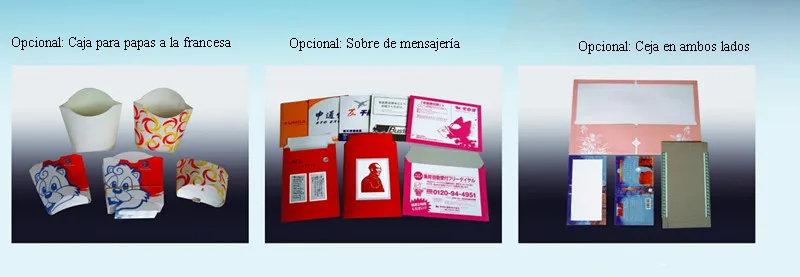

Optional Box Samples

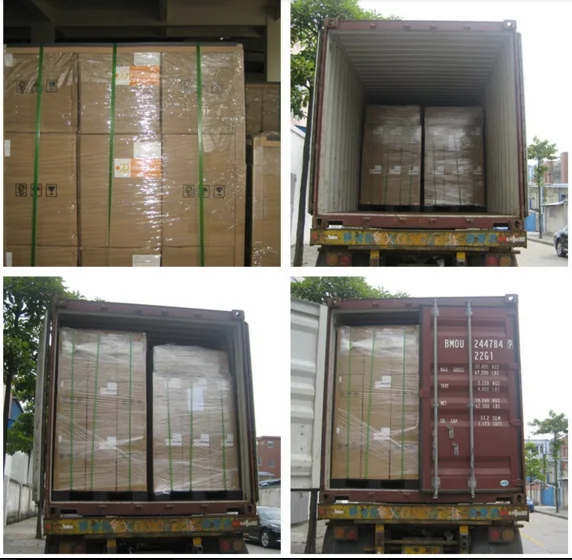

Packaging & Shipping

Packaging Type: Export Wooden Case



Company Information

Company Info.



Certification

Our Services

Why Choose us ?





1.Profession-- We have many years folder glue machine experience for South America, Africa and Mid East, etc. Our target is make high quality and resonable price umbrella product for customer.



2.Price-- Because we have factory, so we can provide higher quality products, we can control the cost. As the price here just for reference, If you are interested in our products, please contact us to discuss the specific price.



3.Service-- We have professional sales system, and any of your inquiry will be treated within 12 hours in a detailed quotation. We are the manufacturer of folder gluer machines, so we can produce any style of folder gluer machine as customer requirement, just give us your specification and pictures or offer us your budget, we can also design for you.



4.Quality-- Straight quality control system in production process, and professional QC in our factory for different customer.
