SQZX1150D Digital Display Double Worm Wheel Double Guide Paper Cutting Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $19500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Payment Terms:	T/T;
Dimension(LWH):	216267165CM;	Wind pump motor power:	0.75KW;
Core Components:	Motor,Engine;	Computerized:	Yes;
Max. workable width:	1150mm;	Warranty of core components:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Place of Origin:	Zhejiang China;
Voltage:	380V;	Supply Ability:	10 Set/Sets per Week;
Local Service Location:	Egypt,Italy,Morocco,Algeria,South Africa;	PLC Brand:	OTHER;
Video outgoing-inspection:	Provided;	Production Capacity:	45cycles/min;
Key Selling Points:	Easy to Operate;	Max cutting width:	115CM;
Warranty:	1 year;	Max cutting height:	16.5CM;
Cutting speed:	45cycles/min;	Brand Name:	PRINTYOUNG;
Port:	Shanghai or Ningbo;	PAPER CUTTING MACHINE OF COLOR:	WHITE AND GRAY;
Max cutting length:	116CM;	Applicable Industries:	Hotels,Garment Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Printing Shops,Food & Beverage Shops,Advertising Company;
Marketing Type:	New Product 2020;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	WOODEN CASE;	Showroom Location:	Egypt,Italy,Algeria,South Africa,Morocco;
Cutting motor power:	0.55KW;	Type:	Paper Cutting Machine;
Certification:	CE;	Machinery Test Report:	Provided;
Weight:	4000kg;

Product Description

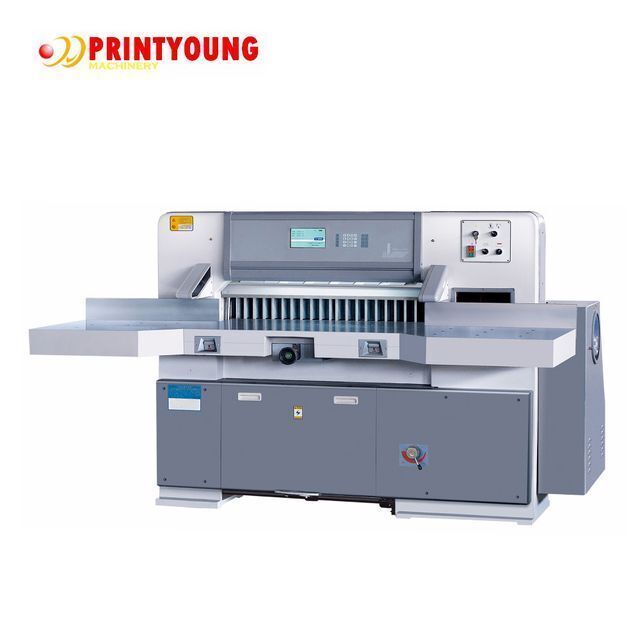

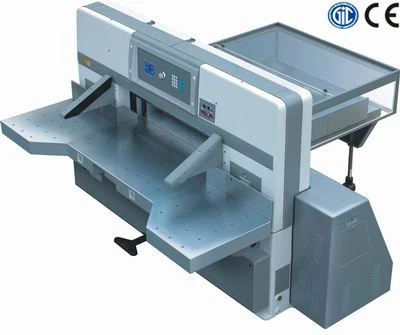

SQZX1150D Digital display double worm wheel double guide PAPER CUTTING MACHINE

PAPER CUTTING MACHINE OF Characteristic:

1. Usage: SQZX-D Liquid Digital Display Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2. Double worm wheel: Our factory is the only and the first factory have this technology, It approves the pressure. Double worm wheel has got patent in our country. The patent No. is : 200720192036.X

3. Double Guide Device: the paper pusher adopts double linear guide and roller ball screw. Our high rigidity linear guides design has its patent no: ZL 2005 2 0074357.0

4. Photo cell: it is equipped with a photo cell safety protection device.

5. over load protection device.

6. Convenient knife changing device.

7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

8. Air ball: air balls are installed in the worktable. In this way, the paper sending work will be easy and accurate.

9. Cutting controller: both of the hands of the user operate the machine. It can cut paper one time.

10. Safety notice & Glass covers: machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.

PAPER CUTTING MACHINE OF Model	SQZX1150D	Unit
Max cutting width	115	cm
Max cutting length	116	cm
Max cutting height	16.5	cm
Max clamping pressure	40000	N
PAPER CUTTING MACHINE OF Cutting speed	45	cycles/min
Sending paper motor power	4	kw
PAPER CUTTING MACHINE OF Cutting motor power	0.55	kw
Wind pump motor power	0.75	kw
PAPER CUTTING MACHINE OF Net weight	4000	kg
PAPER CUTTING MACHINE OF External dimension	216×267×165	cm
PAPER CUTTING MACHINE OF Packing dimension	260×157×200	cm
