Fully automatic machine for making disposable coffee cups

Supplier: Ruian Mingyuan Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr George Chi
Price: $7000.00 / 1 - 999 sets
$1000.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year, 1 year	Core Components Warranty:	1 year
Mechanical test report:	if	place of origin; place of origin:	Zhejiang, China
Voltage:	220V/380V or other requirements	Production capacity:	60-70 pieces/min
Product Category:	paper cup machine	Health status:	new
weight:	1700 kg	brand:	Mingyuan
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Core components:	machine
Working air source:	No need to provide air	After Warranty Service:	Video technical support
Rated Productivity:	75-85/min	Video external inspection:	if
Applicable industries:	manufacturing plant	Showroom location:	not any
Dimensions (LWH):	21009701700mm	GW:	1800KGS
northwest:	1700KGS	port:	Ningbo or other ports
Processing type:	origami machine	Supply capacity:	30 sets per month

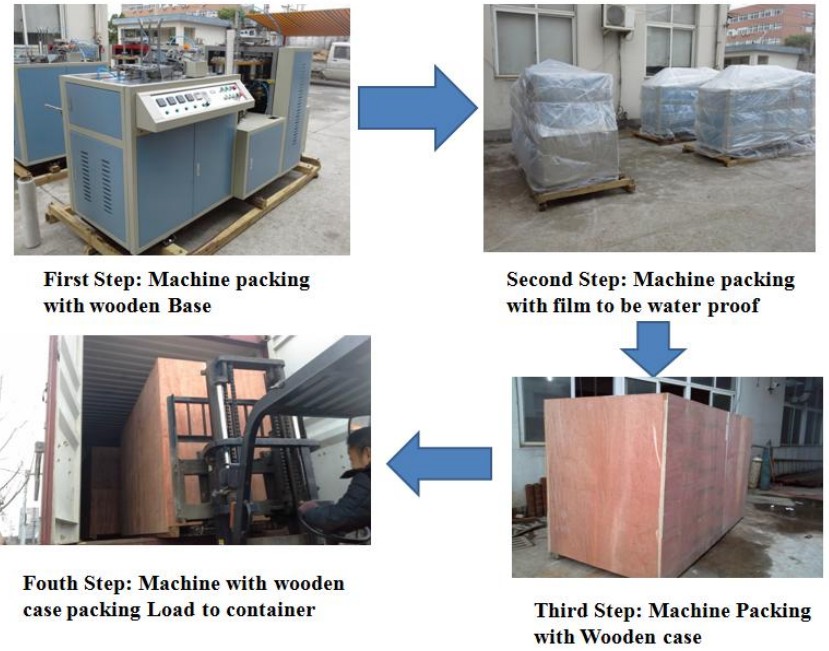

Marketing Type:	New Products 2020	Packaging Details:	Seaworthy wooden case (as per customer's request), packing dimensions (L x W x H): 2950 x 1360 x 1700 mm
Cup side welding:	copper heater	strength:	4.KW

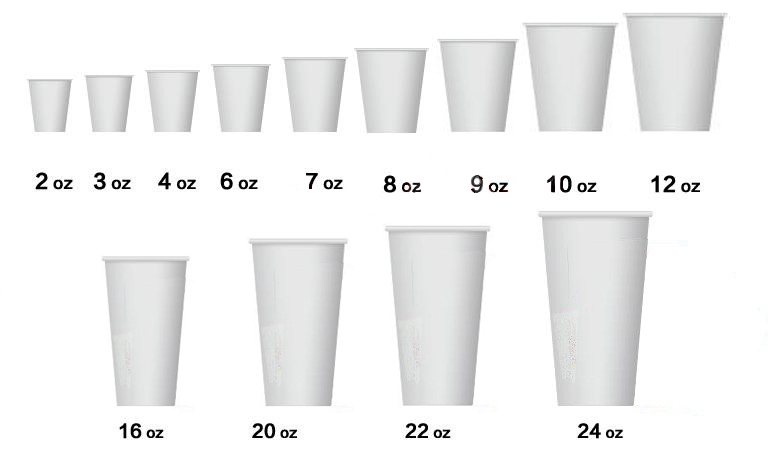

Paper cup size:	2 ~16 oz	Applicable paper weight:	140~350gsm

Model	High-speed veneer open cam paper cup machine JBZ-OCM12

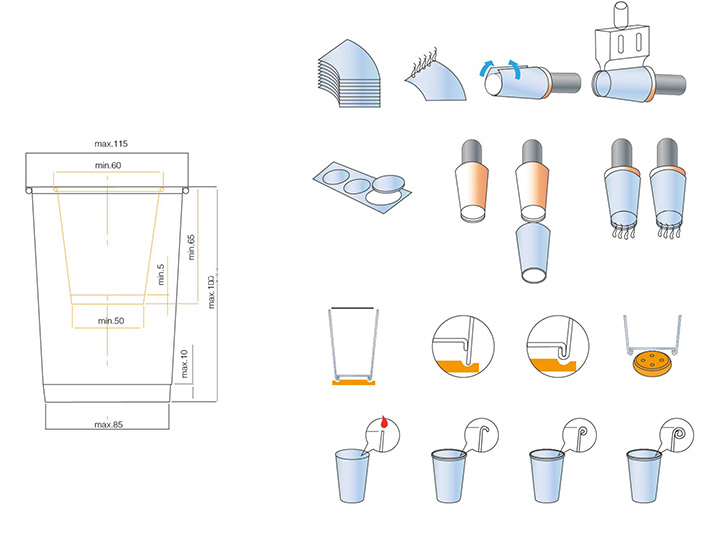

Paper cup size:	2 ~16 OZ (The mold can be replaced, the maximum cup height: 136mm, the maximum bottom width: 72mm)
Rated speed:	70-85 pcs/min (speed is affected by paper cup size, paper quality and thickness), 9OZ, 280GSM paper cups running at a steady speed of 80 pcs per minute
Raw materials:	Only one side PE coated paper (popular for hot drink cups)			Single-sided or double-sided PE coated paper (Popular hot and cold drink cups)
Applicable paper weight:	140~250gsm			140-350gsm
Energy source:	50/60HZ, 380V/220V (380V, 3-phase is best) or special power requirements.
Total power:	6.5kW		8.5kW
gross weight:	Gross weight/net weight: 1800KGS/1700KGS
Packaging size (LWH)	2100x970x1700mm(machine packing size), 1250x860x1860MM(counting machine packing size)
Working air source:	No need to provide air	Air pressure: 0.4Mpa; Air output: 0.6m³/min Need to buy air compressor (by user)
Cup side welding:	copper heater	Ultrasonic heater
Heating the bottom of the cup:	Heater knurling	1 side PE paper heating knurling; 2-sided PE paper through the cooling device (round water) knurled.
Bottom knurling:	Heater knurling (if using a single sheet of PE coated paper)

Using brand-name motors, the quality of accessories is guaranteed!

1 1 year warranty service.

2 free replacement parts within one year (free shipping).
3 parts providedfreeWithin 2 years, but not free shipping.

Remote coaching, save your time!

1 We provideOperation and maintenance discs.

2 When there is a problem with the machine, pleasetake a videoquestion and send it to us.
3 We will arrange professionalshelp youpass itvideoor documentation tutorial.

Q1. Are you a trading company or a manufacturer?

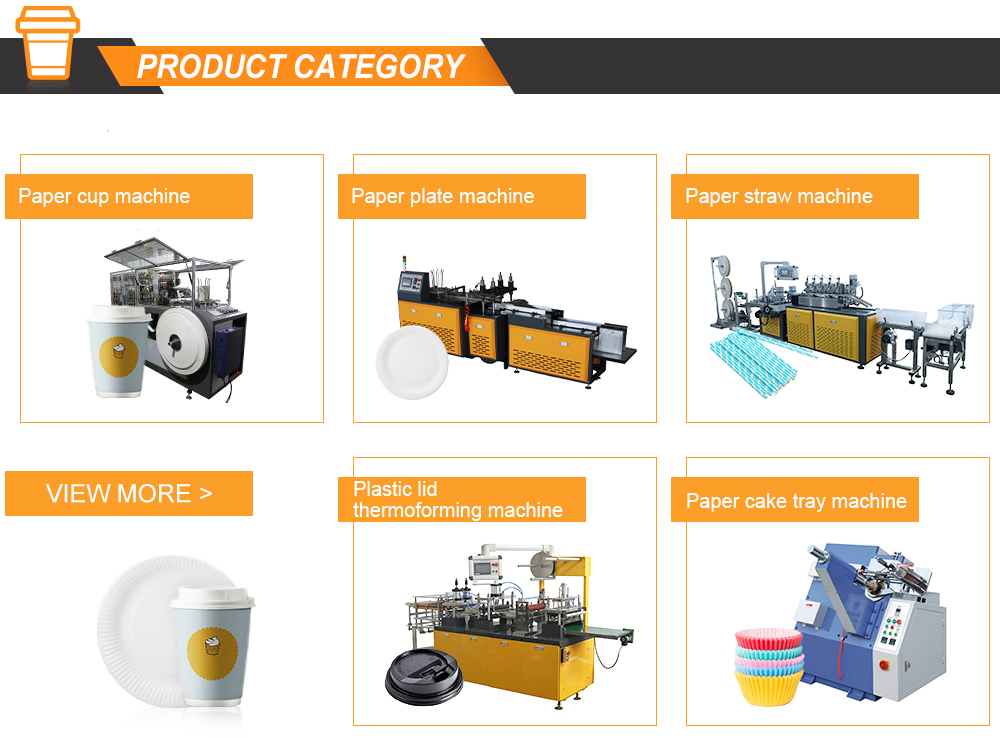

A: We are one of the leading manufacturers of paper products such as paper cup machines, plastic lid machines, paper plate machines, etc.
Chinese machinery.

Q2. Do you have a quality certificate?
A: Our machine got ce certificate.

Q3. What is the delivery time?
A: About 20~30 days, however, according to the order.

Q4. Where is your factory address?
A: We are located in Henghe Industrial Zone, Feiyun Street, Ruian City, Zhejiang Province, China. Our closest highway exit is
Feiyun, our nearest railway station is Ruian Station and our nearest airport is Wenzhou Airport.

Q5. How does your factory do in terms of quality control?
A: Quality comes first. Our factory attaches great importance to quality control from beginning to end:
1). Skilled workers handle every detail of the production and packaging process;
2). The quality control department is specially responsible for the quality inspection of each process.

Q6. What payment terms do you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
