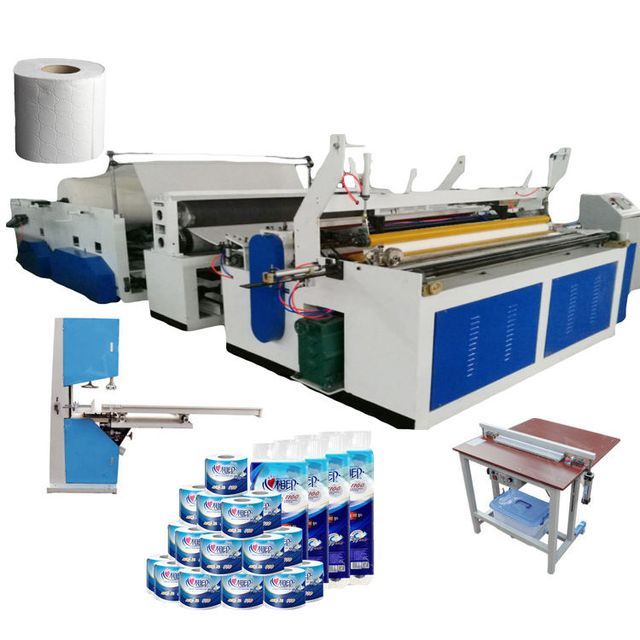

Small Manufacturing Machine Automatic Toilet Paper Rewinder Complete Equipment

Supplier: Henan Fuyuan Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Mr Andy Zhang
Price: $8999.00 / 1 - 2 sets
$6999.00 / 3 - 4 sets
$5999.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380V50HZ	Core component warranty:	1 year
weight:	2800 kg	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	Showroom location:	Turkey, Vietnam, Peru, Russia, Kenya, Argentina, UAE, Romania, South Africa, Uzbekistan, Malaysia
After-sales service provided:	online support	Embossed:	Steel Roller
raw material:	large roll of toilet paper	Perforation spacing:	80-220mm, 150-300mm
Mechanical test report:	if	Rear stand:	1-4 floors
Applicable industries:	Building Materials Store, Manufacturing Plant, Machinery Repair Shop, Food & Beverage Factory, Household, Food Store, Printing Shop, Construction, Energy & Mining, Food & Beverage Store, Tissue Making Machines	Speed of work:	30-50m/min
Package preview:		port:	Qingdao, Shanghai, Guangzhou
strength:	7.5 kW	Warranty:	1 year
Core components:	PLC, engine, motor, bearing, toilet paper machine	capacity:	2 tons/day
Marketing Type:	New product	Supply capacity:	25 sets per month
product name:	toilet paper machine	Packaging Details:	Toilet paper rewinder plastic film packaging, wooden box packaging or according to customer requirements
Dimensions (LWH):	600025001800mm	Product Category:	toilet paper
Origin:	Henan, China	Finished goods:	Toilet paper rolls, kitchen towels
Processing type:	Paper Slitter Rewinder	brand:	Rich source
Production capacity:	20-50m/min	Health status:	new
Base Diameter:	<1200mm

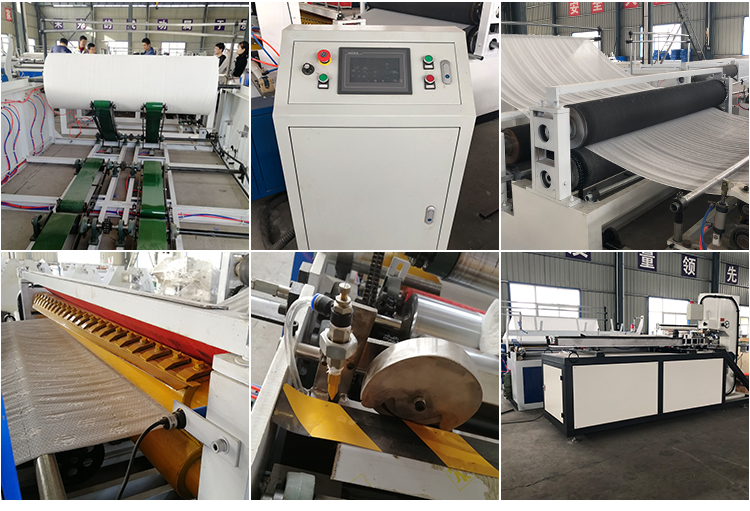

Machines and details and finished products

Product description and technical data

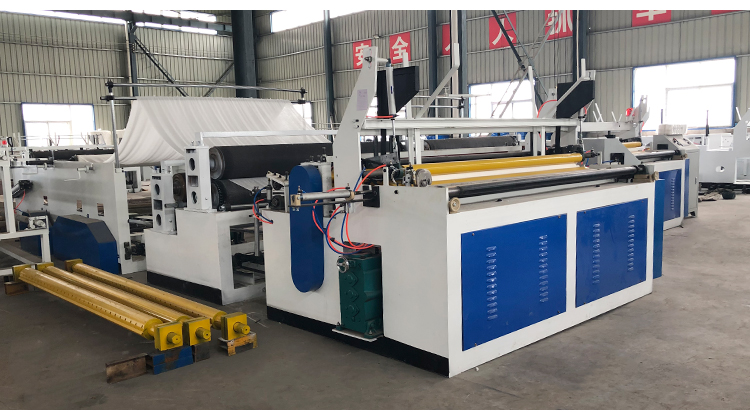

toilet paper rewinder

The fully automatic toilet paper rewinding machine is used for the production of toilet paper rolls and dining tables. It adopts new PLC computer programming technology, frequency conversion speed regulation, and automatic electronic braking. Support touch-type man-machine interface operating system. The coreless and cored paper rewinding forming system can be customized, and the embossing roller pattern can also be customized.

Model	FY-R1092	FY-R1575	FY-R1880	FY-R2400	FY-R2800	FY-R3000
base paper diameter	1200mm	1800mm	2200mm	2400mm	2800mm	3000mm
Base paper weight	12-40 g/m2 toilet paper jumbo roll
Raw paper width	less than 1200mm
Finished diameter	50-180mm
Finished paper core	Diameter 30-55mm
Jumbo paper core	76.2mm diameter
parameter setting	PLC computer operating system interface, touch screen
rear bracket	Layer 3 synchronous transmission
Perforation pitch	80-220mm, 150-300mm
Embossed	Steel coil, single embossed or double embossed
paper loader	Automatic pneumatic paper roll
Paper core feeder	Automatic dropping core (with or without core)
total power	4.5kW-10kW
Production speed	150-280m/min
Voltage	AC 380V, 50HZ
air pressure	0.5Mpa
aspect	6200-7500)mm(2600-3200)mm1750mm
weight	2500kg-3800kg

Features

1. Adopt PLC air column forming technology to achieve the characteristics of fast winding speed and beautiful forming. The automatic winding adopts PLC, automatically sends the finished product, immediately resets the winding, and automatically cuts the edge, glues and seals at one time. Sealing technology, easy to open. Realize no paper loss and reduce costs. 2. The base paper monitoring system is adopted, and the machine will automatically stop when the paper breaks. During the implementation of high-speed operation, the base paper is monitored to reduce the paper damage caused by the equipment and ensure the normal operation of high-speed operation. 3. Automatic core drop system and embossing system, which can produce cored and coreless toilet paper, reduce labor costs and make the finished product more beautiful. 4. High-precision spiral drilling knife, 3-knife with lower noise, adjustable hole distance, clearer and more beautiful drilling. 4. Three-layer synchronous conveying and unwinding, pneumatic paper loading, each layer of base paper has a tension adjustment device. 5. Adopt the jog switch to pull the base paper, the paper threading operation is simpler and safer.

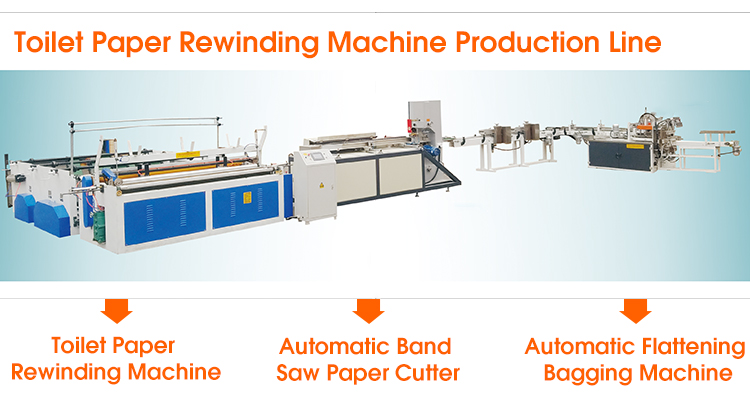

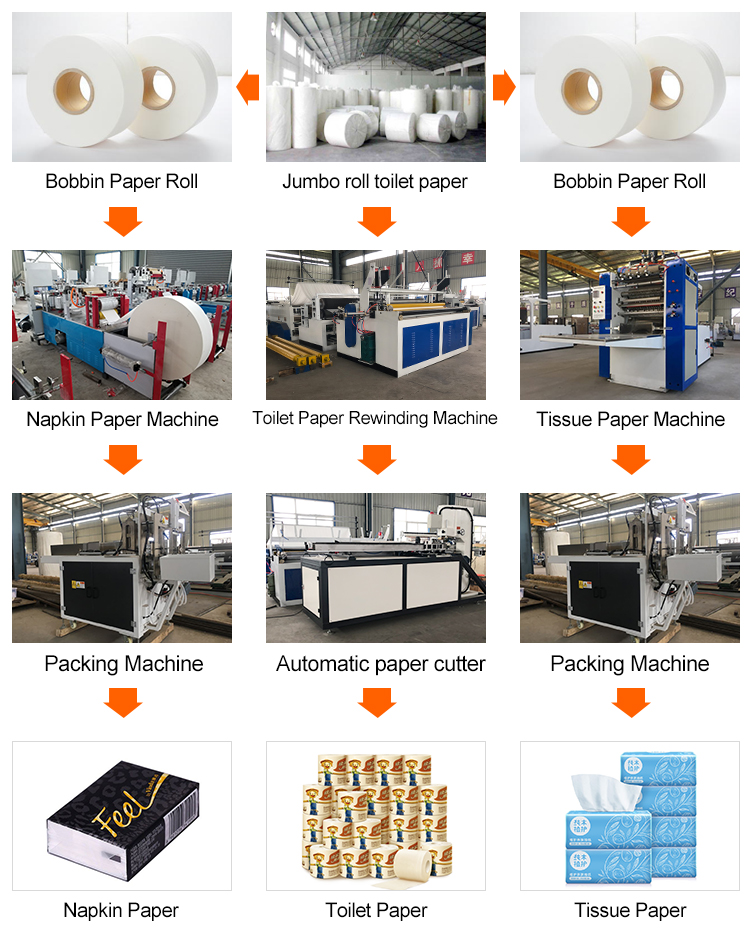

Machine production process
