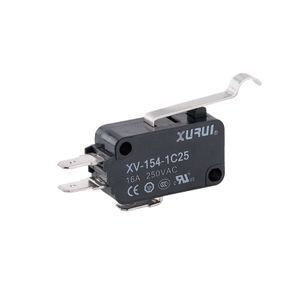

Honeywell Mini Snap Action Micro Switch

Supplier: Zhejiang Xurui Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Yang
Price: $0.25 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Packaging Detail:	Standard export carton. 100pcs in one box, 1000pcs/2000pcs in one carton. the delivery date depend on your quantity,we have stock for it.;	Brand Name:	XURUI or OEM;
Operating speed:	0.1mm-1m/s;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Certification:	CCC CE UL TUV;	Max. Voltage:	250VAC;
Rating:	16A 250VAC;	Material:	PBT cover and PC base;
Model Number:	XV-154-1C25 Electronic micro switch;	Protection Level:	IP40;
Operating Temperature:	-25 ~+80;	Electrical life:	100,000 times above;
Max. Current:	20A;	Port:	Ningbo or Shanghai;
Terminal:	4.8mm or 6.3mm terminal;	Supply Ability:	10000 Piece/Pieces per Day;
Place of Origin:	Zhejiang China;	Type:	electronic micro switch;
Contact Form:	SPDT 1C;	Mechanical life:	1,000,000 times above;
Color:	Black, Red or other color;

Property & Application

Adopt thermosetting plastic or thermoplastic;
Small contact gap, snap action, high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.

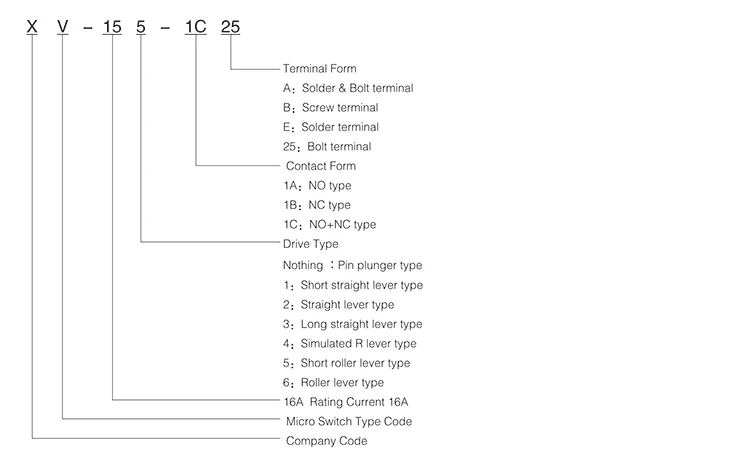

Model & Meanings

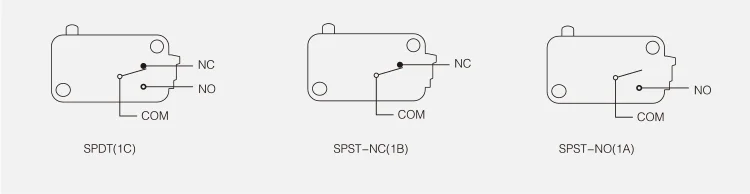

Contact Forms

Specification

Item		Data
Operating speed		0.1mm-1m/s
Operating frequency	Mechanical	600times/min
Operating frequency	Electrical	30times/min
Insulation resistance		100MΩAbove DC500V
Contact resistance		25mΩ initial value
Withstand voltage	Non-connection wire	1000VAC
Withstand voltage	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
Impact	Misoperation	300m/s²
Life	Electrical	100,000 above
Life	Mechanical	1,000,000 above
Protection degree		IP40
Operating temperature		-25~+80℃
Operating humidity		<85%

Rating

Ue (V)	Ie (A)	Ith (A)
AC-250	16	20

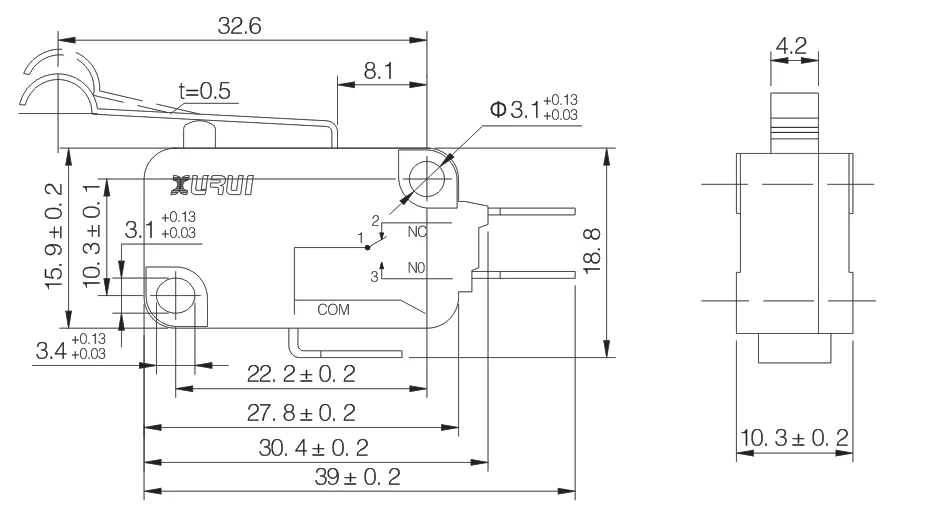

Mounting Hole Dimensions & Structure

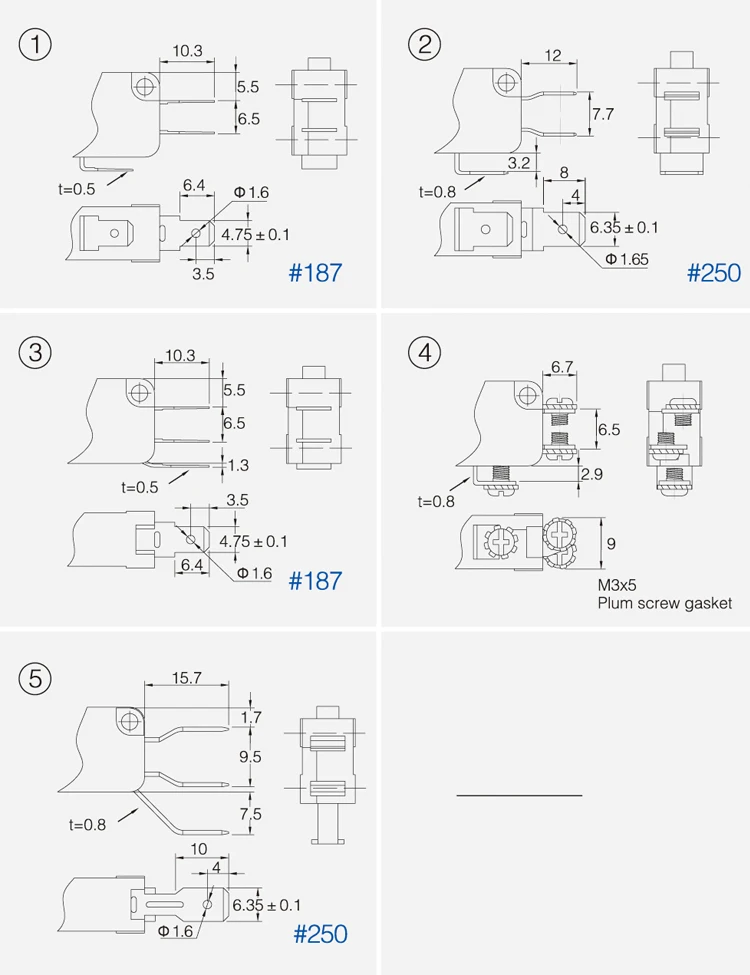

Terminal Forms

Dimensions & Operating Characteristics

OF MAX	125g (1.23N)
RF MIN	14g (0.14N)
PT MAX	2.8MM
OT MIN	1.0MM
MD MAX	0.8MM
OP	18.3±1.2MM

Packaging & Shipping

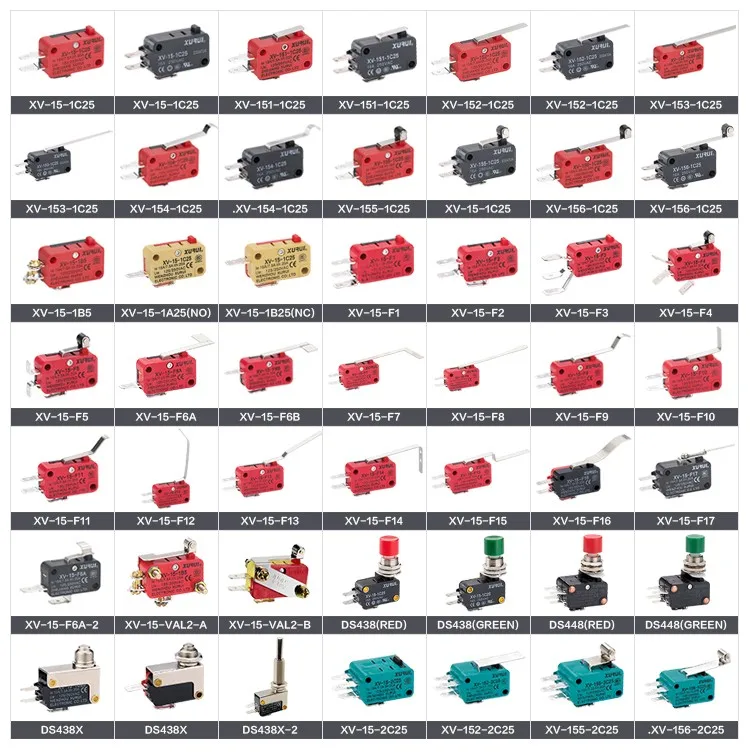

Related Products

Our Service

We could supply the above size of micro switch,and also could design the micro switch according to your detailed demands.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 7*24 provides product use consultation

* We offer replacement if you receive defective or wrong items in 12 months from the shipping date

Supplied directly from factory with more than 16 years experience.
New packing design and new product research development.
Accept to customize products up to specification.
Small order welcome.
Payment by Paypal, Western Union is supported.
Provide prompt service and after-sale service.

Why Choose Us

Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
Supplied directly from factory with more than 16 years experience.
New packing design and new product research development.
Accept to customize products up to specification.
Small order welcome.
Payment by Paypal is supported.
Provide prompt service and after-sale service.

Certifications

Zhejiang Xurui Electronic Co., Ltd is the vice precident of Electric Line Association, Technology Innovation Enterprise in Zhejiang province.

Xurui has won more than 30 kinds of national patents and three patents of invention.

Company

Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.

Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.

Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.

Main markets: Europe, America, Australia, Asia, Middle East and so on.

Production Process
