4-20ma mini air gas Pressure sensor

Supplier: Xi'an Yunyi Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Sunny Zhang
Price: $13.20 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Product name:	4-20ma mini air gas Pressure sensor;	Measuring range :	0....1bar 0....60bar;
Application temp.:	-40 ℃ ~ 125 ℃;	Housing protection:	IP65;
Accuracy:	0.5%FS;1%FS;1.5%FS;	Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;
Place of Origin:	Shaanxi China;	Output :	0-5V, 0.5-4.5V,1-5V;4-20mA,;
Brand Name:	yunyi;	Packaging Detail:	4-20ma mini air gas Pressure sensor standard export packing packed according to the clients' requirements;
application:	Water Oil Air Pressure Measurement Sensor;	Power supply:	5VDC, 12VDC, 24VDC, 36VDC;
Thread:	G1/4, G1/2 1/4NPT, 1/2NPT and others;	Model Number:	YD35;
Materialq:	ss304, ss316;

Description 4-20ma mini air gas Pressure sensor

4-20ma mini air gas Pressure sensor Integration with a piezoresistive ceramic pressure sensor, signal processing circuit imported from Germany dedicated chip, signal conditioning circuit reliability, redundancy and thermal design to ensure product reliability and consistency. Cycle fatigue pressures up to 10 million times.

Specification 4-20ma mini air gas Pressure sensor

Item	4-20ma mini air gas Pressure sensor
Range:	0….1bar 0….60bar
Accuracy:	0.5%FS;1%FS;1.5%FS
Nonlinear:	0.02%FS
Reliability:	0.05%FS
Output signal:	0-5V, 0.5-4.5V,1-5V;4-20mA,
Supply voltage:	5VDC ;24(12-36V)DC
Operating temperature :	-40℃~125℃
Compensated Temperature:	-10℃~70℃
Overload pressure:	150%FS
Dielectric material:	316SS
Electrical connection:	3 pin Packard connector
Pressure connection:	1/4NPT, 1/8-27NPT, 7/16-20UNF custom

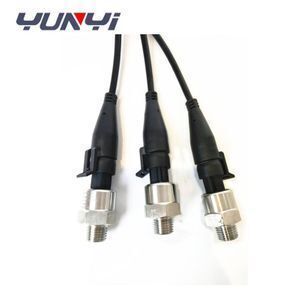

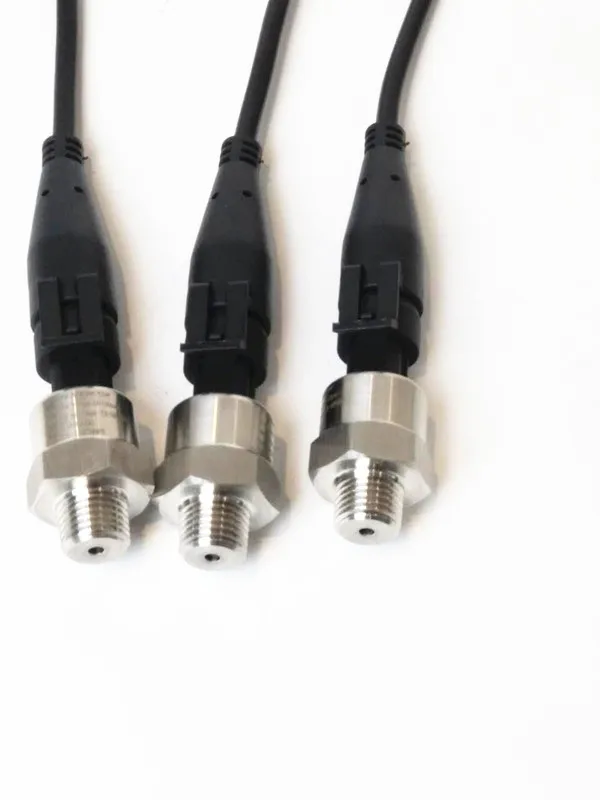

Detailed Images 4-20ma mini air, gas Pressure sensor

Features 4-20ma mini air gas Pressure sensor

using integrated piezoresistive ceramic pressure sensor
signal processing circuit ASIC imported from Germany
signal conditioning circuit reliability redundant design and thermal design
cycle fatigue pressures up to 10 million times

Applications 4-20ma mini air gas Pressure sensor

Automotive Oil Pressure
Car brake pressure
Motorized off-road equipment and industrial machinery
