Portable dry block Temperature calibrator

Supplier: Xi'an Yunyi Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Sunny Zhang
Price: $800.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	Portable dry block Temperature calibrator;	Supply Ability:	100 Piece/Pieces per Month temperature calibrator;
Stability:	±0.04℃ or ±0.1℃;	Temperature range:	-20~150C, 50~600C, 50~1000C, 300~1200C;
Well depth:	150mm or 200mm;	Accuracy:	0.2%;
Model Number:	W150, W600, W1000;	Brand Name:	Yunyi;
Place of Origin:	Shaanxi China (Mainland);	Wellhead size:	50mm;
Packaging Detail:	Portable dry block Temperature calibrator Standard Wooden Box;	OEM:	no;
Heat:	Semiconductor refrigeration or electric heating;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,dry block Temperature calibrator;
Warranty:	12 Months;	Port:	Tianjin, Qingdao, Shanghai, Shenzhen;
Delivery time:	7 days;

Yunyi Instrument

Product Description

Description of Portable dry block Temperature calibrator

Portable dry block Temperature calibrator adopts a high stability temperature controller, the heat block adopts a better thermal conductivity alloy material. Portable dry block Temperature calibrator is technically synchronous with the advanced technology at home and abroad, in the depth of the insert, the level of temperature field, the vertical temperature field and other technical aspects, it is leading level.

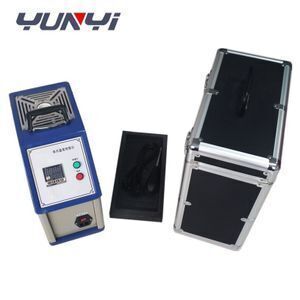

Detailed Images

Parameters

Parameters of Portable dry block Temperature calibrator
Model	W150	W600	W1000	W1200
Temperature range	-20~140℃	50~600℃	300~1000℃	300~1200℃
Heating source	Semiconductor refrigeration	electric heating	electric heating	electric heating
Accuracy	0.2%	0.2%	0.2%	0.2%
Stability	±0.04℃	±0.1℃	±0.1℃	±0.1℃
Horizontal temperature field	≤±0.25℃	≤±0.1℃	≤±0.3℃	≤±0.3℃
Well depth	150mm	200mm	200mm	200mm
Wellhead size	50mm	50mm	50mm	50mm
Hole size	φ9×6	φ9×4	φ9×6	φ9×6
Power	400w	400w	500w	500w
Power supply	220v50hz	220v50hz	220v50hz	220v50hz

Feature

Portable dry block Temperature calibrator Features

1. A variety of insert tubes, to meet the different size and quantity of sensors testing and calibration.

2. Heating rate can be adjusted according to user's demand.

Portable dry block Temperature calibrator application

Used in the required temperature range, it is easy to set and accurately produce the required temperature.It has the characteristic of small volume, fast heating, stable temperature control, no pollution, etc.The temperature sensor and instrument can be integrally calibrated, so it is easy to carry, easy to use, easy to fast and reliable temperature calibration. It is widely used in machinery, chemical, food, pharmaceutical and other industries.
