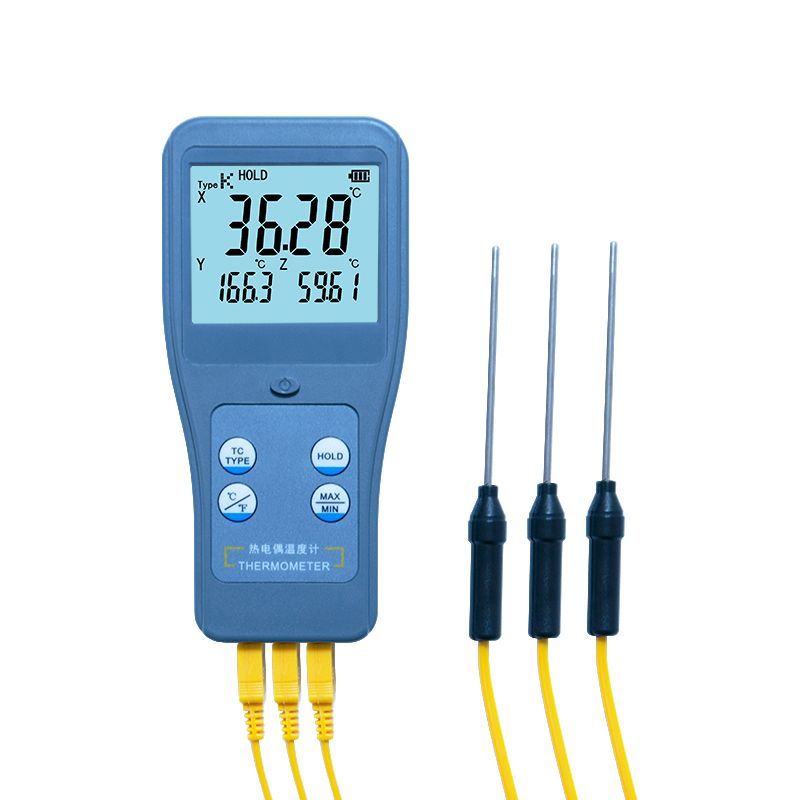

RTM-1103 Digital Three Channels Contact Thermocouple Thermometer

Thermocouple Thermometer RTM-1103

1.Introduction:

It is a high-precision of 3-channel thermocouple thermometer, which uses thermocouples as sensors to measure temperature signals, can meet the needs of different industries. Used to measure the temperature of liquids, gases, solids and surface temperature. And there are a variety of thermocouple types to choose from, which are widely used in industrial production, research and development experiments, quality control, refrigerated storage, automobile manufacturing and other occasions.

2.Features:

•  Large LCD with display. It can display three values at the same time.

•  Thermocouple(K/J/E/T/R/S/N) temperature measurement.

•  The types of 3-channel thermocouple are switched simultaneously.

•  Temperature unit (°C/°F).

•  0.01 resolution.

•  High accuracy.

•  With maximum and minimum values display function.

•  With the displayed values hold function.

•  With battery indication function.

•  With automatic power off function.

3.Specifications:

Display: Backlit LCD

Range: E-type: -238~1832°F (-150~1000°C);

            J-type: -346~2192°F (-210~1200°C);

            K-type: -328~2501°F (-200~1372°C);

            N-type: -328~2372°F (-200~1300°C);

            R-type: 32~3212°F (0~1767°C);

            S-type: 32~3212°F (0~1767°C);

            T-type: -418~752°F (-250~400°C)

Resolution: -100~+100, 0.01; Other, 0.1

Temperature Unit: °F/°C

Sampling Channel: 3 Channels

Display Value Hold: √

Open Thermocouple Indication: √

Maximum and Minimum: √

Automatically Power Off: √

Operating Conditions: Temperature: 32°F~122°F (0°C~50°C); Humidity: <80%RH

Storage Conditions: Temperature: 14°F~140°F (-10°C~60°C); Humidity: <90%RH

Power Supply: 4×1.5V AAA(UM-4) Battery

Size: 170×80×31mm

Weight: 191g(Not Including Batteries)

Standard Accessories: Main Unit ×1, TP-02 Thermocouple ×3, Manual ×1, Carrying Case ×1
