2020 absolute gauge smart pressure transmitter

Supplier: Xi'an Yunyi Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Sunny Zhang
Price: $18.30 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

MOQ:	1 pc;	Place of Origin:	Shaanxi China;
Supply Ability:	1000 Piece/Pieces per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Model Number:	YD31;	Product Name:	2020 absolute gauge smart pressure transmitter;
Output signal:	4-20mA, 0-5V, or 0-10v;	Warranty:	1 year;
Thread connection type:	1/8, 1/4, 1/2 , M20*1.5 or others;	Accuracy:	0.1%, 0.25%, 0.5%;
Input power:	24vdc;	Port:	Any port of China;
Brand Name:	Yunyi;	Packaging Detail:	2020 absolute gauge smart pressure transmitter Standard export package;

2020 absolute gauge smart pressure transmitter

Description absolute gauge smart pressure transmitter

Absolute gauge smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term stability.

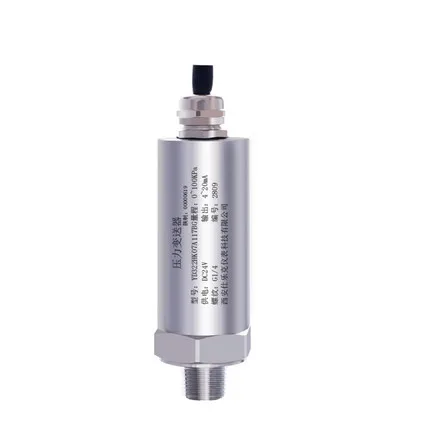

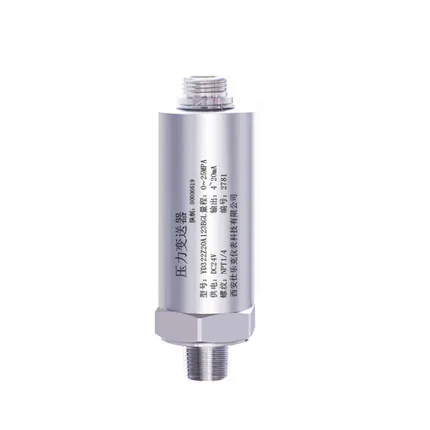

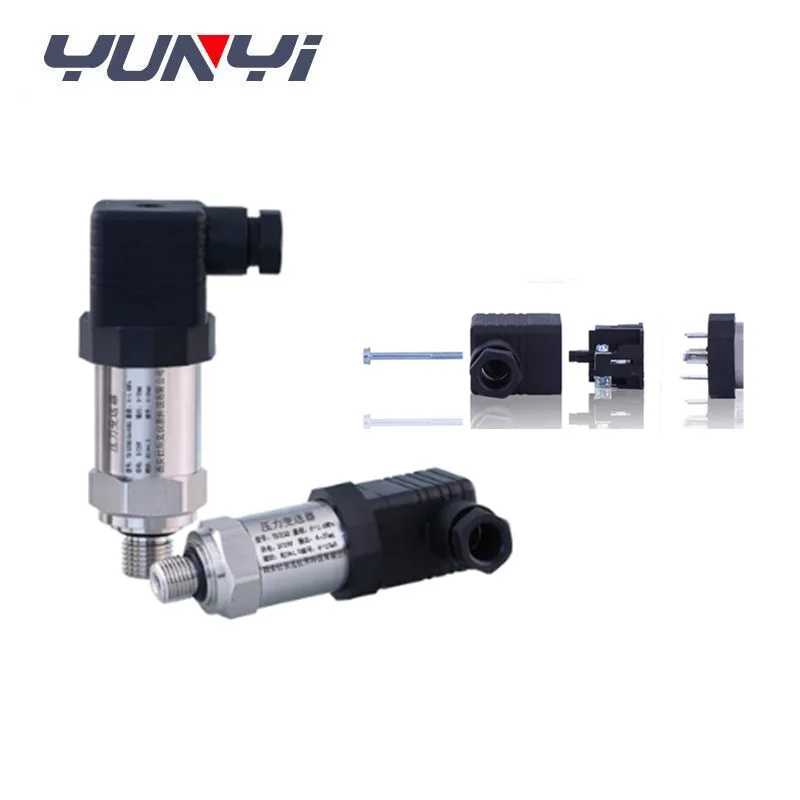

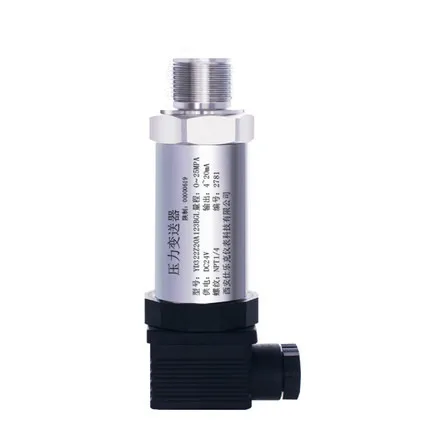

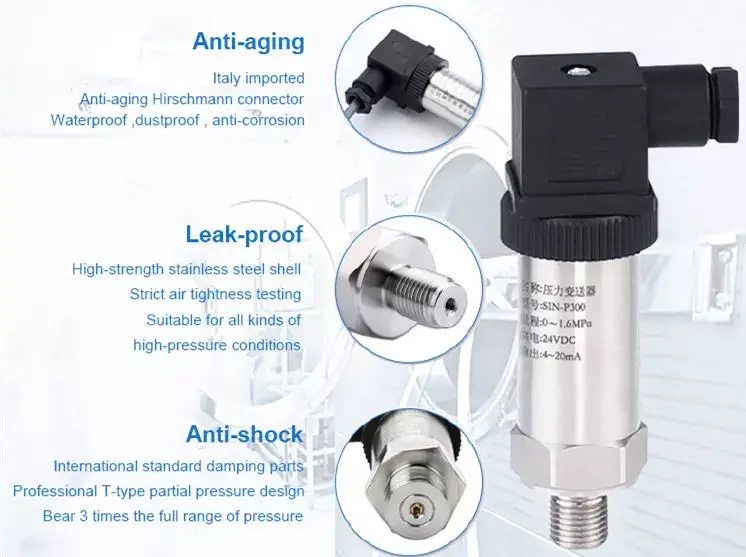

Detailed Images absolute gauge smart pressure transmitter

Specification absolute gauge smart pressure transmitter

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

Features absolute gauge smart pressure transmitter

Piezoresistive pressure sensor

Pressure range: -100kPa~0...0~10kPa...100MPa

Gas or dilute liquid compatible with 316LSS

High reliability and stability

Output signal optional

Connection mode of connector or lead direct

Can add adjustable zero and full function as customer’s request

A variety optional of pressure interface

Applications absolute gauge smart pressure transmitter

Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.

Selection Guide absolute gauge smart pressure transmitter

Model YD31
	Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
		Pressure type G Gauge D Differential A Absolute
			Output signal E 4-20mA F 0-5Vdc J 1-5Vdc K 0-10Vdc V 1-10Vdc
				Power Supply A1 10~36VDC
					Electrical Interface B1 Hirschman connector B2 Directly cable connection B3 Pin aviation connector
						Display D1 No display D2 LED display
							Pressure Interface C1 1/2NPTM C2 1/4NPTM C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized

Feedback china supplier smart 4-20ma pressure transmitter price

FAQ

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
