High Quality gas back pressure regulator for industrial field
-
Supplier: Xi'an Yunyi Instrument Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Sunny Zhang -
Price: $178.30 /piece -
Min. Order: 1 piece
| Port: | Any port of China; | Packaging Detail: | High Quality gas back pressure regulator for industrial field foam packaging for Internal ,carton package for external; |
| Delivery Detail: | About 7 days; | Supply Ability: | 20 Piece/Pieces per Week; |
| Weight: | About 1.5 kg; | CV value: | 0.2; |
| Place of Origin: | Shaanxi China (Mainland); | Material: | Stainless steel; |
| Maximum input pressure: | 6000 psi; | Model Number: | YR32; |
| Leak rate: | 2x10-8 atm cc/sec He; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Package size: | 17cm*17cm*17cm; | Applicable temperature: | -40℉~+165℉(-40℃~+74℃); |
| Safety test pressure: | 1.5 times max inlet pressure; | Brand Name: | Yunyi; |
High Quality gas back pressure regulator for industrial field
Description gas back pressure regulator for industrial field
YR32 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

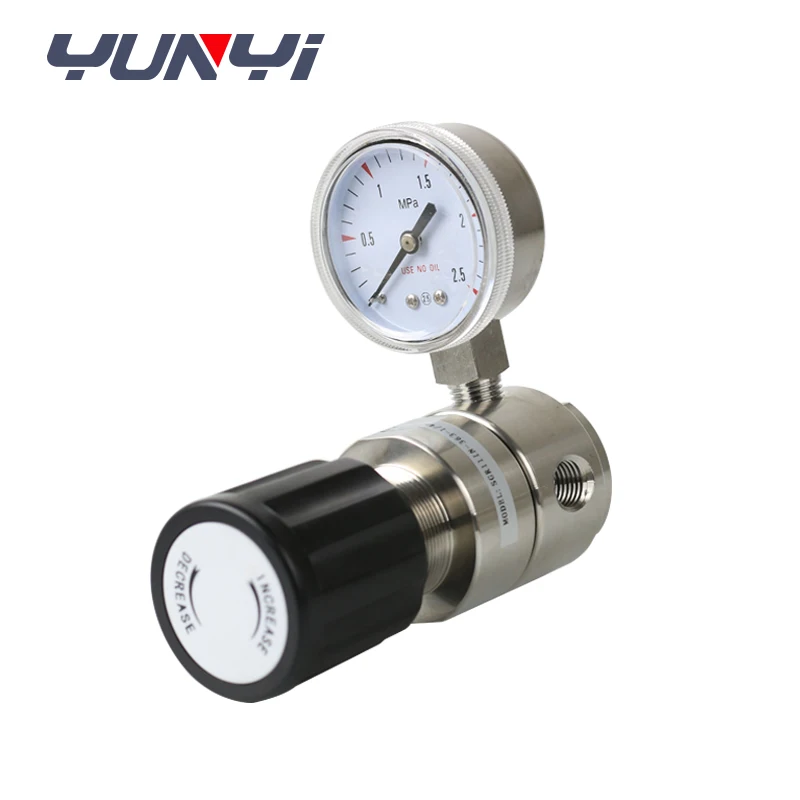

Detailed Images gas back pressure regulator for industrial field
Specification gas back pressure regulator for industrial field
The maximum input pressure: 6000 psi
Safety test pressure: 1.5 times max inlet pressure
Applicable temperature: -40℉~+165℉(-40℃~+74℃)
Leak rate: 2x10-8 atm cc/sec He
CV value: 0.2
Weight: About 1.5 kg
Package size: 17cm*17cm*17cm
Material: Stainless steel.
Features gas back pressure regulator for industrial field
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Applications gas back pressure regulator for industrial field
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide gas back pressure regulator for industrial field
Model | Valve material | Inlet pressure | Pressure gauge | Inlet port | Outlet port |
YR32 | 316L | 0-500psig 0-100psig 0-1500psig 0-2500psig 0-3000psig | l With gauge (mpa) l With gauge (psig/bar) l Without gauge | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |

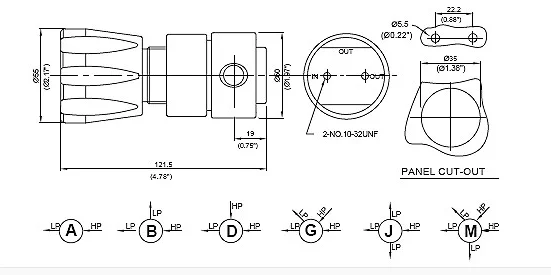

Outline drawing gas back pressure regulator for industrial field
