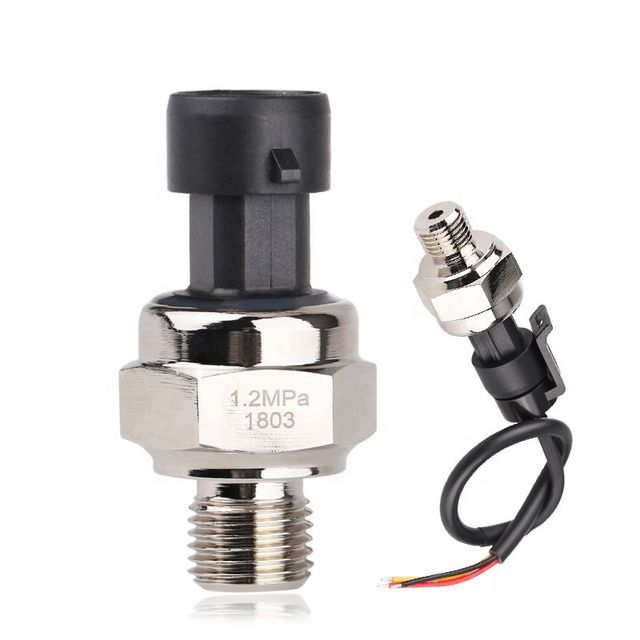

Pressure sensor transmitter sensor G1/4 1.2Mpa stainless steel

Supplier: Shenzhen Kuongshun Electronic Business Department
Region: Guangdong, China
Contact: Ms Candice Li
Price: $5.00 / 2 - 49 sets
$4.13 / 50 - 199 sets
$4.03 / 200 - 999 sets
$4.00 / >=1000 sets
Min. Order: 2 sets

Click here to contact

Product details

Breaking pressure:	3.0 MPa	Origin:	Guangdong, China
model:	NB161	product name:	Pressure sensor transmitter sensor G1/4 1.2MPa stainless steel
brand:	Guangshun	Packaging Details:	high quality packaging
payment terms:	Western Union, T/T, Alibaba Trade/WeChat/Alipay/Paypal/Bank Transfer	The output voltage:	0.5-4.5V
greatest pressure:	2.4 MPa	Customization support:	Newton/meter
Temperature range error:	±5%FSO 11	Working pressure range:	0～1.2MPa
temperature:	0～85℃	port:	Shenzhen/Hong Kong
Warranty:	other	Working current:	≤10mA
Item No.:	NB161	Operating Voltage:	5V
Supply capacity:	10000 pieces per month

Contact us for cheaper shipping

1. It is suitable for various hydraulic and pneumatic pressure measurements of wall-hung boilers, gas generators, gas storages, etc.
2. Suitable for civilian product batches
3. Static accuracy: plus or minus 1.0%FS
4. Pressure range 0-1.2MPa (can be customized according to customer requirements)
5. Wide temperature compensation range
6. The medium is non-corrosive gas, water, oil, etc.
Typical application: pressure measurement of non-corrosive liquids
Specification:
Working voltage: 5VDC

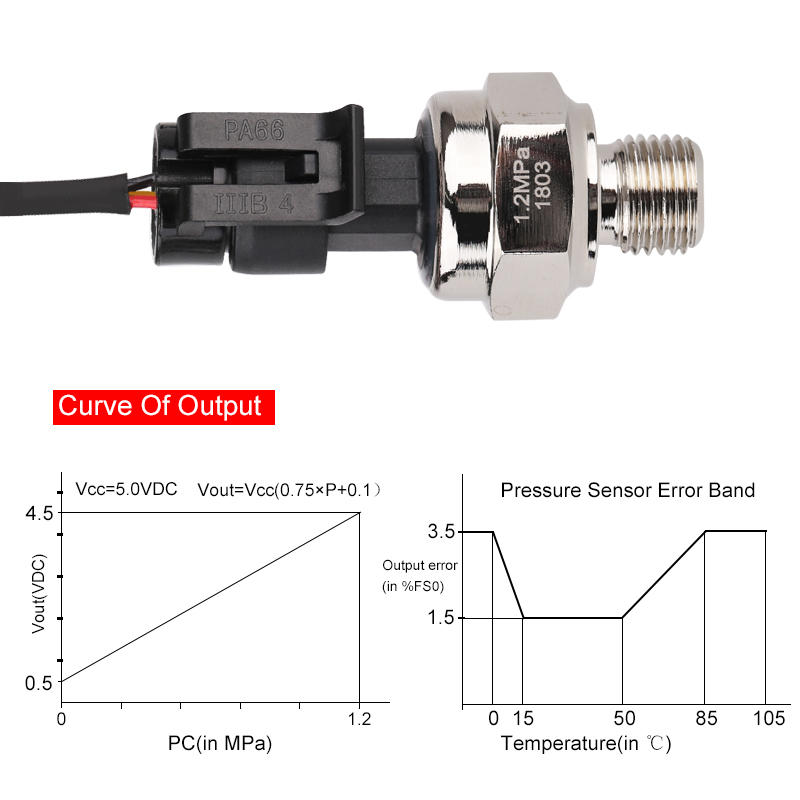

Output voltage: 0.5-4.5VDC
Sensor material: stainless steel
Working current: ≤10mA
Working pressure range: 0-1.2MPa
Maximum pressure: 2.4MPa
Cable length: 19cm
Breaking pressure: 3.0MPa
Working temperature range: -40~125 degrees
Storage temperature range: -40~130 degrees
Measurement error: ±1.5%FSO
Temperature range error: ±3.5%FSO
Response time: ≤2.0ms
Cycle life: 500,000 pieces
Application: non-corrosive gas liquid measurement
feature:

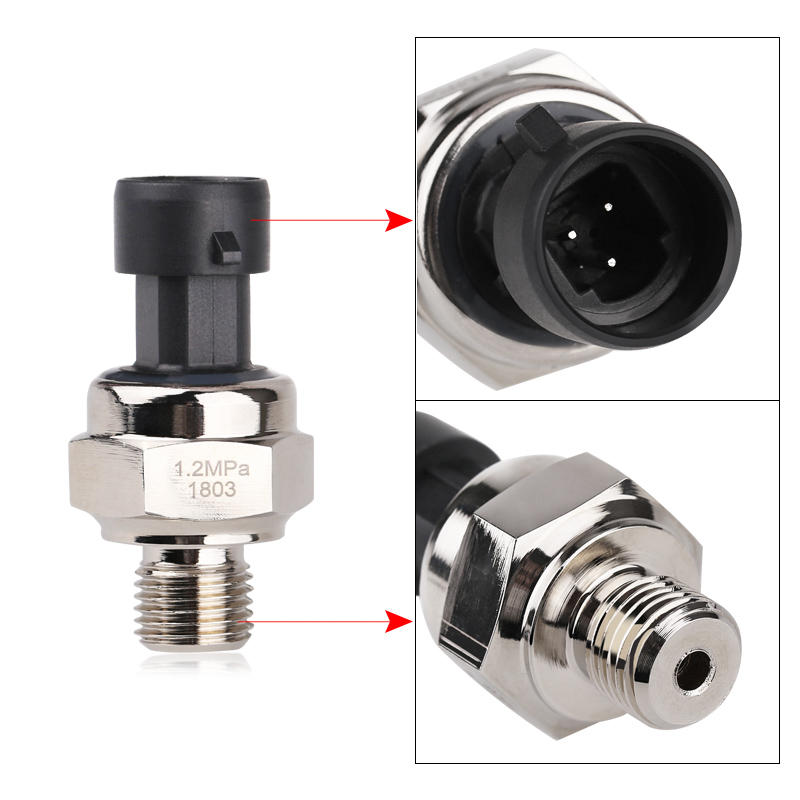

It is easy to disassemble and the stainless steel connection is stronger.
Durable stainless steel, sealed waterproof line, imported chips.
