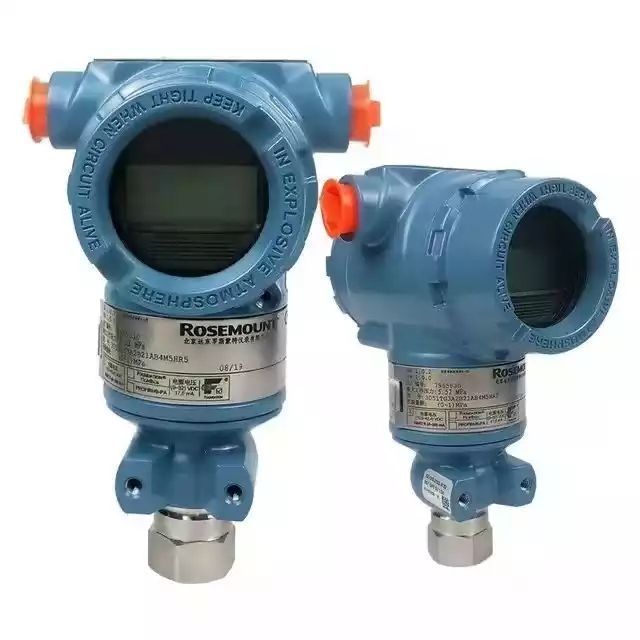

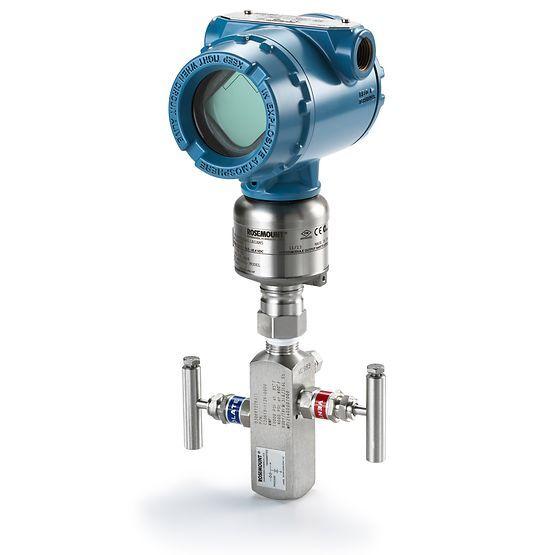

3051 mounting pressure transmitter hauser pressure transmitter

Supplier: Anhui Xuner Instument Science & Technology Co., Ltd.
Region: Anhui, China
Contact: Ms Chris Tu
Price: $280.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	rose hill	Mounting brackets:	316 stainless steel
Power supply voltage influence:	0.005% span per volt	Origin:	U.S.
output signal:	4~20mA	Packaging Details:	carton
Measuring range:	0.1...0..100MPA	net weight:	8.3 lbs (3.8 kg). with aluminum housing
Electrical output signal:	DC 0 ... 10	model:	3051CG1A22A1AB4K5M5HR5
Supply capacity:	10000 pieces per year	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Operating temperature:	40~85℃	power supply:	24V DC
product name:	Rosemount Pressure Transmitters	port:	Shanghai

Product Description

analog output digital communication	3051TG1/3051TA5/3051TG4/3051TGG2/3051GP4/3051GP2A2B21AB4K5M5HR5/3051TG Rosemount Pressure Transmitter
Material	STA800: 316L Stainless Steel, Hastelloy, Monel, Tantalum, Gold Plated 316L Stainless Steel, Gold Plated, Aluminum, etc.
fill fluid	Silicone 200, CTFE or Silicone 704
Maximum turndown ratio	100:1
Stability (% URL/year)	0.015, 0.030
Reference Accuracy1,2 (% span)	0.055 / 0.025%, 0.055 / 0.04%
Humidity%RH	0 to 100
voltage Load Resistance	10.8 to 42.4 Vdc at terminals (IS version limited to 30 Vdc) 0 to 1,440 ohms (as shown in Figure 2)
maximum allowable work pressure	STG830: 50 psi (3.5 bar) STG83L: 50 psi (3.5 bar) STG840: 500 psi (35 bar) STG84L: 500 psi (35 bar) STG870: 3000 psi (210 bar) STG87L: 3000 psi (210 bar) STG88L: 6000 psi (420 bar) STG89L: 10000 psi (690 bar)
wiring	16 AWG (1.5 mm diameter)
Install	Mounting brackets
net weight	8.3 lbs (3.8 kg).
Approval certificate	FM ApprovalsTM, CSA, ATEX IECEx (World), IECEx (World), INMETRO (Brazil), NEPSI (China), GOST

selection

Model	url "H2O (mbar)	LRL "H2O (mbar)	maximum span "H2O (mbar	minimum span "H2O (mbar)
STG830/STG83L	50(3.5)	-14.7 (-1.0)	0.5(0.35)	100:1
STG840/STG84L	500(35)				5 (0.350
STG870/STG87L	3000(210)				30(2.10
STG88L	6000(420)				60(4.2)
STG89L	10000(690)				100(6.9)
