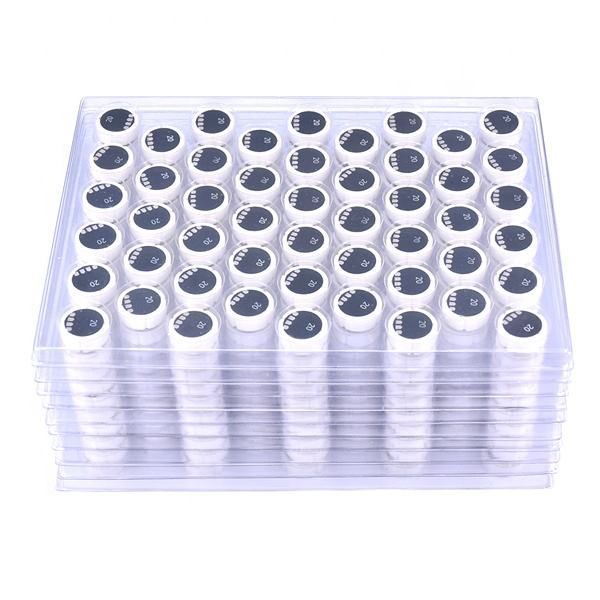

High quality OEM low cost piezoresistive ceramic pressure sensor
- 1.90 100 - 4999 pieces
- 1.80 5000 - 9999 pieces
- 1.75 >=10000 pieces
| power supply: | 5-30VDC | Origin: | China Shanghai |
| brand: | Ben Xu | Full range signal output: | 2mV-4mV/V |
| Materials in direct contact with liquids: | Al203-96% | range of working temperature: | -40 to +135°C |
| Bridge resistance: | 11 kΩ±30% | Package preview: | |
| Customization support: | OEM,ODM,OBM | port: | Shanghai, Shenzhen, Ningbo |
| diameter: | 18 mm or 13.5 mm | model: | BX-PSC18 |
| Packaging Details: | Plastic bag, then solid carton. | Supply capacity: | 50000 pieces per day |
| payment terms: | L/C, Western Union, T/T | Electrical connections: | No pads, pins or cables |
| Temperature drift: | ≤±0.03%FS/℃ | Pressure range: | 2-600bar gauge pressure |
| Storage temperature range: | -55 to +150°C | Warranty: | 3 years |
Why choose Benxu?
♦ Always focus on sensor production
♦TonHe YiEstimated quality at reasonable factory direct prices
♦ Has passed CE, RoHS and other certificates
♦ 18-month warrantyfrom delivery date
Do you care about the following questions after placing an order?
♦quality problem?
BENXU signs an 18-month quality guarantee with you.
♦The price?
If you think the price is higher for the same top quality compared to others, we will refund you.
♦after sales question?
Man-made damage: technical support will be provided.
Quality problem: free repair or replacement within 18 months.
♦Unable to deliver in time or other issues?
Continue Online Trade Assurance:
Technical Parameters:
|
pressure range |
2-600bar |
||||||||||||||
|
pressure type |
relatively |
||||||||||||||
|
power supply |
5-30VDC |
||||||||||||||
|
Full scale signal output |
2mV-4mV/V |
||||||||||||||
|
Bridge resistance |
11 kΩ±30% |
||||||||||||||
|
zero drift |
≤±0.2mv/V |
||||||||||||||
|
Insulation resistance |
>2KV |
||||||||||||||
|
zero point long-term stability |
± 0.2% of full scale |
||||||||||||||
|
Materials in direct contact with liquids |
Alumina Al203-96% |
||||||||||||||
|
range of working temperature |
-40 to +135°C |
||||||||||||||
|
storage temperature range |
-55 to +150°C |
||||||||||||||
|
temperature drift |
≤±0.03%FS/℃ |
||||||||||||||
|
Relative humidity |
0-100% |
||||||||||||||
|
Range (bar) |
2 |
5 |
10 |
20 |
30 |
40 |
50 |
70 |
100 |
200 |
300 |
400 |
500 |
600 |
|
|
Burst pressure (bar) |
6 |
15 |
30 |
60 |
Post-90s |
100 |
125 |
175 |
200 |
350 |
450 |
550 |
650 |
750 |
|

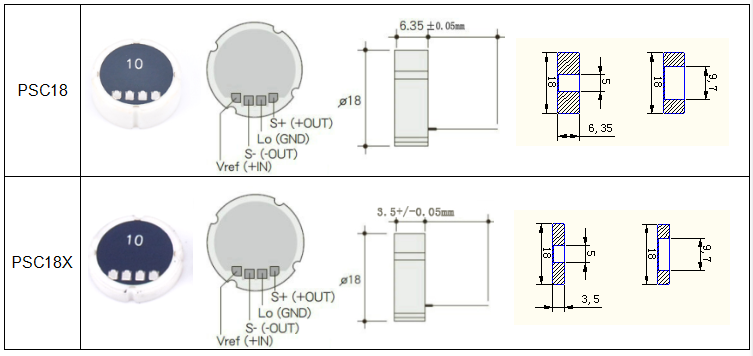

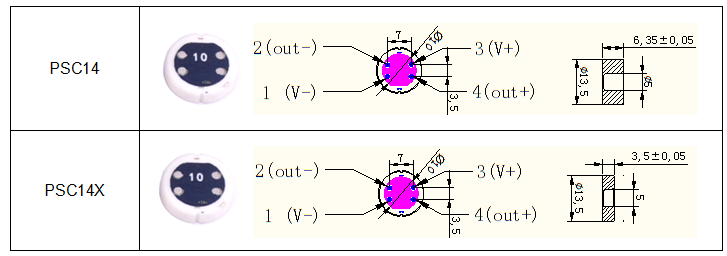

Wiring diagram and dimensions:
|
model. |
Pad |
Range |
diameter and height |
hole size |
|
BX-PSC14 |
separate type |
If 10bar, it will display: 10 |
Ø13.5x6.35mm |
2-600bar: 5mm |
|
BX-PSC14X |
separate type |
If 10bar, it will display: 10 |
Ø13.5x3.5mm |
2-600bar: 5mm |
|
BX-PSC18 |
lying next to |
If 10bar, it will display: 10 |
Ø18x6.35mm |
2-30bar: 9.7mm 50-600 bar: 5mm |
|
BX-PSC18X |
lying next to |
If 10bar, it will display: 10 |
Ø18x3.5mm |
2-30bar: 9.7mm 50-600 bar: 5mm |
Dimensional drawing (unit: mm):
