0-100Mpa Metal Case Battery-powered Digital Pressure Gauge

Supplier: Shanghai Benxu Electronics Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms Mandy Li
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai China (Mainland);	Payment Terms:	L/C,T/T,Western Union,Paypal;
Long-term Stability:	0.2%FS/year;	Packaging Detail:	Small box,and then standard solid carton.;
Display Unit:	MPa, kPa, PSI, BAR, kgf/cm2;	Accuracy:	0.25%FS;0.5%FS;
Supply Ability:	50000 Piece/Pieces per Month Metal Case Battery-powered Digital Pressure Gauge;	Backlight Color:	White;
Pressure Range:	0-100Mpa(Optional);	Pressure Type:	gauge pressure or absolute pressure;
Port:	Shanghai, Ningbo, Shenzhen or any other port in China;	Brand Name:	BENXU;
Delivery Detail:	7-12 business days upon receipt of the payment;	Overload Capacity:	150%;
Display Mode:	4 Digit LCD Display;	Working Temperature:	-20℃ to 70℃;
Thread:	G1/4;NPT1/4 etc (Customization);	Model Number:	BX-DPG80P;

Our Advantages

Why choose BENXU?

♦ Focus on Sensor Production all the time

♦ The Best Quality with Reasonable Factory Directly Price

♦ Have Passed CE,RoHS etc Certificates

♦ 18 Months Quality Guarantee Starting from the Date of Delivery

Do you care about followings after place an order?

♦ Quality problem?

BENXU signs the 18 months warranty of quality with you.

♦ Price problem?

If think price is higher at same top quality by comparison with others,we will refund you.

♦ After sale problem?

Artificial damage:will offer technical support.

Quality problem:will do repair or offer replacement without any cost within 18 months.

♦ Can’t deliver in time or some other problems?

Go ahead with Trade Assurance Online:

Product Description

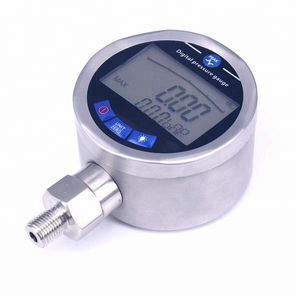

DPG80P is a battery-powered intelligent digital pressure gauge,it has a very high precision sensor and display pressure accurately in real time,equipped with a large size LCD,with the function of zero clearing,backlight,ON/OFF button,units changing,low voltage alarm,peak record(the maximun and minimum) and peak clearance,and it’s easy to install and operate,can measure any non-corrosive medium which is compatible with stainless steel.

Applications:

1, Machinery and Electronic Industry

2, Pressure Laboratory

3, Replacement of Pointer Pressure Gauge

4, Supporting Equipment of Instrument

5, Mechanical Engineering Automation

Technical Parameters:

Pressure Range	0-100Mpa
Overload Capacity	150%
Accuracy	0.25%FS;0.5%FS
Display Unit	MPa,kPa,PSI,BAR,kgf/cm2
Pressure Connection	G1/4;NPT1/4;NPT1/8;G1/2 etc
Input Voltage	3V(two 1.5V batteries)
Sampling Frequency	5 Times/Second
Long-term Stability	0.2%FS/year
Working Temperature	-20℃ to +70℃
Compensation Temperature	0 to 60℃
Case and Thread	Stainless Steel
Protection Class	IP65
Size	Thickness: 46mm(18.1inch); Outline Dimension: 80mm(31.5inch); Length: 120mm(47.2inch)
Protection for Pressure Gauge	Plastic Protection Cover(Optional)

Button Description:

Power button: press power button continuously for 3 seconds to Turn On or Turn Off;

UNIT button: shortly press Unit button to change the unit;

ZERO button: pressure Zero button continuously for 3 seconds for zero clearing;

LIGHT button: short press to turn on and turn off,long press Light button to set the time for background light,first it can set for single digit,when you press UNIT button,and then will set the tens digit.

Peak Button: press peak button to display MAX value,and press peak button again to display MIN value.

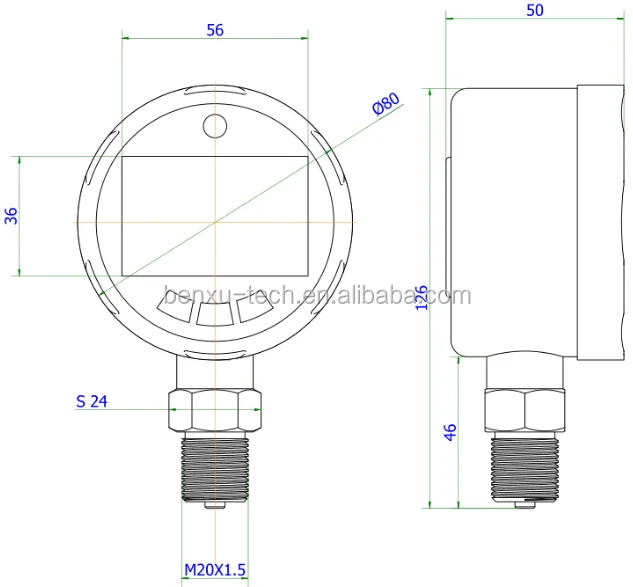

Dimensional Drawing(unit:mm):
