0-100Mpa Metal Case Battery-powered Digital Pressure Gauge

Product details
Place of Origin:Shanghai China;Overload Capacity:150%;
Packaging Detail:Small box,and then standard solid carton.;Working Temperature:-20℃ to 70℃;
Backlight Color:White;Port:Shanghai, Ningbo, Shenzhen or any other port in China;
Payment Terms:L/C,T/T,Western Union,Paypal;Brand Name:BENXU;
Display Mode:4 Digit LCD Display;Delivery Detail:7-12 business days upon receipt of the payment;
Pressure Range:0-100Mpa;Display Unit:MPa, kPa, PSI, BAR, kgf/cm2;
Supply Ability:50000 Piece/Pieces per Month Metal Case Battery-powered Digital Pressure Gauge;Pressure Type:gauge pressure or absolute pressure;
Long-term Stability:0.2%FS/year;Thread:G1/4;NPT1/4 etc (Customization);
Model Number:BX-DPG80;Accuracy:0.25%FS;
Our Advantages

Why choose BENXU?

♦ Focus on Sensor Production all the time

The Best Quality with Reasonable Factory Directly Price

 Have Passed CE,RoHS etc Certificates

♦ 18 Months Quality Guarantee Starting from the Date of Delivery



Do you care about followings after place an order?

Quality problem?

BENXU signs the 18 months warranty of quality with you.

Price problem?

If think price is higher at same top quality by comparison with others,we will refund you.

After sale problem?

Artificial damage:will offer technical support.

Quality problem:will do repair or offer replacement without any cost within 18 months.

Can’t deliver in time or some other problems?

Go ahead with Trade Assurance Online:

Product Description

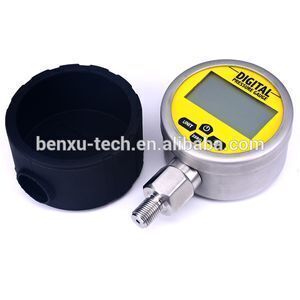

DPG80 is a battery-powered intelligent digital pressure gauge,it has a very high precision sensor and display pressure accurately in real time,equipped with a large size LCD,with the function of zero clearing,backlight,ON/OFF button,units changing,low voltage alarm,peak record(the maximun and minimum) and peak clearance,and it’s easy to install and operate,can measure any non-corrosive medium which is compatible with stainless steel.



Applications:

1, Machinery and Electronic Industry

2, Pressure Laboratory

3, Replacement of Pointer Pressure Gauge

4, Supporting Equipment of Instrument

5, Mechanical Engineering Automation



Technical Parameters:

Pressure Range

0-100Mpa

Overload Capacity

150%

Accuracy

0.25%FS

Display Unit

MPa,kPa,PSI,BAR,kgf/cm2

Pressure Connection

G1/4;NPT1/4;NPT1/8;G1/2 etc

Input Voltage

3V(two 1.5V batteries)

Sampling Frequency

5 Times/Second

Long-term Stability

0.2%FS/year

Working Temperature

-20℃ to +70℃

Compensation Temperature

0 to 60℃

Case and Thread

Stainless Steel

Protection Class

IP65

Size

Thickness: 46mm(18.1inch);

Outline Dimension: 80mm(31.5inch);

Length: 120mm(47.2inch)

Protection for Pressure Gauge

Plastic Protection Cover(Optional)



Button Description:

Power button: press power button continuously for 3 seconds to Turn On or Turn Off;

UNIT button: shortly press Unit button to change the unit;

UNIT button: long press for 5 seconds to displays the maximum value of the peak record since the last zero,and then shortly press again to display the minimum value of the peak record,shortly press again to exit record display;

ZERO button: pressure Zero button continuously for 3 seconds for zero clearing;

LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds.



Dimensional Drawing(unit:mm):

Company Information

BENXU—a technical corporation with own research and development team,focus on production and sales for quality products of pressure/level/weighing/temperature measurement all the time.

Applications

FAQ

1:What detailed information do I need to provide if I want to place an order?
application,measured medium,work temp.,test range,output,screw port,electrical connection etc.

2:How long will get the reply?

Contact you in 6 hours during working days or talk online through TradeManager,Skype,Wechat.

3:Could I get samples?
Any quantity samples are available for you to test our quality.
4:Could you provide me the shortest lead time?
We have materials in stock,we will put your order ahead of schedule if need in rush.
5:Could I visit your factory?
Of course,we warmly welcome you to visit our factory.

6:Whats the terms of payment?

Paypal or Western Union for samples,TT or LC for bulk order.
7:How could you control the quality?

100% incoming quality control for materials,process inspection when produce,and then do long-term test for temperature compensation,aging test,long-term stability performance etc if need,and then final inspection before leaving the factory.
