Ceramic pressure sensor with PCB pressure module transmitter module pressure sensor
- 2.90 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| scope: | 0.2~60MPa | Customization support: | OEM,ODM,OBM |
| Packaging Details: | custom made | Material: | Alumina Ceramics |
| payment terms: | L/C, Western Union, T/T | product name: | Compensated temperature ceramic piezoresistive sensor core |
| size: | 18mm*6.35mm | Warranty: | 12 months |
| port: | Shenzhen | Model: | CPS18DG003P |
| brand: | HXL | model: | CPS18DG003P |
| Origin: | Guangdong, China | Supply capacity: | 1000000000 pieces per month |
Product Description
product name | Heat supplemented ceramic piezoresistive sensor core & module |
Material | Alumina Ceramics |
Model | HXL-CP003 |
pack | standard packaging |

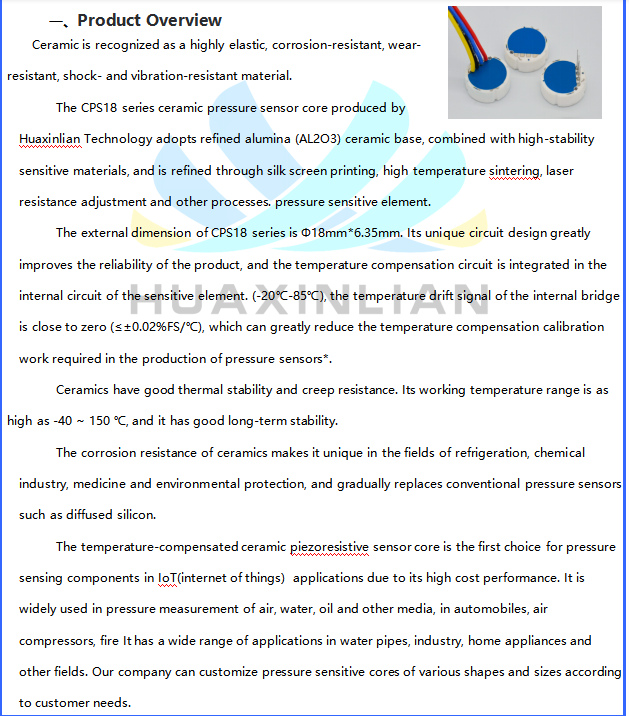

Product performance description
The company has successfully developed a ceramic piezoresistive pressure sensor core module by adopting advanced design concepts and process routes. After rigorous testing by international leading customers, all performance indicators have reached the international advanced level, including sensitive performance, thermal offset offset and zero stability.
