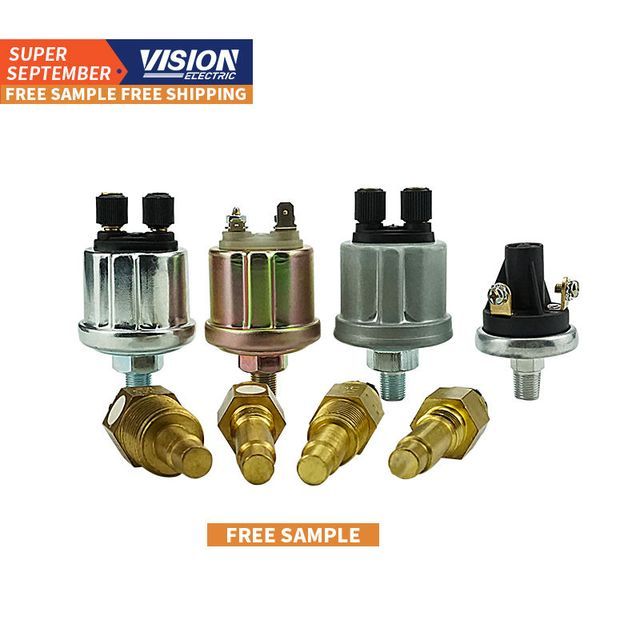

1/8 NPT 0-10 Bar Engine Transmitter VDO Oil Pressure Sensor with Warning Contact 360-081-032-014C

  • Supplier: Fuan Vision Machinery & Electric Co., Ltd.
  • Region: Fujian, China
  • Contact: Ms Sophie Huang
  • Price: $8.99 / 1 - 9 pieces
    $7.99 / 10 - 49 pieces
    $6.99 / 50 - 199 pieces
    $4.99 / >=200 pieces
  • Min. Order: 1 piece
Product details
Origin:ChinaCertificate:CE, RoHS, ISO9001
Function:Oil pressure sensor with warning contactWarranty:1 year, 1 year
in stock:Stock supply for VDOWire:1/8 NPT
product name:Engine VDO oil pressure sensor to replace the original VDOPackaging Details:Standard export packaging
Single pack size:20X20X10 cmWarning bar:0.8±0.3 bar
weight:115 gramsSales unit:single product
type:Engine Oil Pressure SensorCustomization support:Processing
brand:to imaginemodel:VDO oil pressure sensor
Gross weight per piece:0.450 kg
VISION popular items
Product Description

High quality oil pressure sensor

The oil pressure sensor is the protection device of the generator, which is connected with the controller to protect the normal operation of the generator. When the generator is at an abnormal level, the sensor will send a signal to the controller, which will then send a warning to ensure you find the problem



Oil Pressure Sensor
oil pressure sensor
pressure (bar)
0
2
4
6
8
10
resistance
10±3
52±4
88±4
124±5
155±5
184±10
Valin pressure
0.8±0.3 bar
Wire
1/8 NPT
net weight
115 grams

Temperature sensor 1/2NPT

1/2NPT is a generator protection device, which is connected with the controller to protect the normal operation of the generator. When the generator is at an abnormal level, the sensor will send a signal to the controller, which will then send a warning to make sure you find the problem.

Water temperature sensor
temperature(℃)
20
40
60
80
100
120
resistance
677±20
294±15
134±10
70±10
38.5±10
22.4±10
Valin pressure
97±3℃ 103±3℃
Wire
1/2 NPT
net weight
100 g
