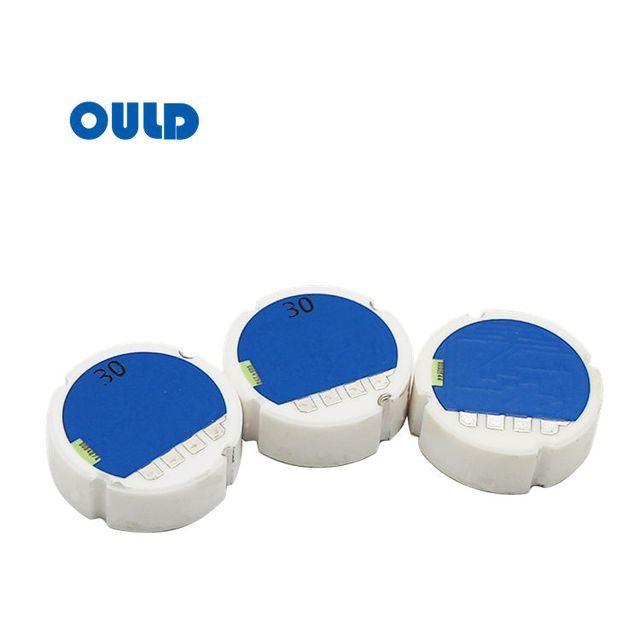

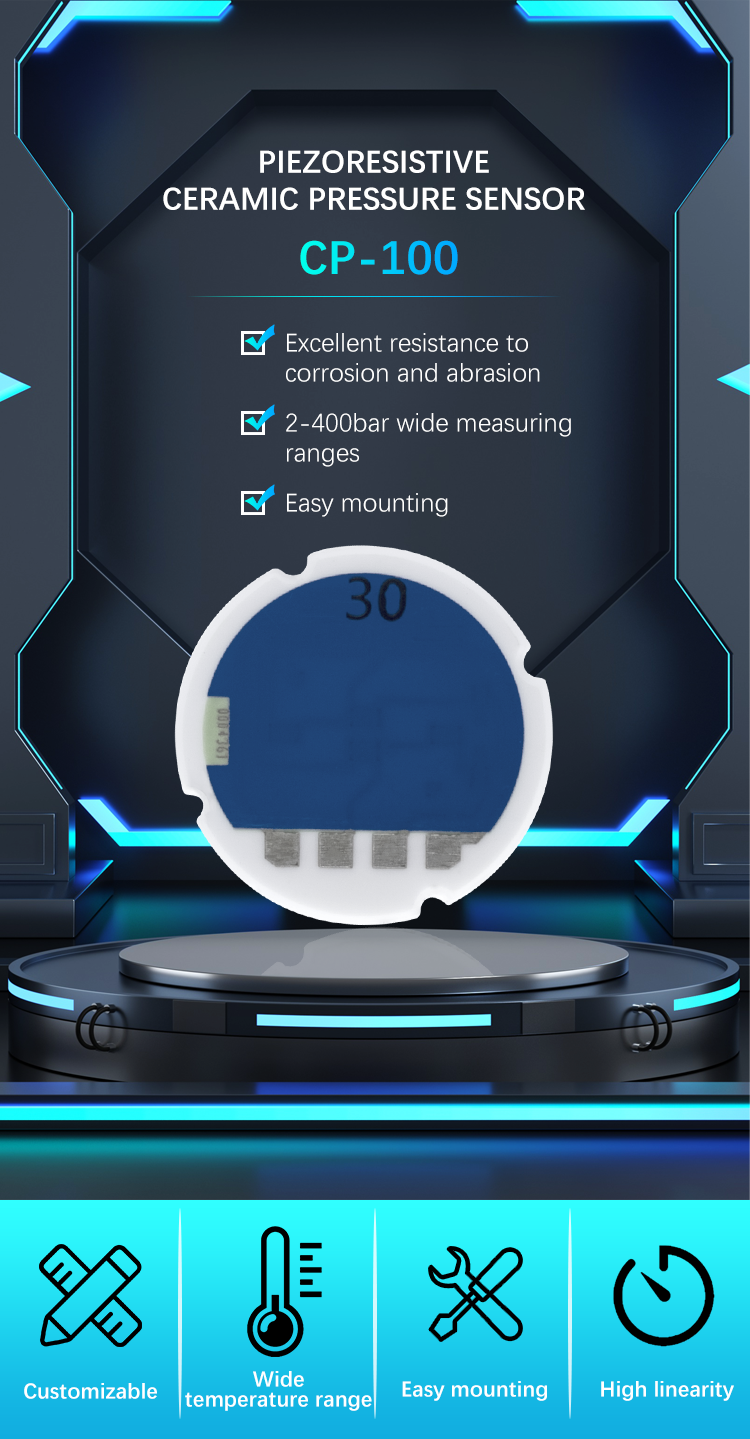

OULD CP-100 Sanitary Ceramic Pressure Sensor 15 mm Flush Diaphragm Piezoelectric Pressure Sensor
- 1.90 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | carton | Pressure range: | 2-5-10-20-50-100-200-250-400 bar |
| brand: | Ord | Pressure type: | Gauge |
| Signal output: | mV/V | Package preview: | |
| structure: | Integral | Supply capacity: | 600000 pieces per month |
| Customization support: | OEM production | technology: | piezoresistive |
| Origin: | Guangdong, China | diameter: | 18mm |
| port: | Shenzhen, Guangzhou, Shanghai, Ningbo or other ports | model: | CP-100 |
| payment terms: | Western Union, T/T, Paypal | Warranty: | 12 months |
parameter:
Bridge resistance | 11±30%KΩ |
power supply | 2-30V |
Upholstered | palladium antigen |
Response time | <1 millisecond |
zero signal | ±0.2mV/V |
full point signal | 1.5~4mV/V |
| Comprehensive accuracy (linearity, hysteresis, repeatability) | ±0.5% |
long-term stability | 0±0.3%/year |
temperature range | -40~125℃ |
temperature drift | ±0.03%/℃ |
Insulation Resistance@25℃, 85%RH, 500VDC | 100M |
weight | ≤7g |

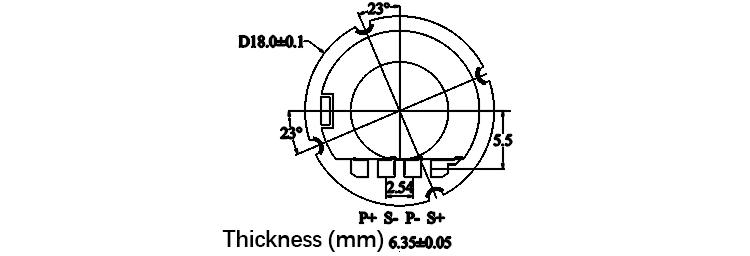

Dimensions: (mm)
pressure range (bar) | Overload pressure (bar) | Burst pressure (bar) |
2 | 4 | 6 |
5 | 10 | 15 |
10 | 20 | 30 |
20 | 40 | 60 |
30 | 60 | Post-90s |
50 | 100 | 150 |
100 | 200 | 300 |
200 | 400 | 500 |
400 | 600 | 700 |
