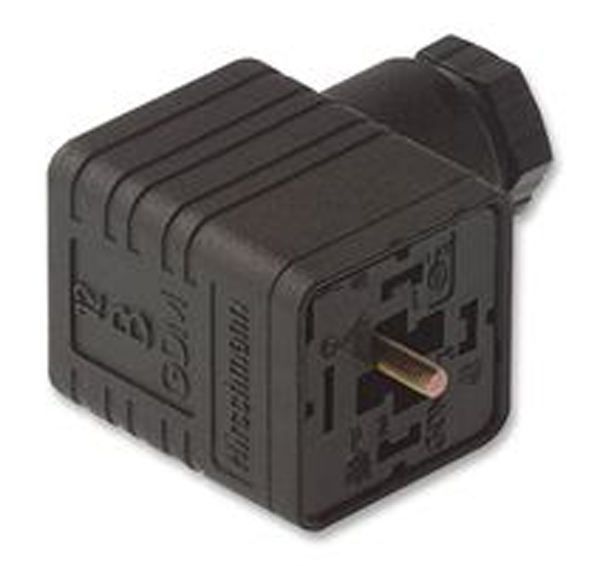

Hirschmann GDM3009 value connector
- 2.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Building materials: | PA | describe: | Cable socket M 3 x 35 with central screw |
| brand: | Hirschman | Install: | central nut |
| Packaging Details: | standard carton | payment terms: | L/C, T/T, PayPal |
| port: | Shenzhen, Guangzhou, Xiamen or other ports | Termination type: | tighten |
| Package preview: | Pin Size: | 6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm | |
| model: | GDM3009 | Construction Type: | A |
| Rated voltage: | UC 250V | Supply capacity: | 10000 pieces per month |
| type: | Cable socket, self-assembled | Number of contacts: | 3+PE |
| color: | Black | application: | for pressure sensors |
| Material: | PA | Rated current: | 16A |
| Origin: | Germany | Cable Connector: | PG 9 |
Product Description
| Product Description | Cable socket M 3x35 with central screw |
| type | GDM 3009 black/black |
| number of contacts | 3+PE |
| Cable Connector | PG 9 |
| Conductor size | maximum. 1.5mm2 |
| standard | DIN EN 175 301-803-A |
| shell color | Black |
| construction type | A |
| Pin size | 6.3mmx0.8mm, 4.8mmx0.8mm |
| Rated voltage | UC 250V |
| rated current | 16A |
| Contact resistance | ≤ 4 milliohms |
| termination type | tighten |
| Applicable cable | 4.5 mm to 7 mm in diameter |
| Install | central nut |
| contact surface material | tin |
| contact carrier material | PA |
| building materials | PA |
| Degree of protection (IEC 60529) | IP 65 (gasket required) |
| pollution severity | 3 |
| temperature range | -40～+125℃ |
| Shell flame retardant grade | 94 HB |
| Contact Carrier Flammability Rating | 94 HB |
| Warranty | 12 months |
