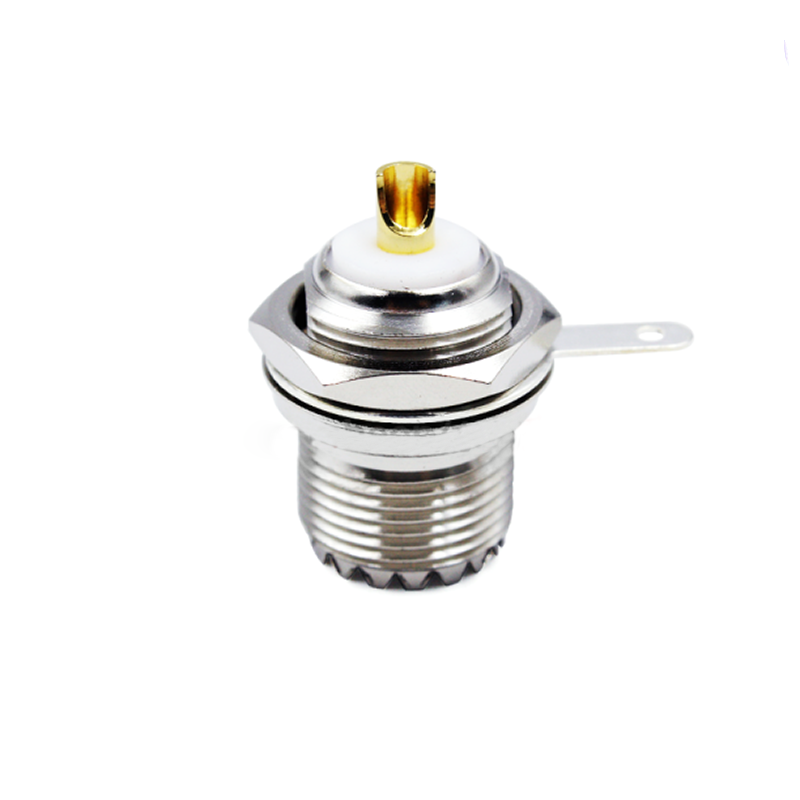

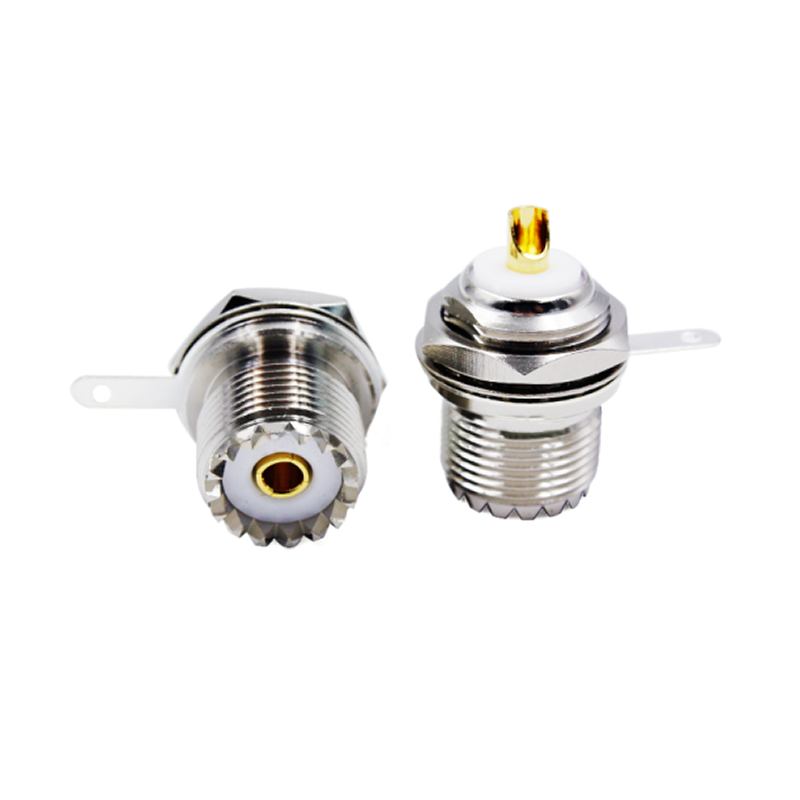

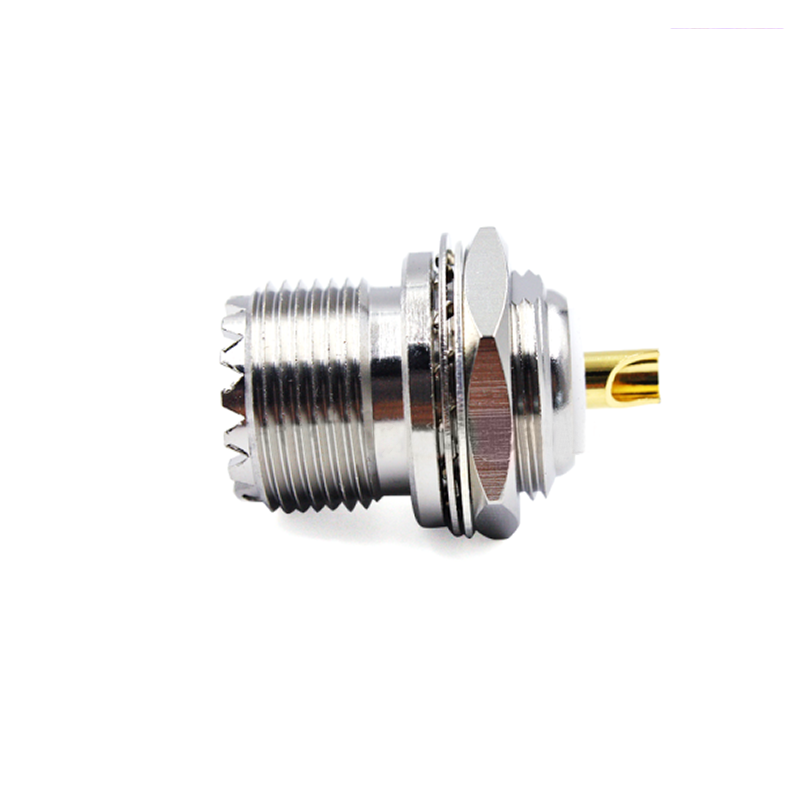

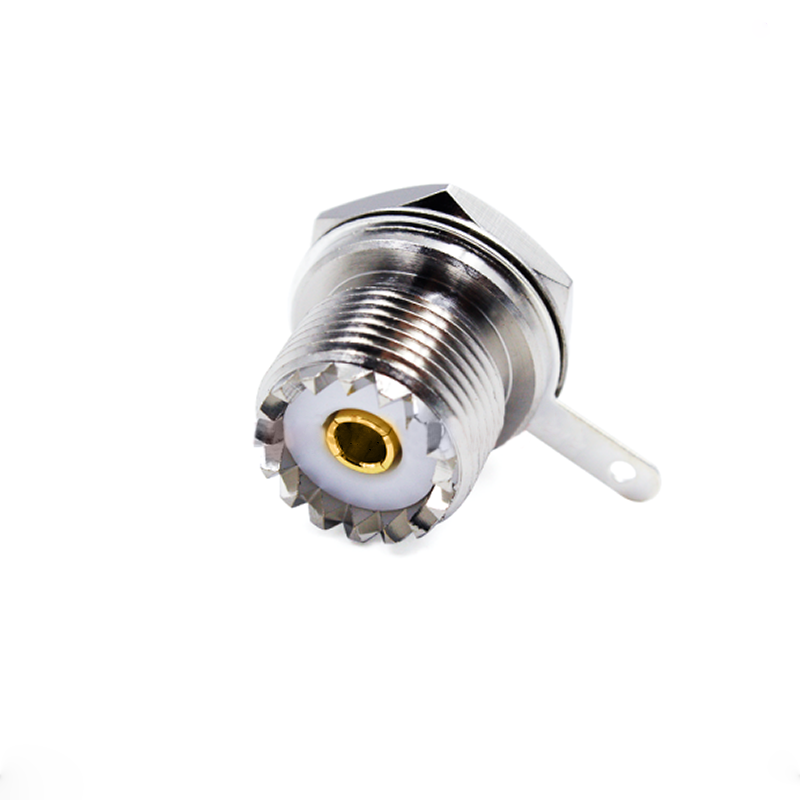

High Quality RF Connector UHF PL259 Female RF Coaxial Connector Bulk Connector

Supplier: Xi'an Zhongshixing Electronic Technology Co., Ltd.
Region: Shaanxi, China
Contact: Mr Daivd W
Price: $5.50 / 10 - 99 pieces
$1.88 / >=100 pieces
Min. Order: 10 pieces

Click here to contact

Product details

gender:	female	brand:	Zhongshengxing
type:	RF connector	port:	Qingdao Port/Shenzhen Port/Shanghai Port
Dielectric strength:	1500V	payment terms:	Western Union, D/P, D/A, T/T, MoneyGram
Frequency Range:	DC-1GHZ	Supply capacity:	10000 pieces per year
usage:	Communication equipment, microwave equipment	model:	UHF-KYK122
Insulation resistance:	≥5000MΩ	product name:	UHF type connector
color:	silver	Packaging Details:	Standard export carton or according to customer requirements
Durability:	≥500	Contact information after 0:	Nickel-plated brass
application:	communication equipment, microwave equipment	Feature index:	50Ω
Package preview:		Internal contact:	gold plated brass
Material:	Nickel-plated brass	Origin:	Shaanxi, China

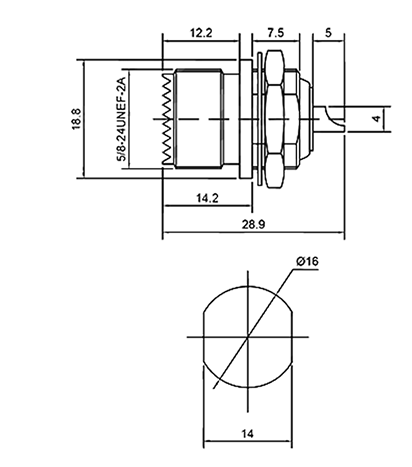

Product Description

order number			221028
product name			UHF-KYK122
gender			female
Contact resistance	centerconductor	≤1.5mΩ
		Outer conductor	≤0.2mΩ
Frequency Range			DC-1GHZ
characteristic index			50Ω
Dielectric strength			1500V
Insulation resistance			≥5000MΩ
durability			≥500 times
temperature range			- 45°~+125°C

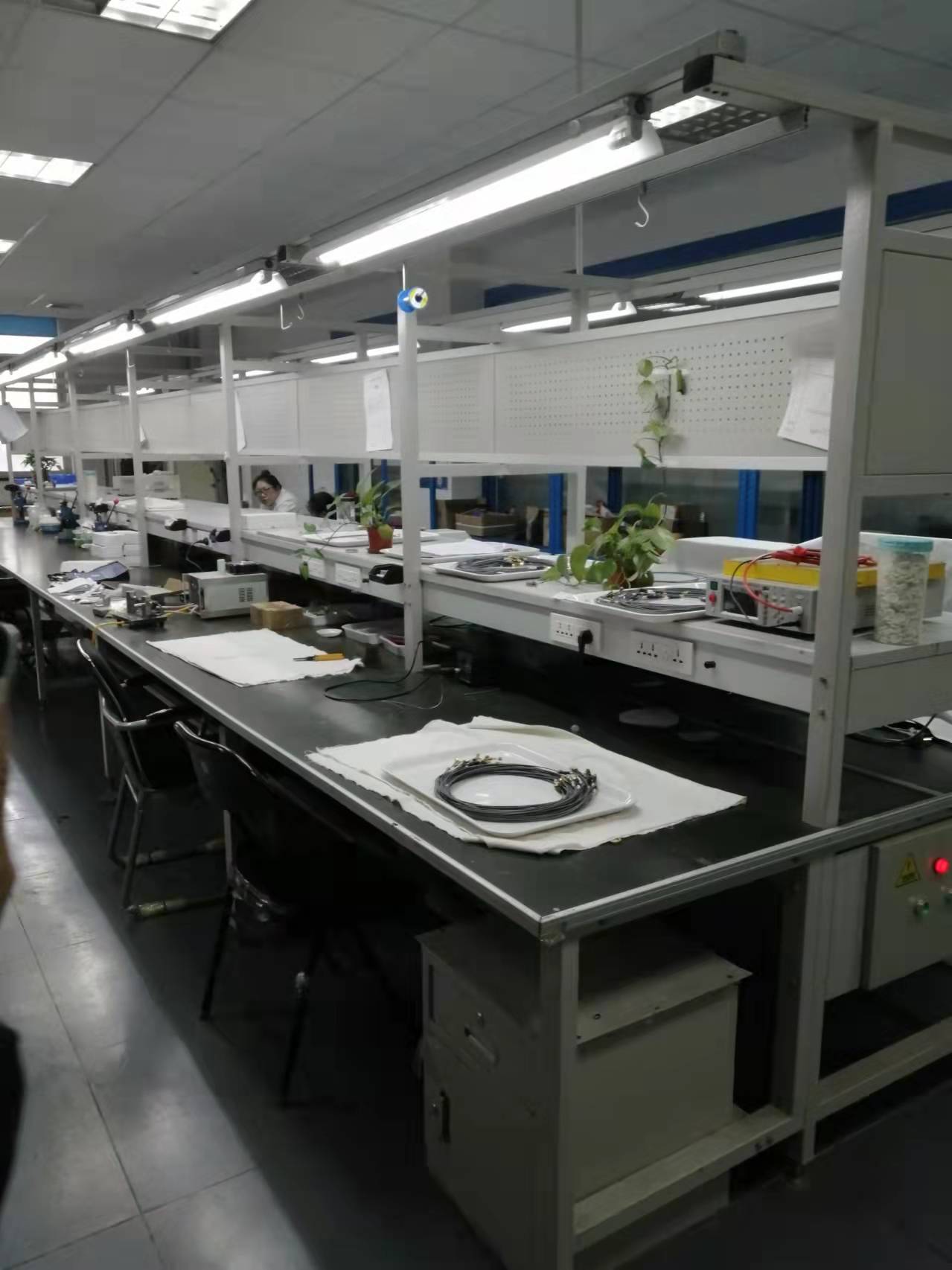

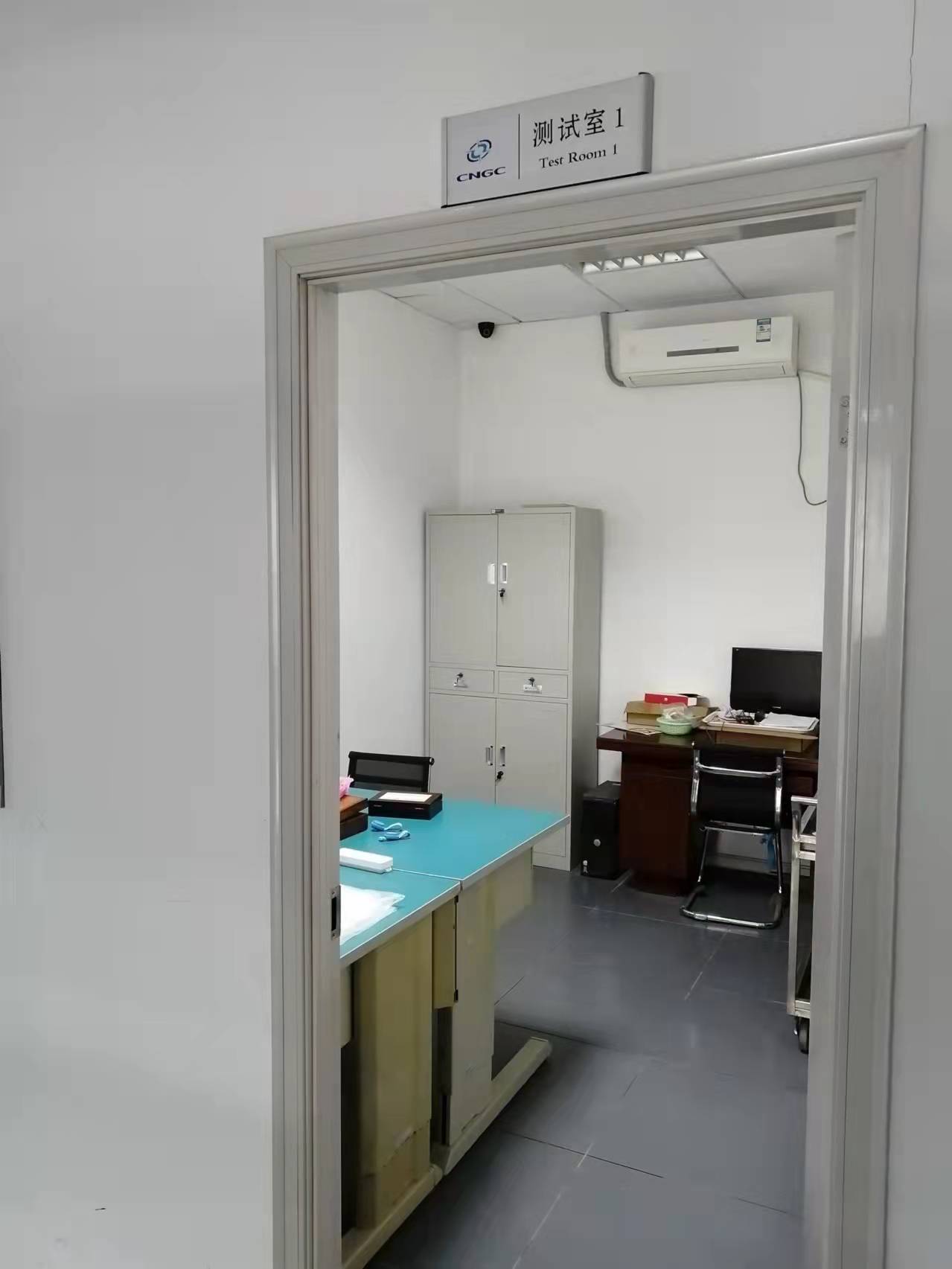

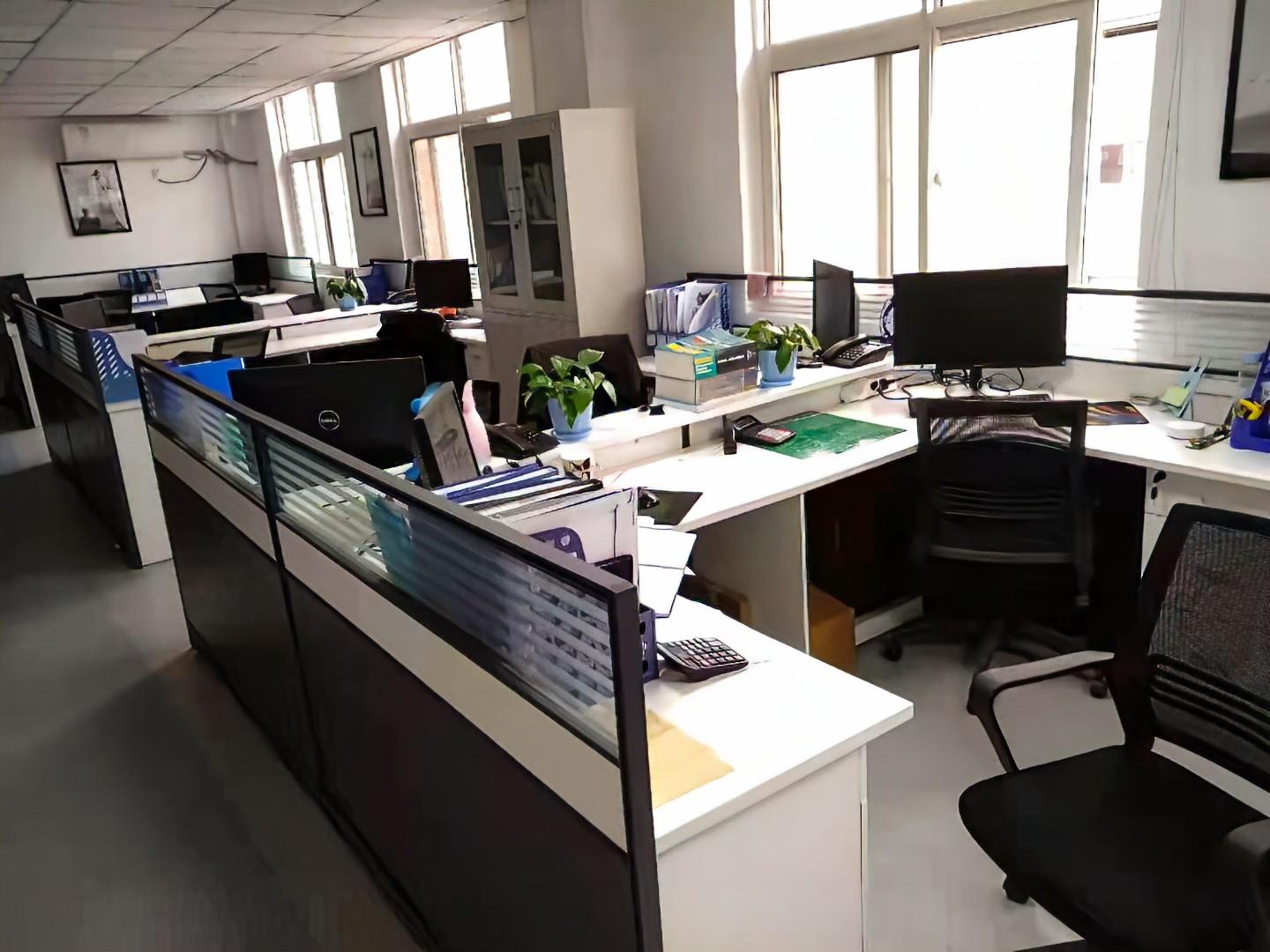

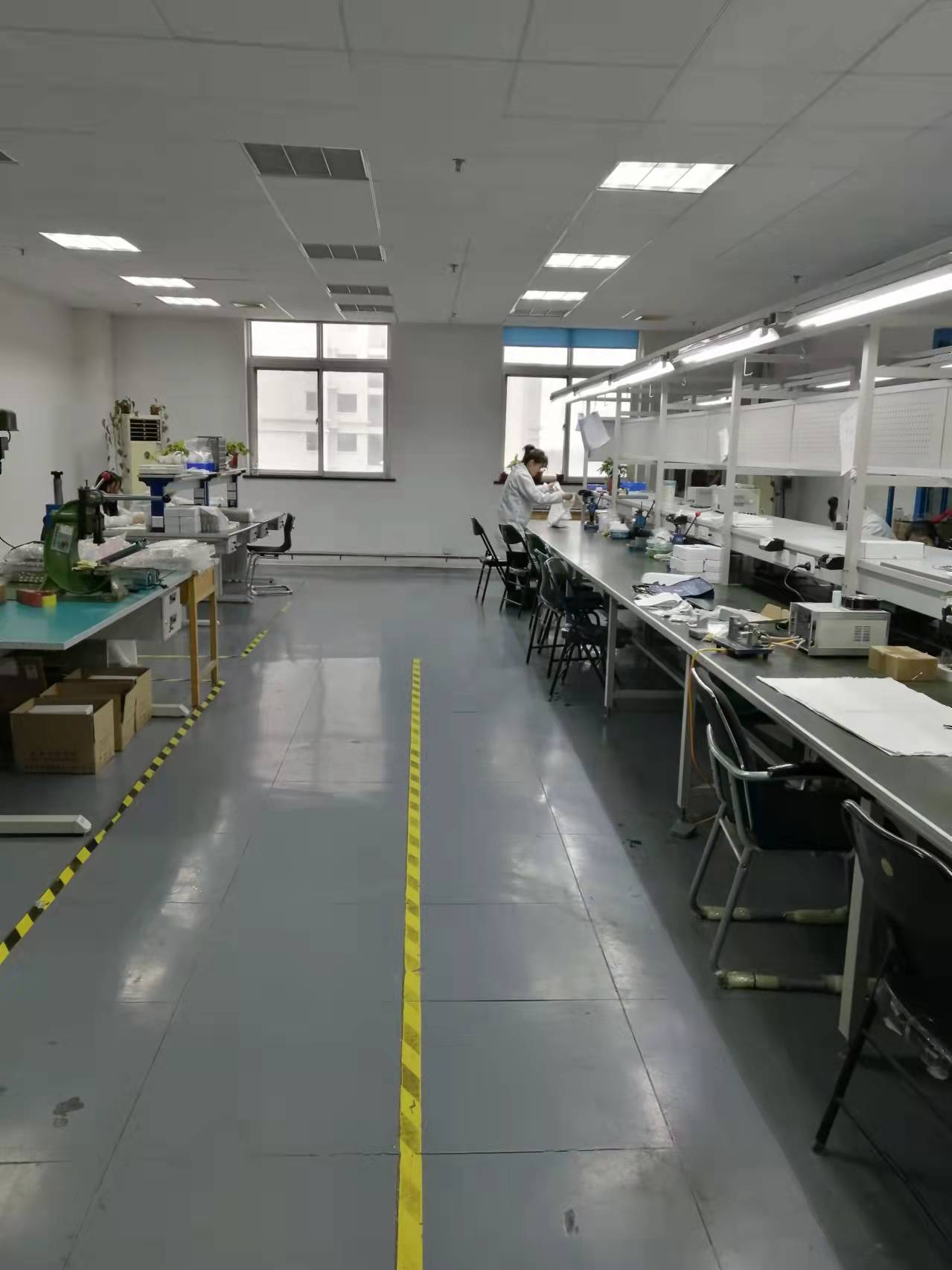

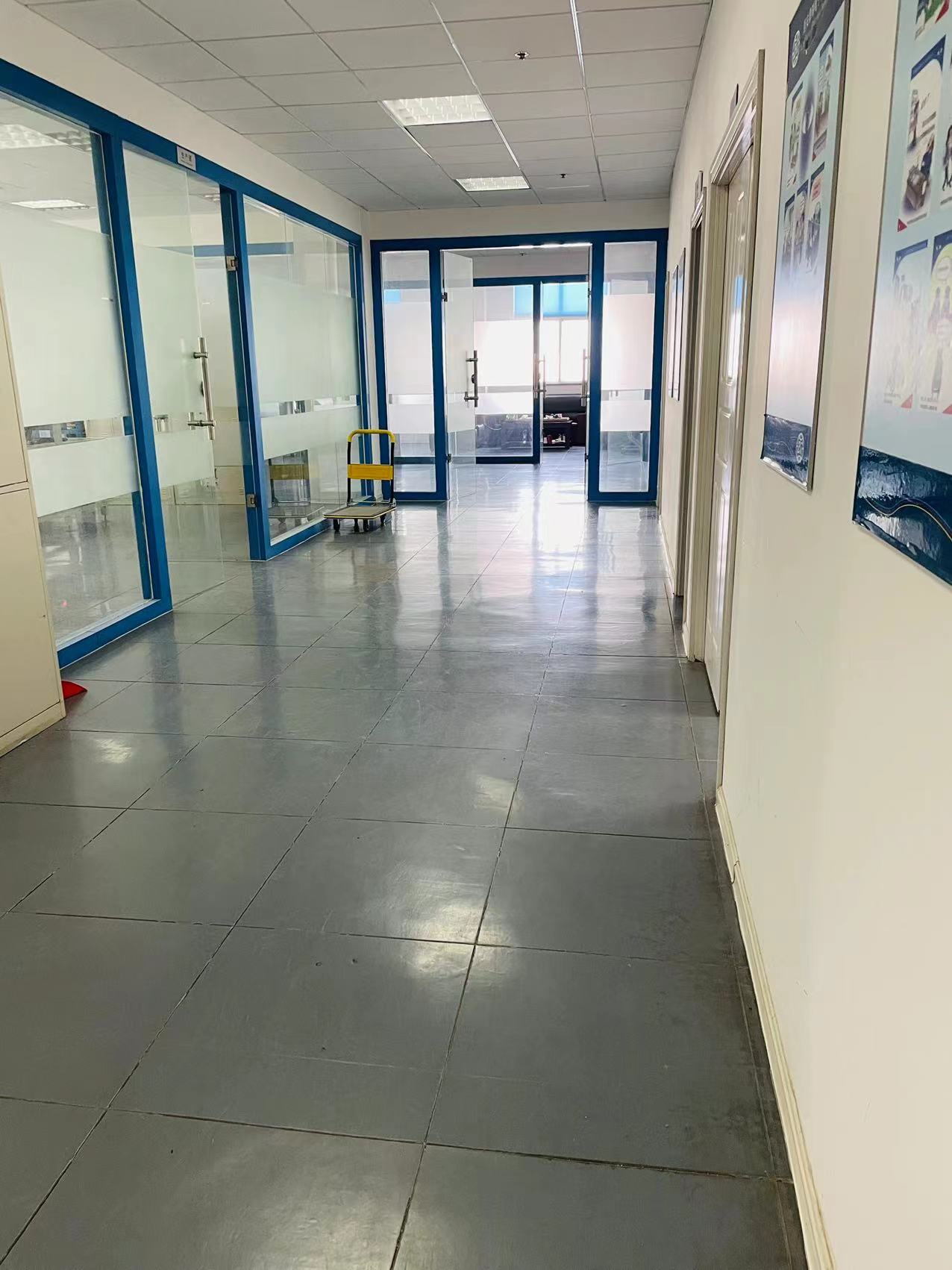

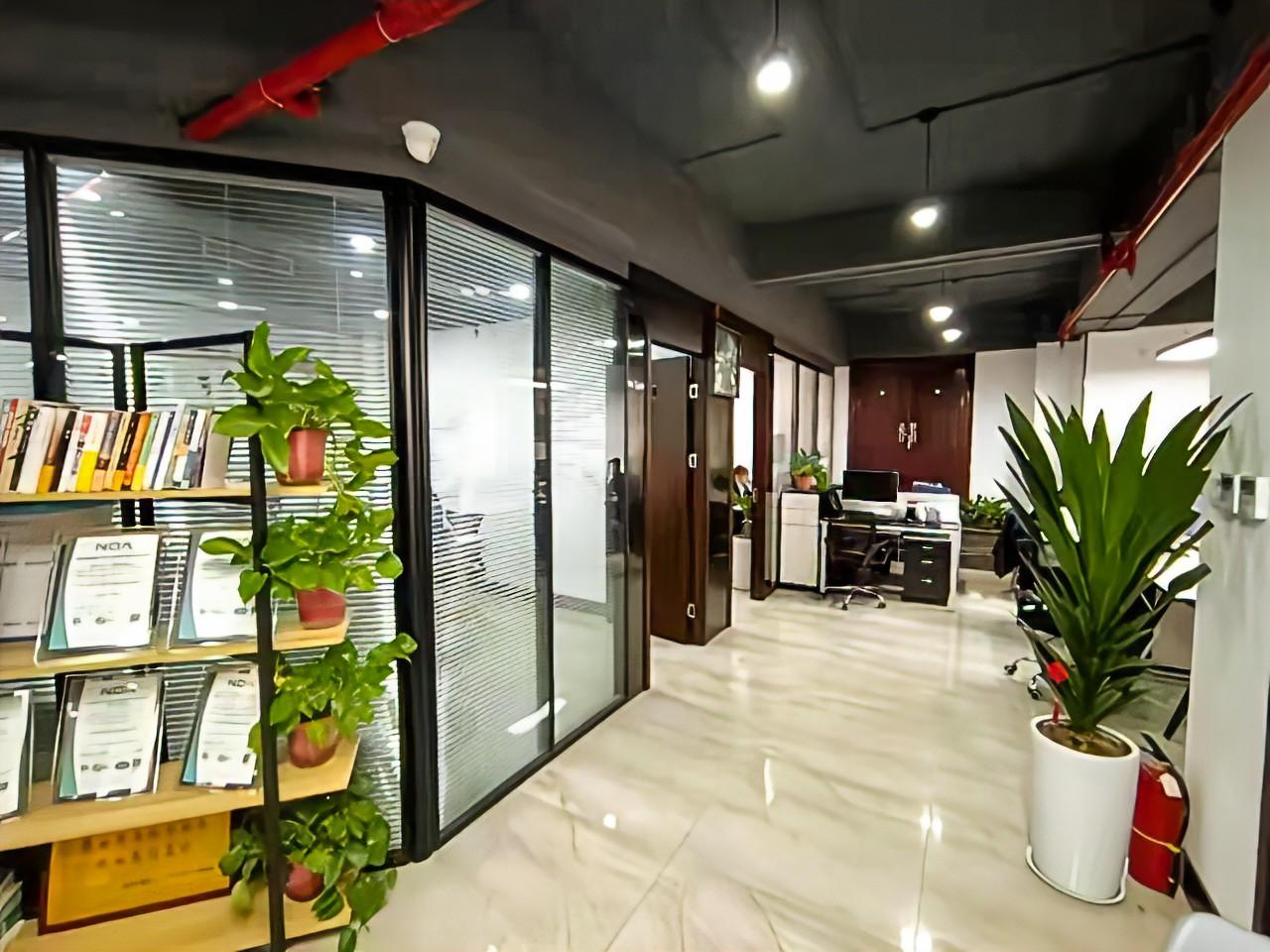

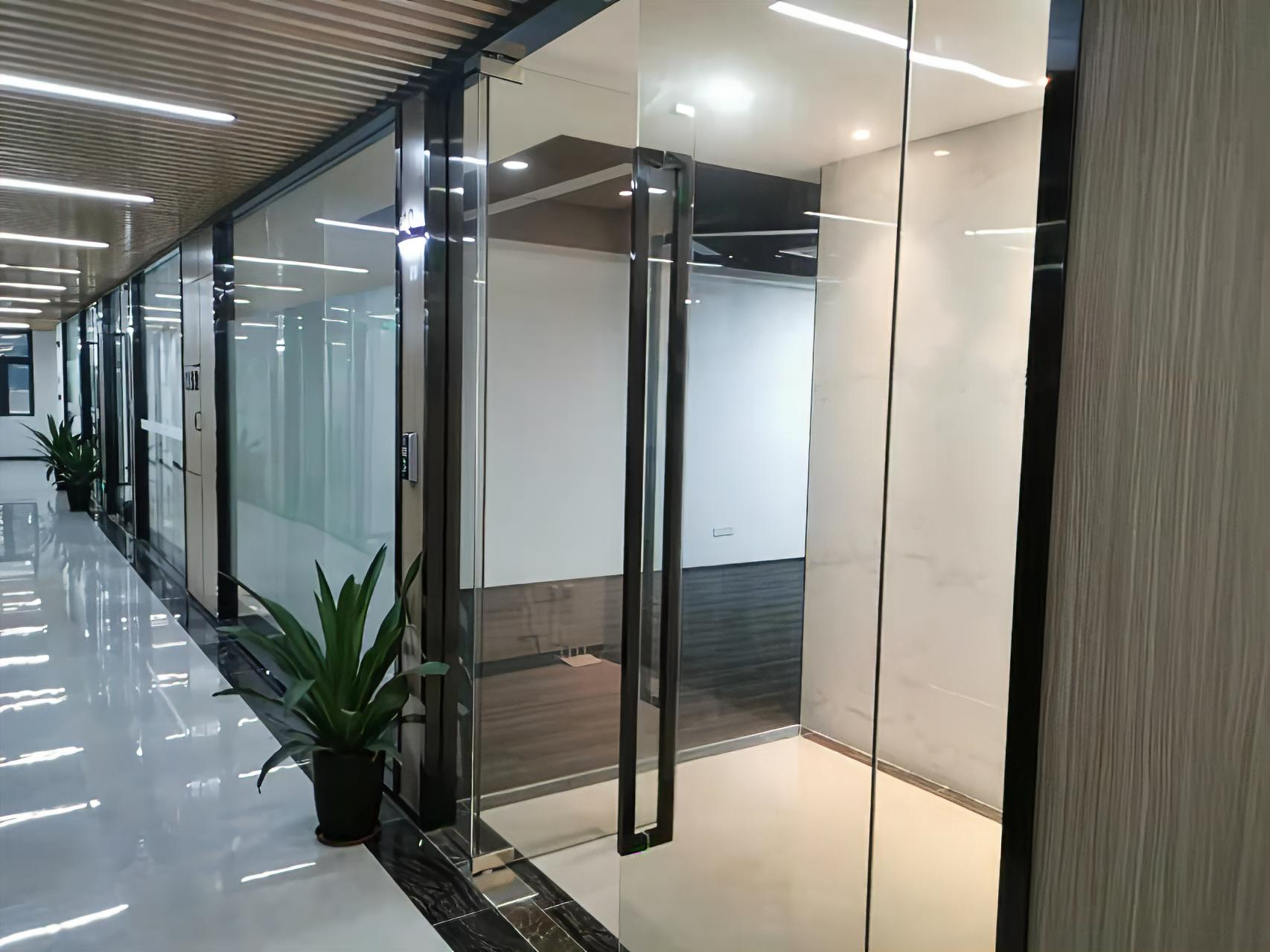

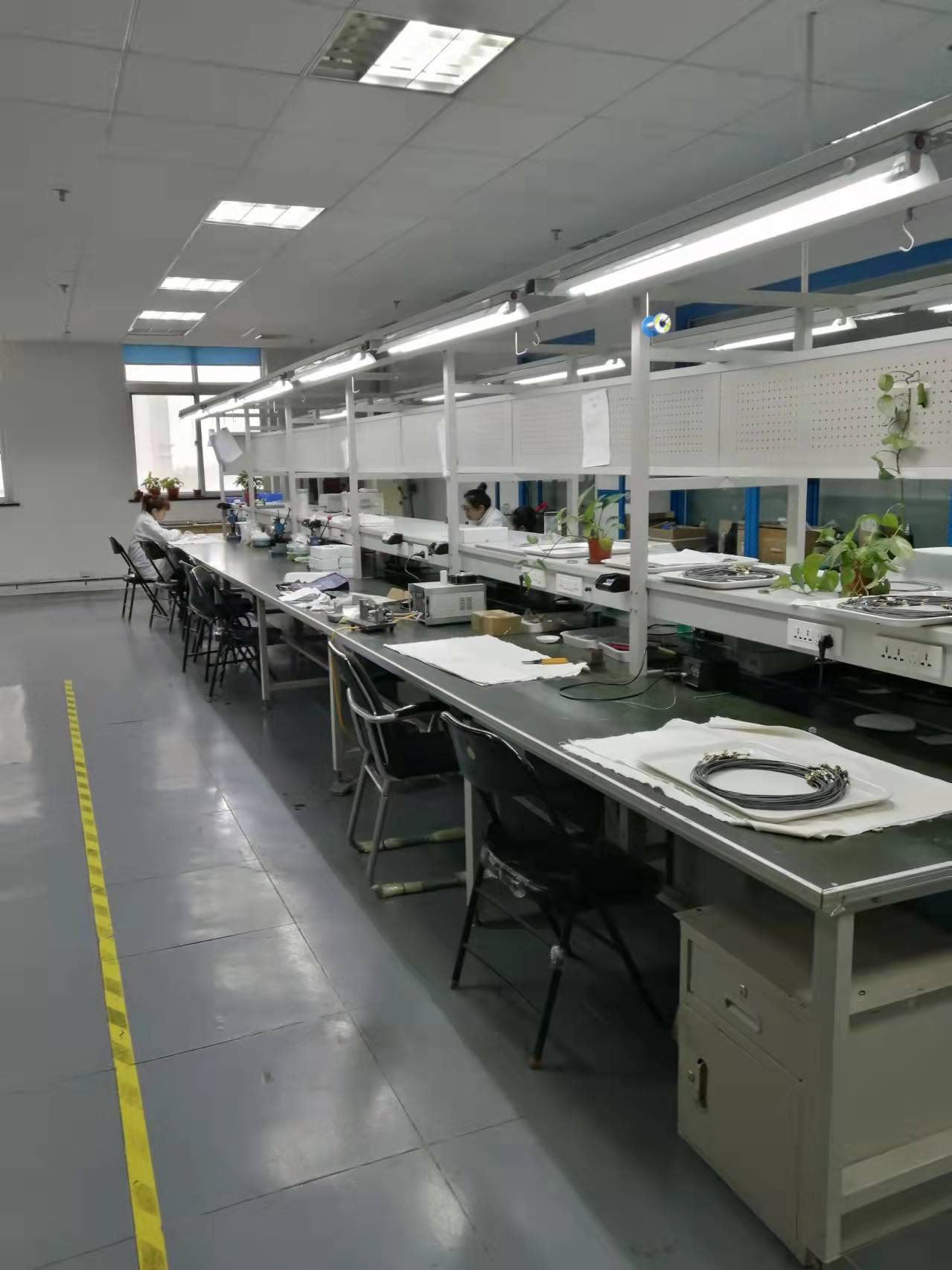

Company Profile

Xi'an Wanshixing Electronic Technology Co., Ltd. is a company that develops and sells RF coaxial connectors, adapters, cable assemblies, waveguides, and glass-to-metal sealed connectors. Efficacy non-standard automation equipment implements process supporting products, a technology company integrating design, development and sales. The company is located in High-tech Zone, Xi'an City, Shaanxi Province, China's high-reliability RF connector research and development base, with a registered capital of 3 million yuan. The company currently has 10 employees, who have been engaged in product technology research and development for 17 years as a technical manager, and two managers with rich experience in foreign trade. 5 senior R&D technicians and 2 production management teams with years of experience in supply chain management.

The products developed and sold by the company mainly include radio frequency connectors, cable assemblies, low frequency, coaxial waveguide switch series products, glass metal sealed connectors and other microwave components. The team has a supporting sales team for various cables and connectors. The website is committed to the operation and management methods that satisfy all customers. At the same time, the company takes "excellent quality, honest character, and efficient delivery" as its business philosophy, and aims to create a first-class enterprise in the industry. , to meet the needs of domestic and foreign customers as the business purpose, and hope that Xi'an and Wanshixing Electronics can meet the needs of all kinds of friends and customers around the world through the Alibaba International Station platform, and at the same time build a bridge for international trade. We sincerely look forward to serving you at critical moments Provide perfect products and high-quality services.
