XGZP101GSB1 160 SOP 100KPA Pressure Sensor for Medical instrument

Supplier: WuHu CFSensor Co.,Ltd
Region: Anhui, China
Contact: Ms Aling Huang
Price: $2.50 / 10 - 499 pieces
$1.25 / 500 - 999 pieces
$0.95 / 1000 - 2999 pieces
$0.85 / >=3000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Zero Output:	-15 to +15mV;	Power supply:	≤10mV or ≤ 3mA;
Certificates:	RoHS;	Warranty:	3 years;
Place of Origin:	Anhui, China;	Pressure type:	Gage/Negative;
Packaging Detail:	Vacuum Packing in CTN or Reel Tape(paid service);	Brand Name:	CFSensor;
FS Output:	50 to +90mV;	Model Number:	XGZP160S;
Stprage temperature:	-40 ~ 125'C;	Measured media:	Air or Gas;
Work temperature:	-30-100'C;	Pressure range:	-100~0kPa...200kPa;
Product name:	Pressure sensor;

Product Description

Feature

Ranges: -100kPa~0kPa…1500kPa(-15PSI~0PSI…217PSI)
Perfect Accuracy: ±1.0%(≥20kPa)
Gage, Vacuum Type
For Non-corrosive gas or air
Amplified, Calibrated analog output
Temp. Compensated:0℃~+60℃(32℉~+140℉)
Direct application, Low Cost.

Application

For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.
For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.
For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.

Introduction

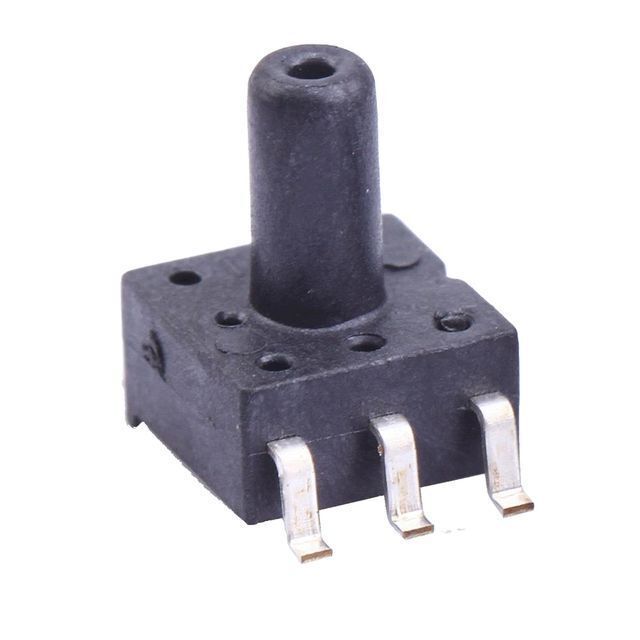

XGZP160 is a surface mounting pressure sensor based on CFSensor silicon based piezoresistive pressure sensor die(XGZP2004).The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP.The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries.With standard SOP6 package, XGZP160 is easy for users to install by SMT.

With good repeatability, linearity, stability and sensibility, XGZP160 is very facile for users to calibrate output & thermal drift and make temperature compensation by using exterior operational amplifier or integrated circuit.(For direct application if required,please check XGZP6847 or consult factory.)

The XGZP160 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application.Please consult us if a

pressure medium other then air is to be used.

Performance Parameter

Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at

a temperature of 25±1℃ and humidity ranging from 25%~85%.

Specicications	Min.	Typ.	Max.	Unit
Pressure Range1	-100,7,10,20,40,100,200			kPa
	-15,1,1.5,2.9,5.8,15,30			PSI
	-7,50,53,75,150,300,750,1500			mmHg
Ambient Temperature	-30		+100	℃
Storage Temperature	-40		+125	℃
Bridge Resistance	4	5	6	KΩ
Offset/Zero Output	-15		+15	mV
FS Output(≤20kPa)	30	45	60	mV
FS Output(40kPa)	50	70	90	mV
FS Output(≥100kPa)	60	90	150	mV
Temp. Coefficient of Resistance_⁵	1600	2200	2800	ppm/℃
TCO(Temp. Coefficient of Offset)₅	-0.08₂		0.08₂	%FS/℃
TCO(Temp. Coefficient of Offset)₅	-0.05 ₃		0.05₃	%FS/℃
TCS(Temp. Coefficient of Span)₅	-0.252	-0.21 2	-0.172	%FS/℃
TCS(Temp. Coefficient of Span)₅	-0.053		0.053	%FS/℃
Linearity₄	-0.3		0.3	%FS
Hysteresis	-0.2		0.2	%FS
Repeatability	-0.2		0.2	%FS
Long-term Stability	-1.0		1.0	%FS
Response Time		2		mSec.
Note: 1 The max negative pressure specified above is exactly 98.07kPa in actual application. 2 Excitated by constant voltage 3 Excitated by constant current 4 Defined as best fit straight line 5 Temperature coefficient is measured from 0℃ to 80℃.(32℉~176℉) Unless otherwise specified,measurements were taken on base of above testing condition.

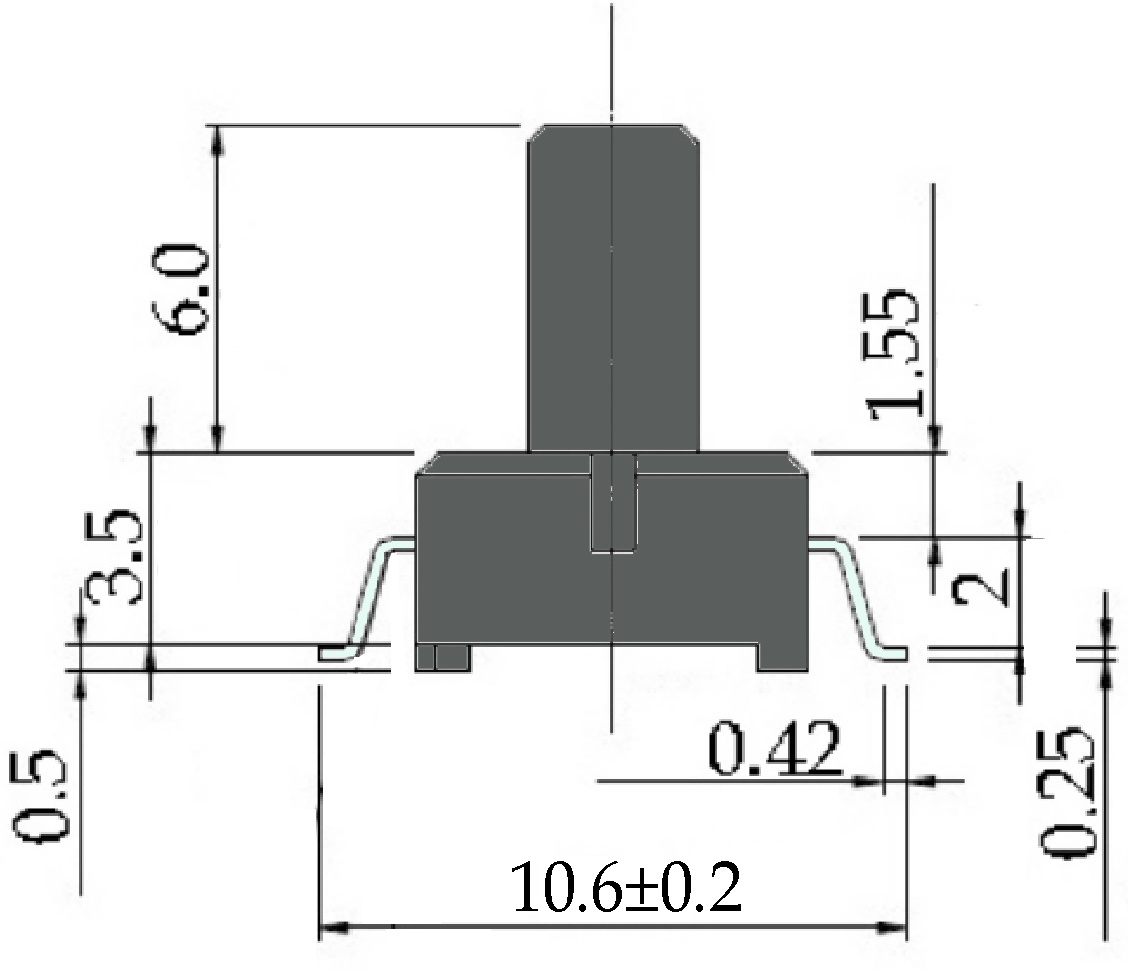

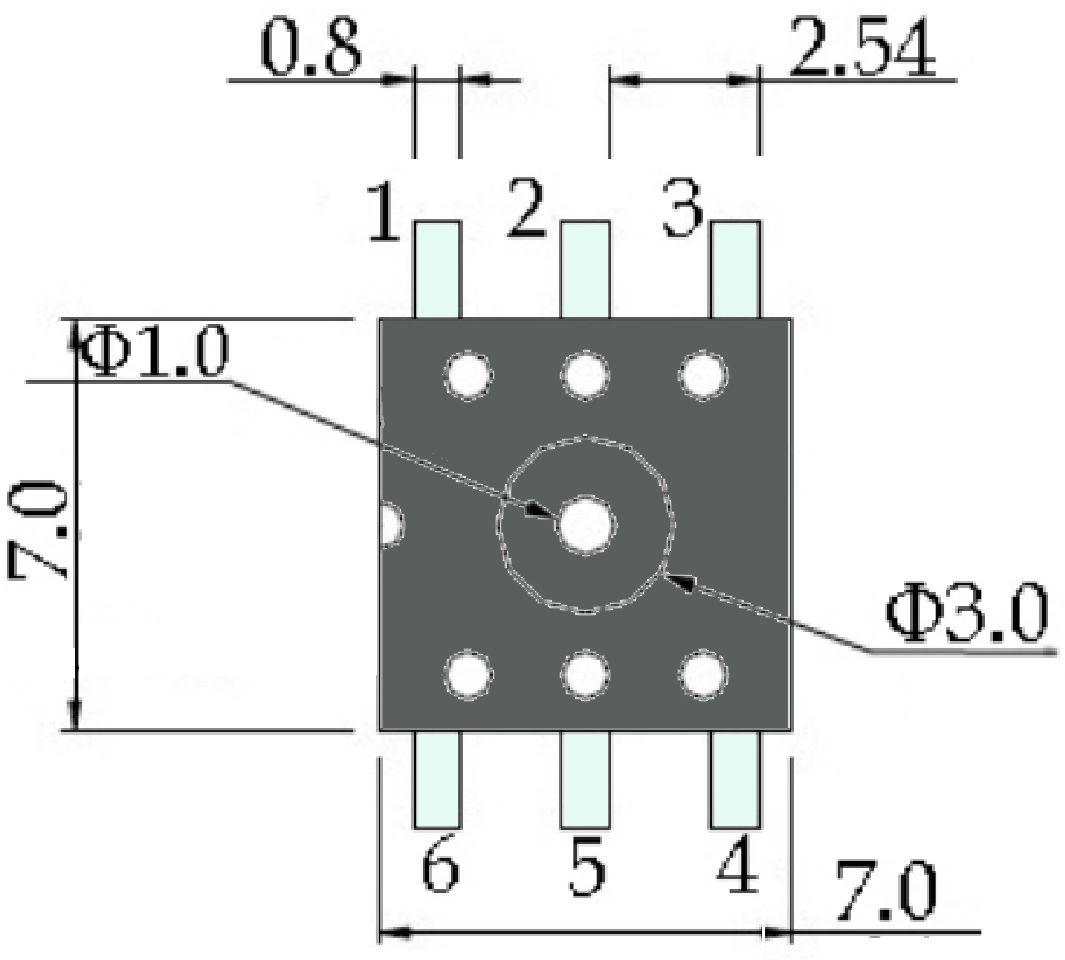

Dimension (Unit:mm/Inch)

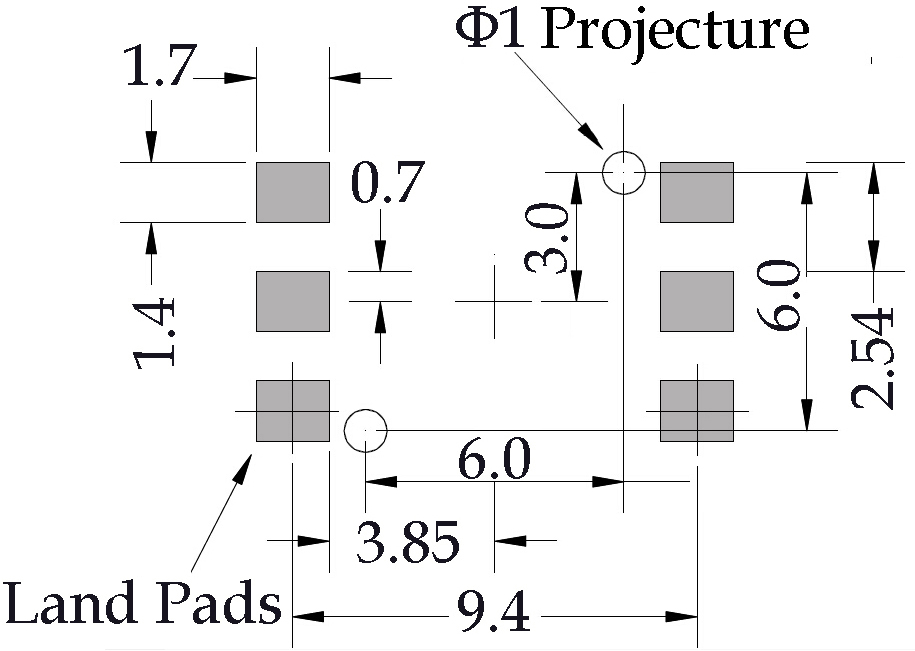

Recommended Footprint

Electric Connection&Definition

PIN	1	2	3	4	5	6
Definition B1	Vo-	Vs+	Vo+	N/C	GND	Vo-
Definition B2	GND	Vo+	Vs+	N/C	Vo-	GND

Symbol	Vs+	GND	vo+	Vo-
Definition	Power+	Power-	Output+	Output-

NOTE:

1,N/C Pins must be left floating

2,Soldering of lead Pins:250’C for 5 sec max.

3,B1 as default PIN Definition unless otherwise specified

Order Guide

Notes

1.ESD protection required

2.Attention that the medium should be compatible with the pressure parts.
3.Please contact us if special request on parameter and application.

Warranty

CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor reserves the right to make changes without further notice to any products herein. CFSensor makes no warranty, representation or guarantee regarding the suitability of its products for any particular application. CFSensor does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.
