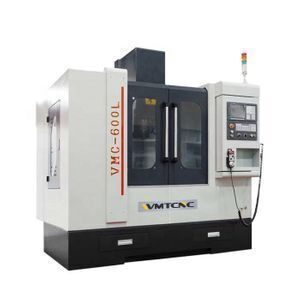

VMC600L Linear guideway 4 axis cnc milling machine

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $20600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	CNC milling machine price:	low price and factory sale;
Single gross weight:	3,800 KG;	After-sales Service Provided:	Online support,Video technical support,Free spare parts;
Voltage:	380V/50hz/3 phase;	Spindle taper:	BT40;
Spindle speed:	8000rpm-1000rpm;	Weight:	5000kgs;
Type:	Vertical;	Dimension(LWH):	2260x1750x2200mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Logo printing:	OEM service;
high speed:	Taiwan Brand;	machining center:	VMC;
Single package size:	230X190X220 cm;	Place of Origin:	Anhui China (Mainland);
Delivery Detail:	0 days after payment;	Certification:	CE ISO;
Warranty:	1 Year;	Power(W):	5.5kw;
Brand Name:	WMT;	Condition:	New;
Package Type:	Plywood wooden box;

Product Description

Futurers of CNC milling machine VMC600L

All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Specification	VMC600L
Worktable size(LxW)	800x400mm
T-slot (NxWx D)	3x14x100mm
X/Y/Z axis travel	600/400/450mm
Distance from spindle center to column	450mm
Distance from spindle nose to worktable surface	100-550mm
Spindle taper	BT40
Spindle power	5.5kw
Max.spindle speed	10000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	30/30/25m/min
X/Y/Z axis ball screw	3210
Tool magazine capacity	12T/16T(optional)
Max.length of tool	300mm
Tool change time(T-T)	2.5s
Positioning accuracy(X/Y/Z)	±.0.005mm
Re-positioning accuracy(X/Y/Z)	±.0.002mm
LxWxH	1900x1700x2240mm
Max.loading of worktable	300kgs

Products Show

Our Company

Packing & Delivery

Packing Details : Standard plywood box packaging.

Delivery Details :35-45days after order confirmed.

Customer Photo

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
