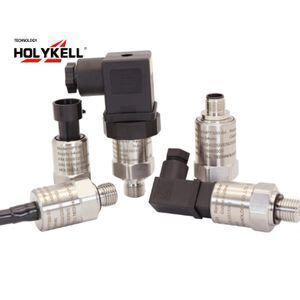

Holykell OEM HPT300 Micro 0.5v~4.5v Air Compressor Pressure Sensor

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $25.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Process Connection:	G1/4'',G1/2'',1/4''NPT, 1/2''NPT;	Warranty:	One Year;
Port:	FOB changsha;	Power Supply:	12~36V DC,12~36V DC,15~36V DC,5V DC;
Product:	MAC Micro 0.5v~4.5v Air Compressor Pressure Sensor P10R;	Packaging Detail:	Standard export package . HOLYKELL HPT300 Micro 0.5v~4.5v Air Compressor Pressure Sensor;
Payment Terms:	T/T,Western Union,MoneyGram;	Place of Origin:	Hunan China (Mainland);
Model Number:	HPT300;	Output:	4~20mA, 0~5V, 0~10V , 0.5~4.5V;
Product Material:	316 stainless steel welted . Sensor shell:304stainless steel;	Pressure Type:	Gauge pressure ,Negative pressure and Absolute pressure optional;
Pressure Range:	-1...0-1 Bar...600 Bar Optional;	Guarantee Period:	12 Months;
Brand Name:	HOLYKELL;	Supply Ability:	5000 Piece/Pieces per Month HOLYKELL HPT300 Micro 0.5v~4.5v Air Compressor Pressure Sensor;
Certificate Approving:	CE Certificate;

Holykell OEM HPT300 Micro 0.5v~4.5v Air Compressor Pressure Sensor

Introduction of HPT300 0.5v~4.5v Air Compressor Pressure Sensor

The HPT300-S series air compressor pressure sensor applied in the engine fuel pressure, hydraulic pressure and gas pressure industries, which is adopt the imported Germany Flush Ceramic piezoresistive technology, and use the military level of printer PCB board, Anti-Jamming enhanced 300%, stability of circuit is above 10 years . 5-10 years long services life design suitable for many industrial and OEM pressure measurement applications

HOLYKELL HPT300 Micro 0.5v~4.5v Air Compressor Pressure Sensor

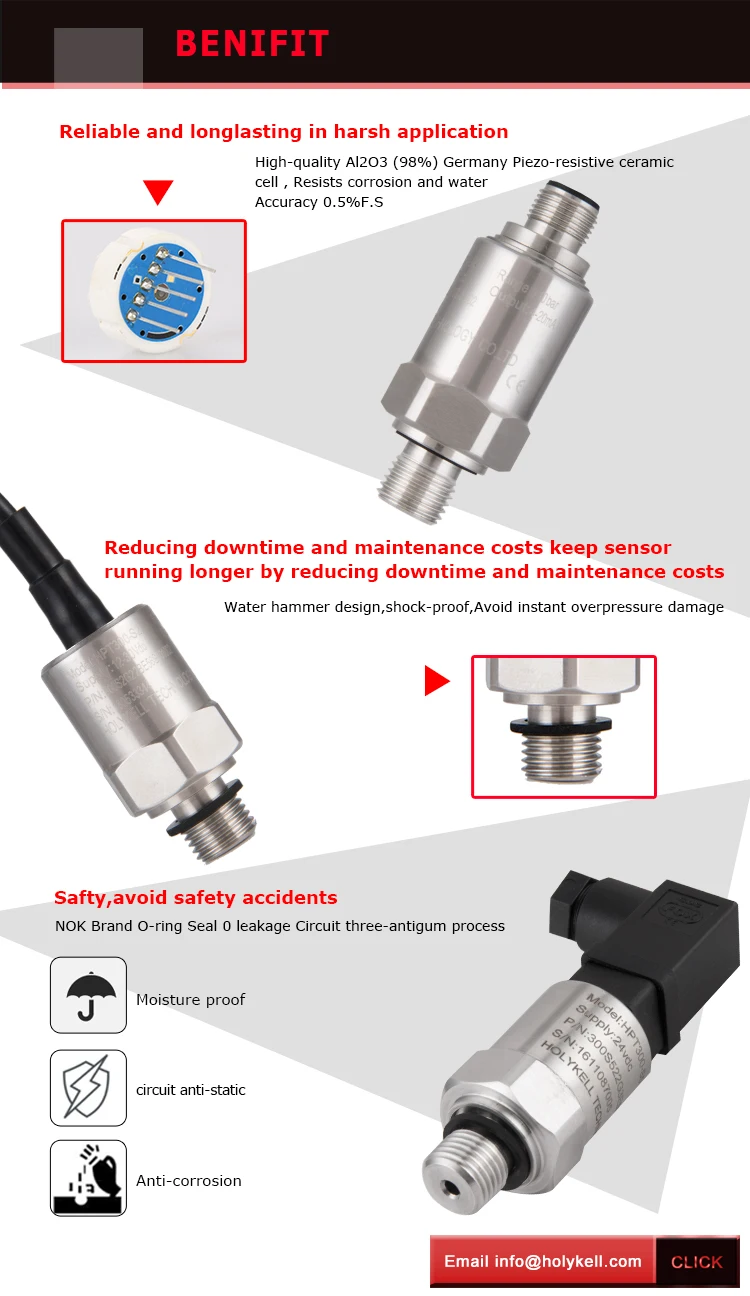

Feature	Advantages	Benefits
Compact ,Rugged and Small SS body	Designed to integrate with a variety of industrial and OEM application	Great cost,Universal type
Germany Piezo-resistive ceramic cell	High-quality Al2O3 (98%)Resists corrosion and water Accuracy 0.5%F.S	Reliable and longlasting in harsh application
Circuit three-antigum process	circuit anti-static,moisturproof,anti-corrosion	Reliable and longlasting in harsh application
NOK Brand O-ring Seal	0 leakage	Safty,avoid safety accidents
Water hammer	shock-proof, Avoid instant overpressure damage	Stability,keep sensor running longer by reducing downtime and maintenance costs
EMI/RFI	interfere with the operation of other electrical products in the environment.	Precision Measurement

Characteristic of HPT300-S 16bar ceramic pressure sensor

a. Low cost compact type

b. Imported Germany technology Ceramic sensors, 5-10 years design

c. Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

d. Linear Amplified Output

e. Automatic temperature compensation -40~80,

Temperature drift Automatic modified linear ≤0.01%FS

f. Superior Long term Stability

g. Excellent Repeat ability/Hysteresis

h. EMI/RFI Rejection

i. Low power consumption

j. 10 million cycle life expectancy

k.Outstanding shock& vibration performance

Company Information

Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of applications.

FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for pressure and level transmitters.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Or contact us directly at (email: sales04 at holykell.com, skype: holykell04), you will get the reply within 12hours, and the quotation will send to you according to your requirements.

Q: How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q. How to order ?

A. In order to recommend you the most suitable pressure sensors or level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. What is your medium? Water, oil or others?

2. Pressure sensors range: 0-50bar, or others?

3. Output signal: 4-20mA, 0-5V, or others?
