Holykell Packard 420ma 0.5-4.5v Ceramic HAVC Air Compressor Water Truck Fuel Oil Brake Pressure Sensor
- 15.50 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Brand Name: | Holykell; | Electronic Connect: | Packard Connector 3 Pins; |
| output: | 0.5-4.5V/4-20mA; | Material: | stainless steel; |
| Supply Ability: | 500000 Piece/Pieces per Month Holykell packard 4-20ma ceramic truck fuel oil brake pressure se; | cable: | PVC; |
| Package Preview: | ; | Place of Origin: | Hunan China; |
| Application: | HAVC oil air water pressure measurement; | Accuracy: | 1%F.S; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram; | pressure range: | 5~50Bar; |
| Model Number: | HPT907; | Customized support: | OEM,ODM; |
| Packaging Detail: | Neutral Carton for Holykell Packard 420ma 0.5-4.5v Ceramic HAVC Air Compressor Water Truck Fuel Oil Brake Pressure Sensor; | Power supply: | 5VDC/10-30VDC; |
| Warranty: | 12 months; | Port: | Guangzhou/Shenzhen; |
| Certification: | CE,FCC; | Thread: | thread 1/4 NPT Male; |
| Temperature: | -10-85 Centigrade (customized); |
Accuracy | 0.5%F.S, 1%F.S |
Pressure range | 0~2bar...100bar optional |
Output | 0.5-4.5V/ 1-5V |
Pressure port | G1/4” Female or 1/4"NPT |
Electronic connector | Packard 3pins |
Power supply | 5VDC/8~25VDC |
Body materials | SUS304 stainless steel |
Working temperature | -30℃~+100℃ |
Storage temperature | -40℃~+85℃ |
Max error | ±3%F.S |

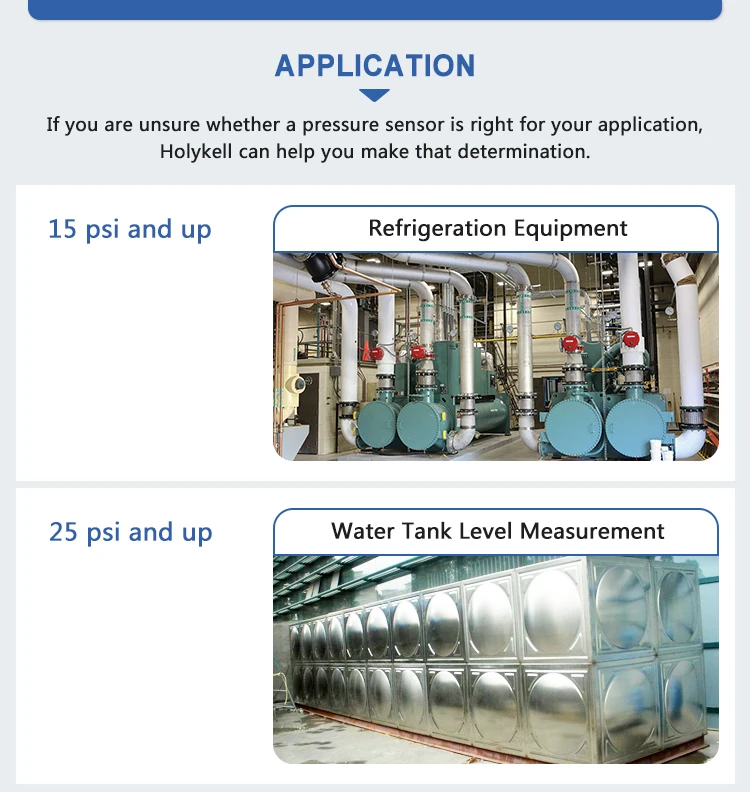

Application
Recommend Products
Why Choose Us
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
