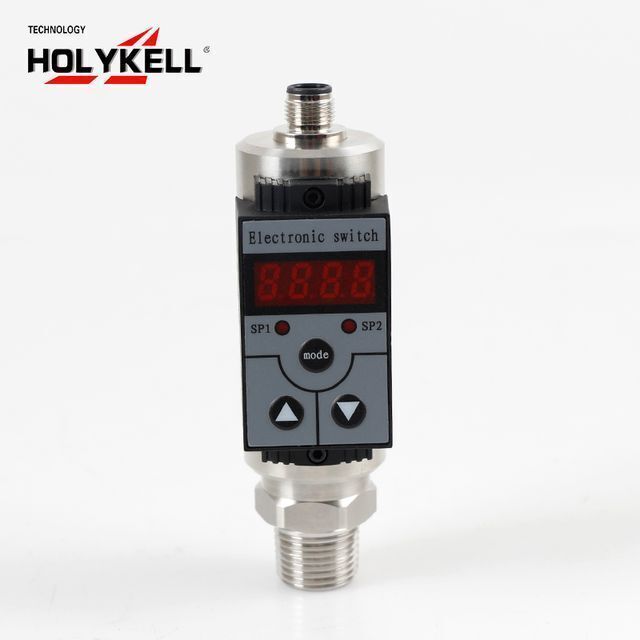

Holykell NPN PNP output adjustable digital pressure switch for Industrial
- 129.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Power Supply: | 12~36 V DC; | Place of Origin: | Hunan China; |
| Burst Pressure: | Burst Pressure; | Max. Working Pressure: | 100MPa; |
| Payment Terms: | T/T,Western Union,MoneyGram; | Output: | 4-20mA; |
| Brand Name: | Holykell; | Response time: | ≤5ms; |
| Pressure connect port: | G1/4''male, G1/2''male, 1/8''NPT male, 1/4''NPT male (by customized); | Supply Ability: | 500000 Piece/Pieces per Month Holykell NPN PNP output adjustable digital pressure switch for I; |
| Max. Voltage: | 36VDC; | Whether the smart: | Yes; |
| Pressure Range: | -1 Bar-1 Bar; 0-0.1 Bar.....1000 Bar; | Max. Current: | 20mA; |
| Model Number: | PS300; | Accuracy: | 0.25%F.S, 0.5%F.S; |
| Package Preview: | ; | Port: | Guangzhou/Shenzhen; |
| Switch type: | PNP, NPN optional; | Certification: | CE/ FCC; |
| Safe Overload: | 150% F.S.(standard); | Mechanical vibration: | ±20g; |
| Packaging Detail: | Neutral Carton for Holykell NPN PNP output adjustable digital pressure switch for Industrial; |
Pressure Range | -1 Bar-1 Bar; 0-0.1 Bar.....1000 Bar |
Accuracy | ±0.25%F.S， ±0.5%F.S |
Output | 4~20mA or RS485 |
Pressure connect port | G1/4’’male, G1/2’’male |
Safe Overload | 150% F.S.(standard) |
Burst Pressure | 300% F.S. (standard) |
Display Units Accuracy | ≤ ±0.1%F.S |
Response time | ≤5ms |
Pressure Type | Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional |
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
