High Quality Aluminum Alloy Pressure Switch 604G1 604G2 604G5 604GM1 604GM2 Products from Shanghai Qiyi Co., Ltd.

Product Details

Sales unit:	Single product	pack:	carton
model:	604G1 604G2 604G5 604GM1 604GM2	Certification:	CCC
Packaging details:	carton	brand:	CCS
Place of origin:	China Shanghai	Health status:	100% new
Material:	Aluminum alloy	Single piece packaging size:	20X10X10cm
product name:	Pressure Switch	Gross weight of single piece:	2.500kg

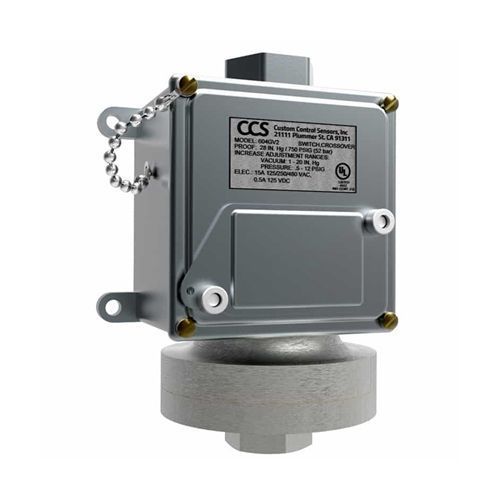

High quality pressure switch aluminum alloy 604G1 604G2 604G5 604GM1 604GM2

Product Description

The design of the CCS pressure switch adopts a patented double snap structure. CCS pressure, temperature switch and action values are accurate, with high repeatability, good response in the micro-pressure area, no drift, impact resistance, vibration resistance, and shaking resistance. Basically not affected by temperature factors. The CCS pressure switch series is complete, with high, medium, low and micro pressure action ranges, as well as universal, enhanced and compact CCS pressure and temperature switches, which have been widely used in petrochemical, electric power, machinery and other industrial fields. The action point is stable and will not be affected by shock, vibration, temperature changes or other environmental conditions. There will be no contact jitter caused by pressure fluctuations, and the on or off status is clear and clear. Unaffected by pump shock and contact point vibration fatigue. Long life, high stability and good repeatability

aspect

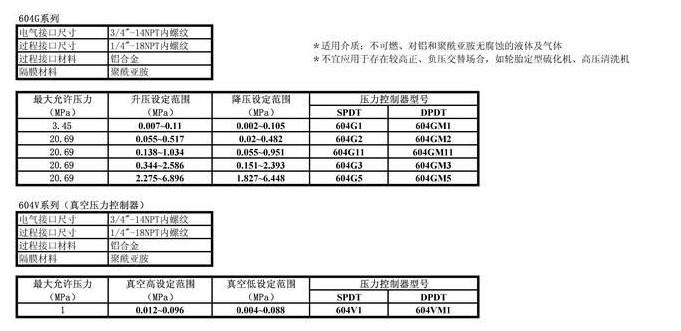

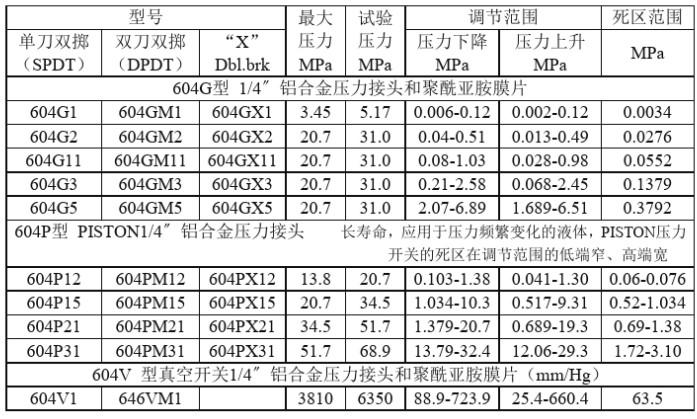

Specification

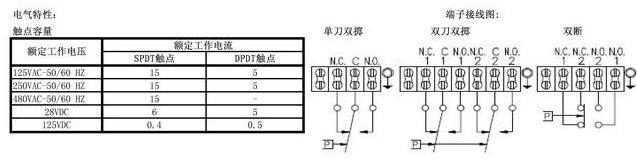

connect

Installation Notes

The pressure switch itself cannot be installed directly on high temperature pipelines. The pressure should be transmitted through the pressure pipe to the pressure switch. The laying slope of the construction electricity bill should be increased to the pressure switch itself to facilitate the drainage of liquids that may enter the cable trough.
