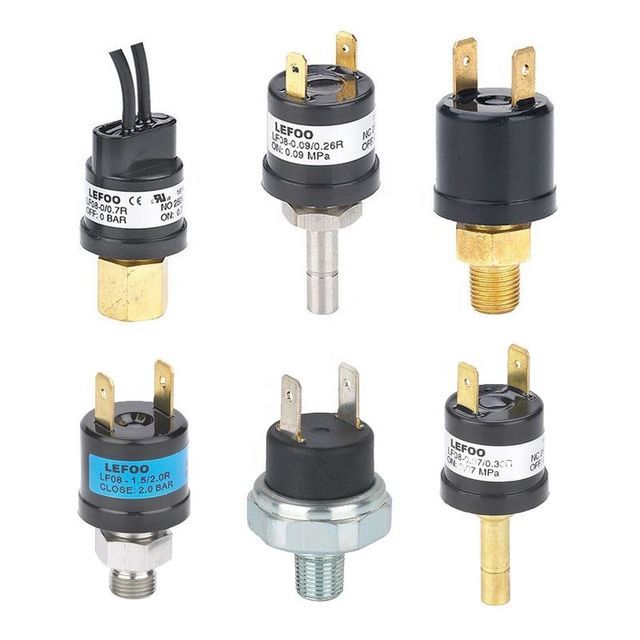

LEFOO LF08 High and low voltage control switch normally closed for HVAC/R

Supplier: Zhejiang Lefoo Controls Co., Ltd.
Region: Zhejiang, China
Contact: Mr Daniel Zhang
Price: $10.00 / 5 - 49 pieces
$6.00 / 50 - 499 pieces
$5.50 / 500 - 999 pieces
$5.00 / >=1000 pieces
Min. Order: 5 pieces

Click here to contact

Product details

maximum. Work pressure:	5000psi	Burst pressure:	5000psi
Is it smart:	No	model:	LF08-20200526
application:	Refrigeration system, water dispenser, air conditioner	connect:	1/8NPT, 1/4NPT, G1/8, G1/4
Origin:	Zhejiang, China	Rated voltage:	120VAC/240VAC
brand:	Love	circuit:	SPST-NC, SPST-NO, SPDT
maximum. current:	40.2A	Substrate:	brass, galvanized steel
media:	Harmless gas, air, water, engine oil, transmission oil	Packaging Details:	LEFOO brand carton
maximum. Voltage:	240Vac	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Package preview:		Supply capacity:	50000 pieces per month
port:	Shanghai/Ningbo/Guangzhou port

Product Description

thisLF08Switches are fixed set point, factory calibrated pressure switches. It is self-resetting and can be a normally open or normally closed contact. All metal wetted parts make the LF08 switch compatible with a wide variety of chemicals in liquid or gaseous form.
It offers many types of electrical terminals from push-in terminals in different sizes and styles to wire leads
A range of standard industrial connectors.
In-house machining capabilities allow Lefoo to offer a wide range of pressure fittings, from different thread types and sizes to units with internal bleeders and copper tubing for sawing operations.

Typical Applications: Air Conditioning Units (Residential, Commercial and Automotive)
refrigeration
Carbon dioxide air conditioning, carbon dioxide refrigeration
heat pump
High pressure cut off, low pressure cut off
Air Brakes (Trucks and Commercial Equipment)
fuel pressure monitoring
engine control
agricultural equipment
industrial control

Marine engines/equipment.

number	circuit	Substrate	connect	Electrical connections
1	SPST-NC	brass	1/8 NPT	6.35×0.8
2	SPST-NO	galvanized steel	1/4 NPT	4.8×0.8
3	SPDT	/	R1/8	18AWG wire
4	/	/	R1/4	/
5	/	/	G1/8	/
6	/	/	G1/4	/
7	/	/	1/4 copper pipe	/
8	/	/	7/16UNF male	/
9	/	/	7/16UNF Female	/
10	/	/	7/16UNF internal thread with deflector	/

Specification

Model	LF08
media	Air, water, motor, oil, transmission oil, hydrocarbon medium, refrigerant
pressure range/ tolerant/ withstand voltage	pressure range	tolerant	withstand voltage
		0.2~6bar (low pressure)	±0.5bar	15 bar
		6~10bar	±0.7bar	35 bar
		11~20bar	±1bar	45 bar
		21~30bar	±1.5bar
		31~45bar	±1.5bar
burst pressure	5000psi
range of working temperature	Ambient temperature: low pressure: -30~65℃, high pressure: -35~120℃ Medium temperature: -50~120℃
switch type	SPST (NC or NO); SPDT
electrical rating	120Vac 6FLA,40.2LRA;240Vac 4FLA,26LRA 120/240Vac 375VA;36Vdc 3A
endurance	100000

Conversion: 1bar=14.5psi 1MPa=10bar
