LF32 air differential pressure controller and visible calibrate sensitive air sense pressure switch

Supplier: Zhejiang Lefoo Controls Co., Ltd.
Region: Zhejiang, China
Contact: Mr Daniel Zhang
Price: $6.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Pressure setting range:	20~200pa;30~300pa; 40~400pa; 50~500pa and so on.;	Supply Ability:	45000.0 Piece/Pieces per Month;
Power:	consult the seller;	Temperature of Media:	Normal Temperature;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Port Size:	consult the seller;
Contact arrangement:	SPDT;	Brand Name:	LEFOO;
Delivery time:	Normally 15 working days;	Structure:	control;
Packaging Detail:	Packed in export carton.;	Model Number:	LF32;
Working temperature:	-40℃~+85℃;	Electrical rating:	1.5A(0.4A)/250V;
Product name:	LF32 pressure switch;	Media:	air, non-combustible and non-aggresive gass,air, non-combustible and non-aggresive gass;
Port:	Ningbo or Shanghai;	Protection degree:	IP54(with cover); IP00(without cover);
Place of Origin:	Zhejiang China;	Installation methad:	vertical installation;
Type:	Washing Machine Valves,Pressure Vacuum Breaker,Air & Vacuum Release Valves;	Application:	HVAC system,General;

Product Description

LF32 10pa differential ajustable HVAC pressure switch with cover

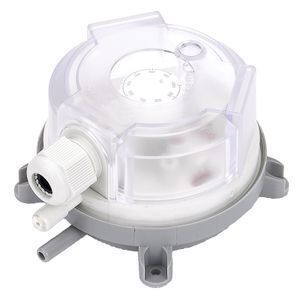

1. Product Pictures:

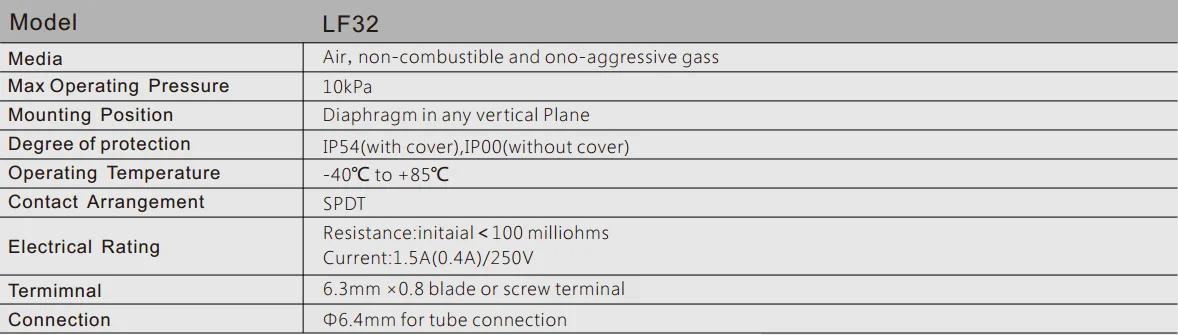

2. Product Specifications:

The LF32 is an adjustable differential pressure switch capable of detecting miniscule changes in pressure due to the size and proven design. The switch set point or switching point can be field adjustable without the need of a manometer by simply using the adjust ment knob and the built in calibrated visual scale. This switch is equipped a clear cover that not only protects the adjustment knob to be move involuntary but also provides class IP54 protection.
