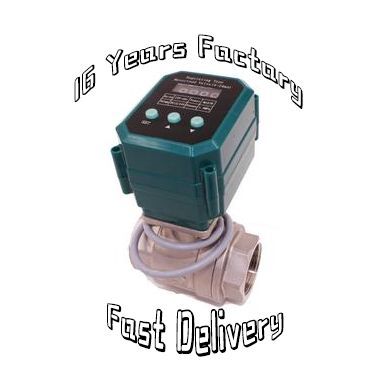

4-20mA electric actuator provides modulating water flow control 2/3 way ball valve with position feedback

Supplier: Tianjin Tianfei High-Tech Valve Co., Ltd.
Region: Tianjin, China
Contact: Ms Xiaojing Wang
Price: $25.90 / 1 - 19 pieces
$23.90 / 20 - 99 pieces
$19.90 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

port:	Tianjin harbor	structure:	ball
product name:	water valve	Customization support:	OEM,ODM,OBM
media:	water/oil/gas	model:	CTF-001-4-20mA
Output torque:	Maximum 10NM	Supply capacity:	1000 units per day
Model:	CTF-001-4-20mA	Warranty:	2 years
current:	<200mA	Medium temperature:	low temperature, medium temperature, normal temperature
Medium temperature:	0-90℃	Certificate:	CE/ISO/RoHS
application:	General	brand:	Chow Tai Fook
Packaging Details:	Carton/plastic wrap	Port size:	DN8-DN32 / 1/4''-1/1/4''
Standard or non-standard:	standard	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Package preview:		On/off time:	<30 seconds
strength:	electric/manual	type:	ball valve
pressure:	Max1.6MPa	Origin:	Tianjing, China
Voltage:	DC12V / DC24V

Product Description

1. The embedded CPU is used to process the input signal, and the valve can be opened at any angle to achieve consistent flow control.

2. The output torque is as high as 10NM, and the shape is smart. CTF 001 is an intermediate product between micro valves and industrial valves. So it is not only suitable for residential light duty tasks, but also able to work in industrial heavy duty situations.

3. Floating ball structure, simple structure and good sealing performance.

4. Limit switch design, accurate positioning and high consistency.

5. The connection between the actuator and the valve complies with ISO5211. It is supplied with flanges - F03 and F05 - which can be adapted to different valves.

6. A variety of materials - brass, stainless steel and PVC - to meet the needs of different working scenarios.

7. IP65 shell, can be used in relatively humid environment.

8. For standard on/off version with manual override.

product Model	rated Voltage	Working current	output torque	on/off time	control method
CTF001 modulation type	DC12V DC24V	<200mA	Maximum 10NM	<30s	4-20 mA
work pressure	strength	Medium temperature	size	degree of protection	Supervision
Max1.6Mpa	<5W	0-90℃	DN8-32	IP65	manual and electric
