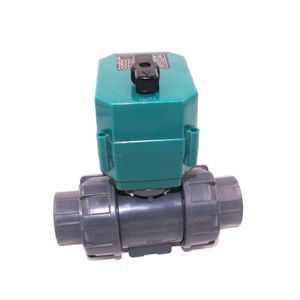

CTF-001 DN32 DN25 UPVC double union thread DC24V CR04 normally close motorized PVC plastic ball valve

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Place of Origin:	Tianjin China (Mainland);
Structure:	Ball;	Material:	UPVC;
Application:	General;	Model Number:	CTF-001 plastic ball valve;
Certification:	CE,ISO;	Wiring Diagram:	CR01,CR02,CR03,CR04,CR05 or with signal feedback;
Torque:	10nm;	Pressure:	Max 1.6mpa;
Voltage:	DC3-6V,DC12V,DC24V,ADC9-24V,AC85-265V;	Material:	brass,ss304,UPVC;
Port:	reduced port, full port;	Opening time:	12s;
Packaging Detail:	Carton Box for CTF-001 DN32 DN25 UPVC double union thread DC24V CR04 normally close motorized PVC plastic ball valve;	Temperature of Media:	Max 50 degree;
Power:	Electric;	Port:	Tianjin port;
Media:	Water;	End Connection:	Double union;
Port Size:	DN15--DN50;	Thread Standard:	Thread or socket,glue;
Product name:	thread DC24V CR04 normally close motorized PVC plastic ball valve;	Brand Name:	TF;
Supply Ability:	2000 Piece/Pieces per Month;

Product Description

1.Simple shape, small size, all-metal gear driving, reliable performance, large torque

up to 15NM, is the interface between mini and industrial-grade valve, the valve sealed

with float structure, no dripping and suitable for heavy dirt and long-term non-action occasions.

2.Electrical and mechanical double limit, accurate positioning, high consistency.

3.The connection of actuator and valve belong to ISO5211 standard, flange type

F03, F05,convenience for user choose valve body. And supply brass, stainless steel

ball valve and PVC ball valve, IP65 enclosure, can be used in a relatively humid environment.

4.Position indicator and manual override function (suitable for sudden power failure

or accident emergency switch )

1. University LABS, automotive laboratories.

2. Drug production, diesel fuel saving, etc.

3. Small equipment such as water saving, automatic control system and industrial

automatic control in colleges and universities.

4. Agricultural irrigation, environmental protection, water supply and drainage, water treatment works.

5. Water-saving appliances, drinking water equipment, etc.

Product model	Rated voltage	Output torque	Open/close time	Control model	Working pressure	Special function
CTF001	DC3-6V DC12V A/DC9-24V AC220V AC85-265V	Max10NM	<12s	CR01 CR02 CR03 CR04 CR05	Max1.6Mpa	CR01 CR02 CR03 CR03 CR04(with singal feedback)
	Motor voltage	Power	Working current	Medium temperature	Size	IP Garde
	5V	Max18W	<500mA	0-90℃	DN8-50 Two-way DN15-25 Three-way	IP65
	12V	Max22W	<300mA
	24V	Max22W	<100mA
