4800E electromagnetic water flow meters 6" flowmeter details
Measure accuracy:±0.2%,±0.5%;Ambient temperature:-25℃~60℃;
Output signal:4~20mA /Pulse/MODBUS/HART;Type:Flow Sensors;
Port:Shenzhen;Place of Origin:Hunan, China;
Brand Name:Holykell;Protection class:IP65,IP67,IP68 Customized;
Packaging Detail:standard export packing, no damage to product 4800E electromagnetic water flow meters 6" flowmeter;Power supply:AC220V or DC24V;
Pipe Size:DN10-DN2000;Sensor connection:Flanged;threaded;clamping connection;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Flow range:0.3~15m/s;
Supply Ability:5000 Pieces per Month electromagnetic water flow meters;Lining material:PTFE,neoprene,polyurethane rubber,rubber acid;
Model Number:4800;

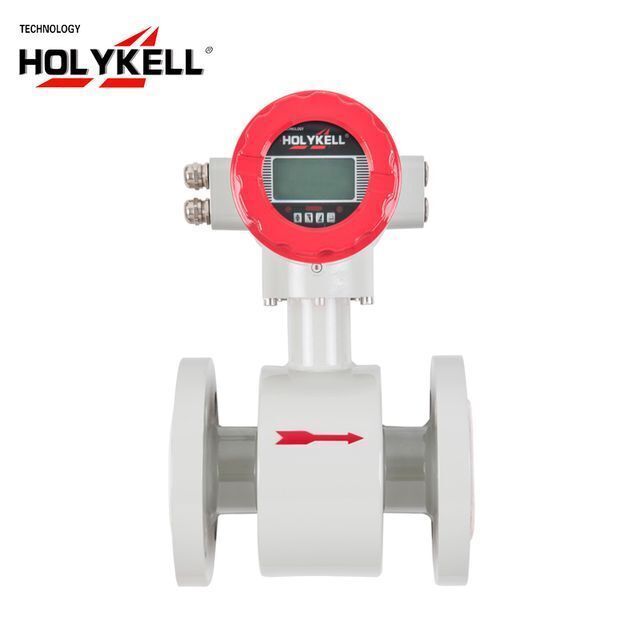

4800E electromagnetic water flow meters 6" flowmeter




Why Choose and trust HOLYKELL 4800E 6" flowmeter?

You benefits from:

Factory experience:

More than 17 years of experience in Level sensor and water flow meters for cement industry.
large stock:

within 24 hours delivery for standard specifications.
Supply ability:

At least 50000 pcs per Month.
Supply area:

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa)

Certificate:

CE, RoHS, ATEX audited by TUV Rheinland and ECM

OEM/ODM :  Accept.



You Credit Guarantee:

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.



  • Trade Assurance: 558 Transactions, total amount is above $ USD 380,000+ (2018.01.01-2018.06.01)
  • Near 50% buyers found water level sensor and contact us, Holykell in ALIBABA
  • View Holykell 6000+, Send inquiry 300+, Quote 400+ (half of 2017 years)

Holykell 4800 Series Electromagnetic Flow meters are fully comprehensive (all intelligence) which is developed in using the advanced technology from domestic and foreign countries and consisted of 4800-type flow sensor and 4800-type smart converter supporting. It is widely used in water (tap water, industrial water, and sewage treatment) metallurgy, chemical, textile, food, paper, power, pharmaceutical and other industrial areas.



What is the advantages of 4800E electromagnetic 6" flowmeter?

1. High Definition LCD display with backlight.

    124x48 Array crystal display which can show instantaneous, cumulative flow, unit at the same time, Support Chinese or English menu operation

2. Full-digital processing, high noise resistance and reliable measurement

3. 16 bits embedded microprocessor

    High arithmetic speed, high accuracy, dual frequency excitation technology, synchronous sampling technology, input protecting technology and grounding technology to resist interference.

4. High precision 0.5%F.S measurement is not affected by fluid density, viscosity ,temperature,pressure the influence for the conductivity changes .

5. After power outage, daily total, monthly total data recording function,To calculate the leakage flow automatically ,Circular recording 2050 dates,Free on-site maintenance

6. Double layer protection technique:360 ° spray paint, Polishing technology wear-resisting, anti-rust durable

7. Header board:Using a synthetic version, the integration is high,antioxidant,long life

8.  3 electrode: Ground electrode structure, eliminate the influence of electrical noise, provide measurement precision effectively

What's the Spec Our 4800E 6" water flowmeter?

Model Parameter:

4800E electromagnetic water flow meters 6" flowmeter

Caliber

DN15 - DN1000

Medium temperature

≤120°C

Measuring medium

 Medium conductivity>5μs/cm ;Water≥20μs/cm

Range

0.3m/s~15m/s

Accuracy

±0.2%,±0.5%

Working pressure

1.6MPa (special pressure build)

Output signal

4 ~ 20mADC / RS-485 / HART protocol

Power supply

standard 220VAC, 24VDC

Converter

Integrated Segregate

Electrode type

standard fixed type

Connecting flange

in line with international standards of GB9116-88 and DIN2501 (BS4505)

Selection of materials

flange connection material: stainless steel (1Cr18Ni9Ti)

Explosion-proof

normal ,flameproof(dⅡCT4-CT6),Intrinsically safety(ExiaⅡCT4)

Protection class

IP65,IP68







What is The Application of electromagnetic water flow meters?

4800E Electromagnetic water flow meter is the volume flow of liquid and solid two-phase fluid (It is used to measure the conductivity which is greater (bigger) than 5μs/cm of closed pipeline, It is widely used in water (tap water, industrial water, and sewage treatment) metallurgy, chemical, textile, food, paper, power, pharmaceutical and other industrial areas



Company Information

Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and

distribution. The company has a purification plant of 5000m2, an annual output of 1

million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have

been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of

applications. Welcome to your inquiry.

FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for 4800E DN150 electromagnetic water flow meters for agricultural monitoring system.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Or contact us directly at (email: sales04 at holykell.com, skype: holykell04, whatsapp: +86-18684725345), you will get the reply within 12hours, and the quotation will send to you according to your requirements.

Q: How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q. How to order ?

A. In order to recommend you the most suitable flow meter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. What is your medium? Water ,oil or others.

2. Pipe diameter: DN50mm, DN100mm optional

3. Output signal:4-20mA, RS485 or others



above is detail introduction of 4800E electromagnetic water flow meters 6" flowmeter, include price, model, picture and supplier of 4800E electromagnetic water flow meters 6" flowmeter.
