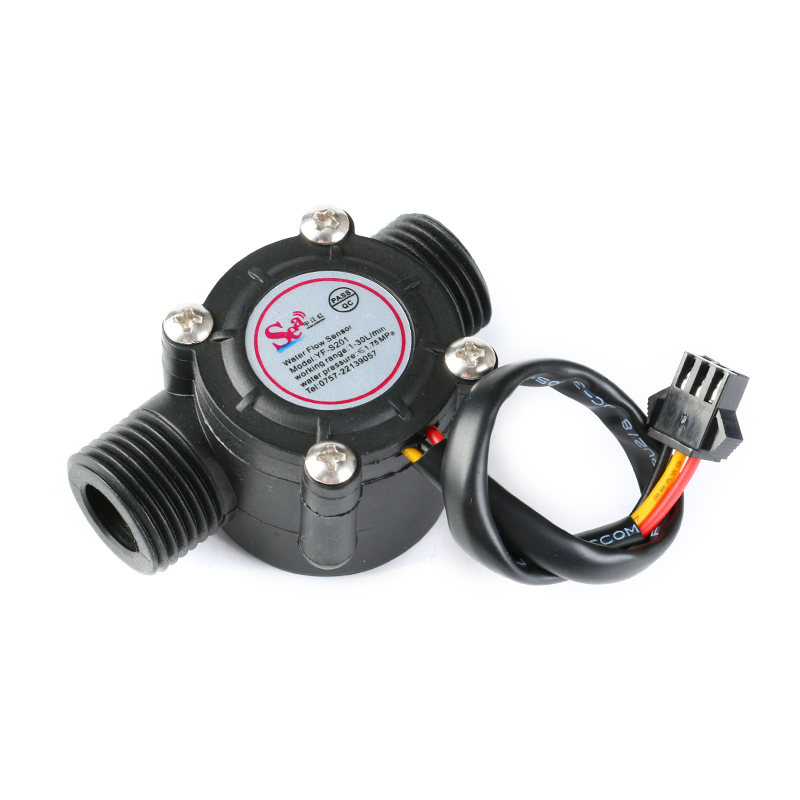

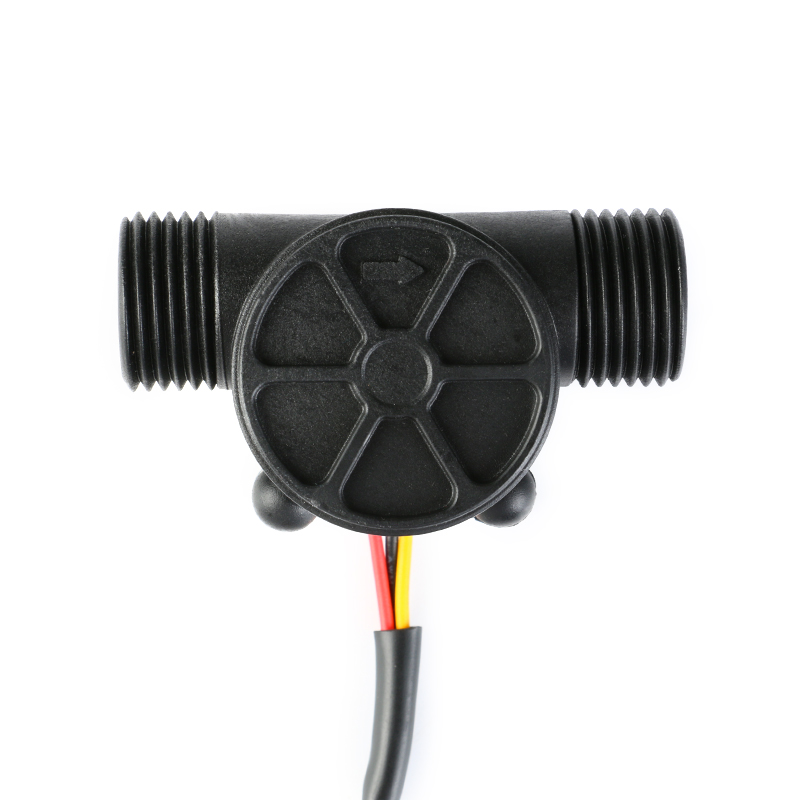

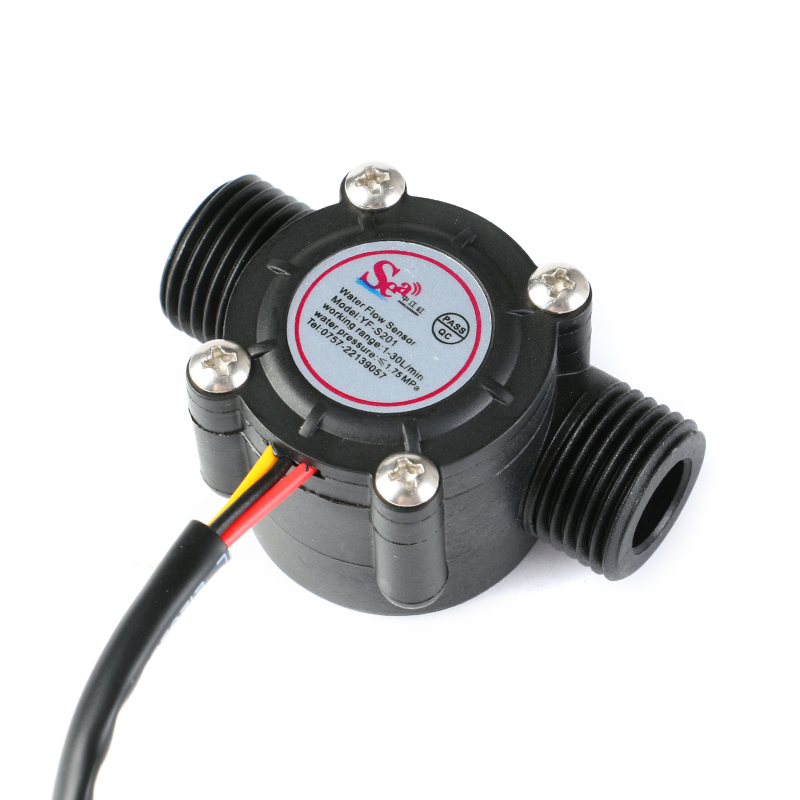

YF-S201 1-30L/min Water Flow Sensor 3Y Hall Flow Sensor 1/2" 2.0MPa for Water Heater Water Dispenser

YF-S201 1-30L/min 3Y Water Flow Sensor Flow Meter Hall Flow Sensor 1/2" 2.0MPa For Water Heater Water Dispenser

feature:

• Mainly used for testing water and water cooling system

• Applications: water heaters, credit card machines, automatic water vending machines, flow measurement devices

• The impeller is inlaid with stainless steel beads, which is wear-resistant.

• The structure of the sealing ring adopts force from top to bottom to prevent water leakage

• The hall element is imported, the line is filled with waterproof sealing rubber ring, and the imported waterproof silica gel strengthens waterproof

• All raw materials comply withROHS Directivestandard

• High amplitude: ≥4.6V

• Low amplitude: ≤0.5V

• Electric strength: 1250V/min

• Insulation resistance: ≥100MΩ

• Hydrostatic pressure test: ≤2.0Mpa

Specification:

• Minimum rated working voltage: DC4.5 5V-24V

• Maximum working current: 15mA (DC 5V)

• Working voltage range: DC 5~18V

• Load capacity: ≤10mA (DC 5V)

• Operating temperature: ≤80°C

• Working humidity range: 35%~90%RH (no frost)

• Allowable pressure: pressure 2.0Mpa

• Temperature: -25 ~ +80°C

• External thread: 1/2"

• Outer diameter: 20mm

• Air inlet diameter: 9mm

• Outlet diameter: 12mm

Package Included:1 x Water Flow Sensor

notes:Please allow 1-5mm differences due to manual measurement.
